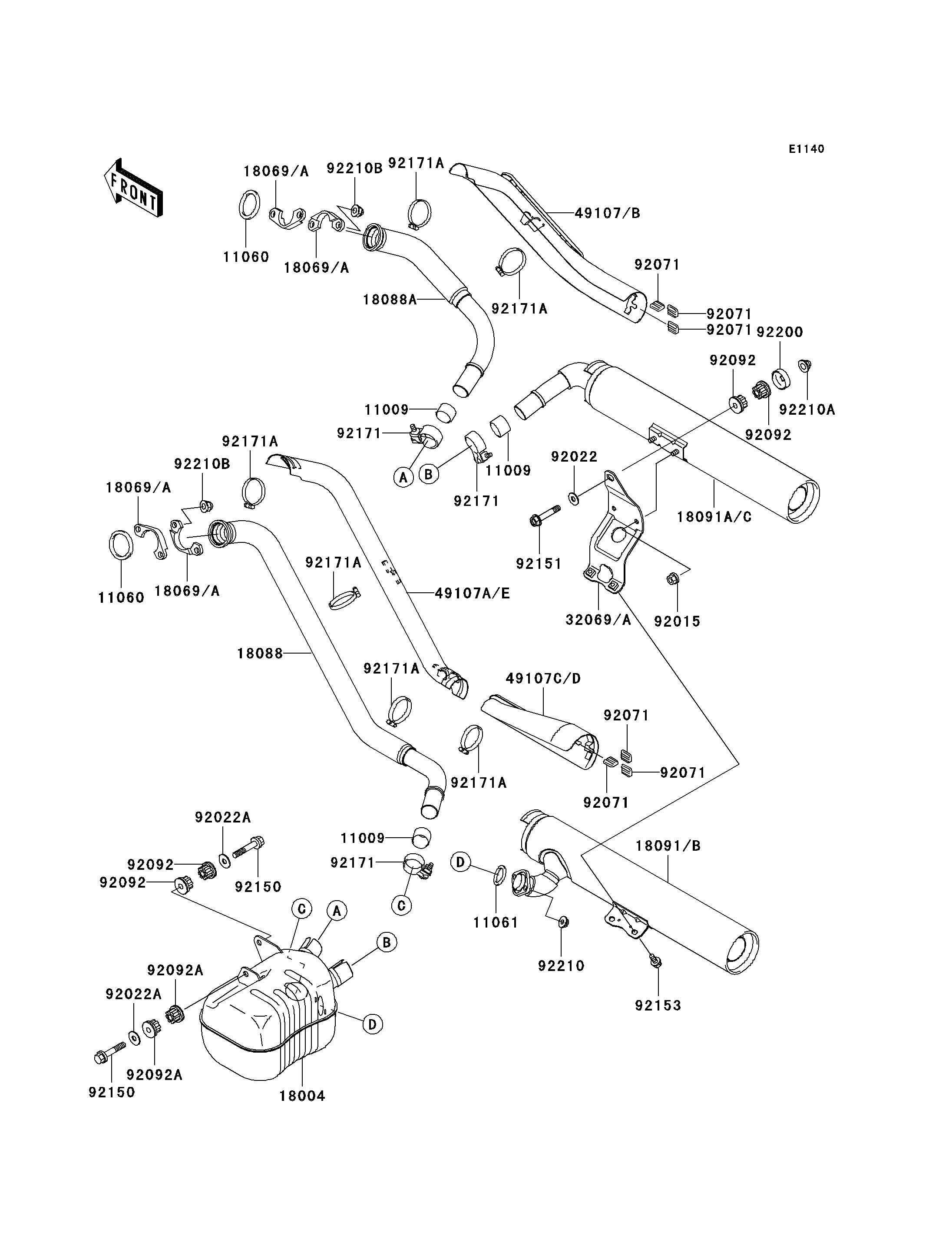

2006 Vulcan 1600 Mean Streak - Muffler(s)
11009
11009
11009
11009
11009
11009
11060
11060
11060
11060
11061
11061
18004
18004
18069A
18069A
18069A
18069A
18069A
18069A
18069A
18069A
18088
18088
18088A
18088A
18091
18091
18091A
18091A
32069
32069
49107
49107
49107D
49107D
49107E
49107E
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92071
92071
92071
92071
92071
92071
92071
92071
92071
92071
92071
92071
92092
92092
92092
92092
92092
92092
92092
92092
92092A
92092A
92092A
92092A
92150
92150
92150
92150
92151
92151
92153
92153
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92200
92200
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST MANIFOLD | 11009 | 11009-1668 | 3 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1119 | 2 | ||
GASKET,EXHAUST PIPE | 11061 | 11061-1069 | 1 | ||
CHAMBER-PREMUFFLER | 18004 | 18004-0003 | 1 | ||
HOLDER-EXHAUST PIPE | 18069A | 18069-1161 | 4 | ||
PIPE-EXHAUST,FR | 18088 | 18088-1130 | 1 | ||
PIPE-EXHAUST,RR | 18088A | 18088-1131 | 1 | ||
BODY-COMP-MUFFLER,LWR | 18091 | 18091-0070 | 1 | ||
BODY-COMP-MUFFLER | 18091A | 18091-0145 | 1 | ||
BRACKET-MUFFLER | 32069 | 32069-0084 | 1 | ||
COVER-EXHAUST PIPE,RR | 49107 | 49107-0023 | 1 | ||
COVER-EXHAUST PIPE | 49107D | 49107-1202 | 1 | ||
COVER-EXHAUST PIPE,FR | 49107E | 49107-1216 | 1 | ||
NUT,8MM | 92015 | 92015-1936 | 2 | ||
WASHER,10.5X26X2.3 | 92022 | 92022-044 | 1 | ||
WASHER,10.5X30X2.3,BLACK | 92022A | 92022-1302 | 2 | ||
GROMMET | 92071 | 92071-1270 | 6 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 4 | ||
BUSHING-RUBBER | 92092A | 92092-1081 | 2 | ||
BOLT,10X55 | 92150 | 92150-1749 | 2 | ||
BOLT,FLANGED,10X57 | 92151 | 92151-1332 | 1 | ||
BOLT,FLANGED,8X14 | 92153 | 92153-0387 | 2 | ||
CLAMP | 92171 | 92171-0084 | 3 | ||
CLAMP | 92171A | 92171-0137 | 6 | ||
WASHER,10.5X36X2 | 92200 | 92200-1664 | 1 | ||
NUT,8MM | 92210 | 92210-0076 | 2 | ||
NUT,CAP,10MM | 92210A | 92210-1121 | 1 | ||
NUT,CAP,8MM | 92210B | 92210-1132 | 4 |
