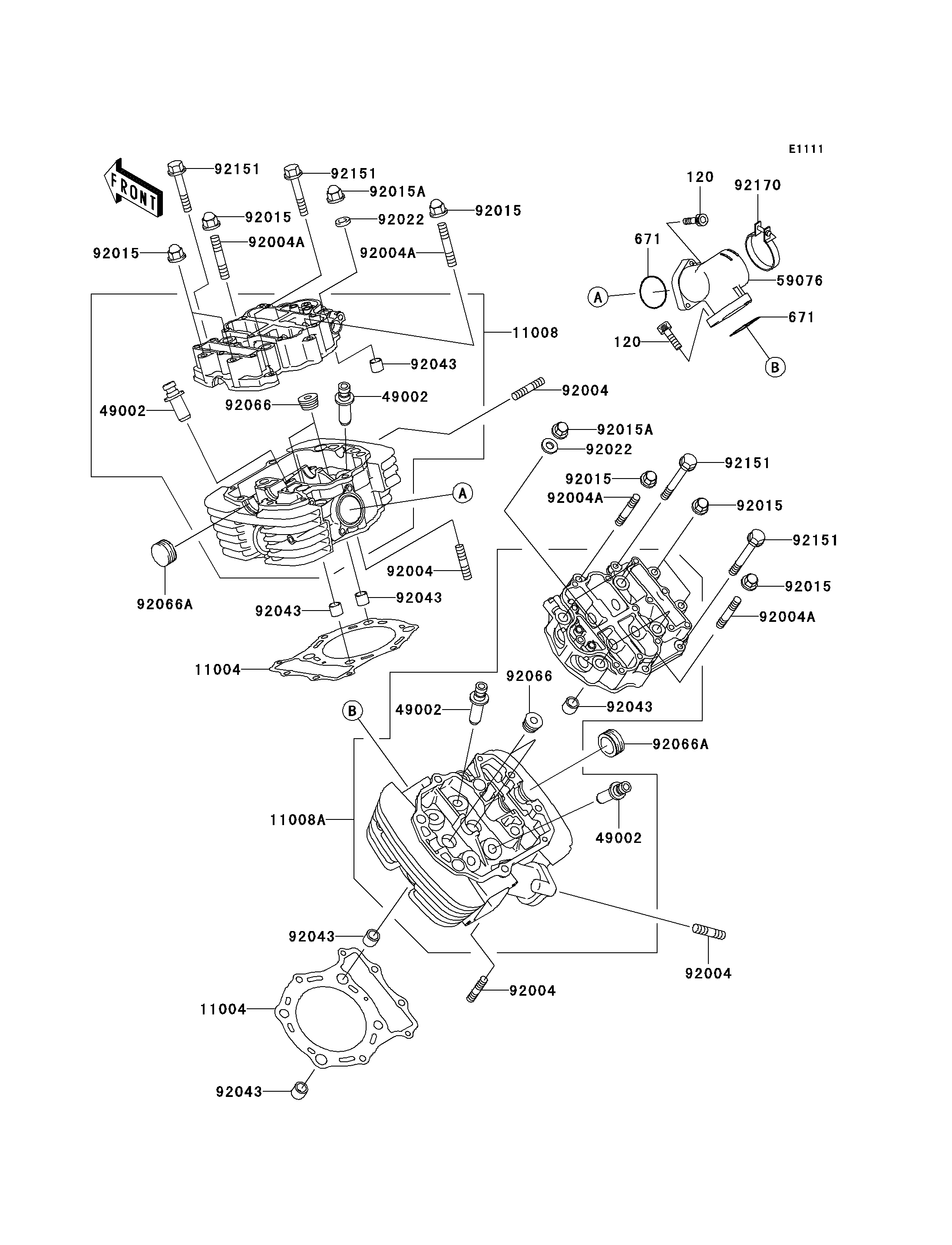

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120Z0620 4
O RING 671 671E2540 2
GASKET-HEAD 11004 11004-1334 2
HEAD-COMP-CYLINDER,FR 11008 11008-1338 1
HEAD-COMP-CYLINDER,RR 11008A 11008-1339 1
GUIDE-VALVE 49002 49002-1088 AR
MANIFOLD-INTAKE 59076 59076-1105 1
STUD,8X25 92004 92004-1214 8
STUD,8X46.5 92004A 92004-1224 4
NUT,FLANGED,8MM 92015 92015-1406 8
NUT,12MM 92015A 92015-1991 8
WASHER,12.3X25X3.2 92022 92022-1862 8
PIN,13X16X14 92043 92043-1608 8
PLUG,PT1/2X12.5 92066 92066-1253 4
PLUG 92066A 92066-1442 2
BOLT,6X115 92151 92151-1058 4
CLAMP 92170 92170-1644 1
