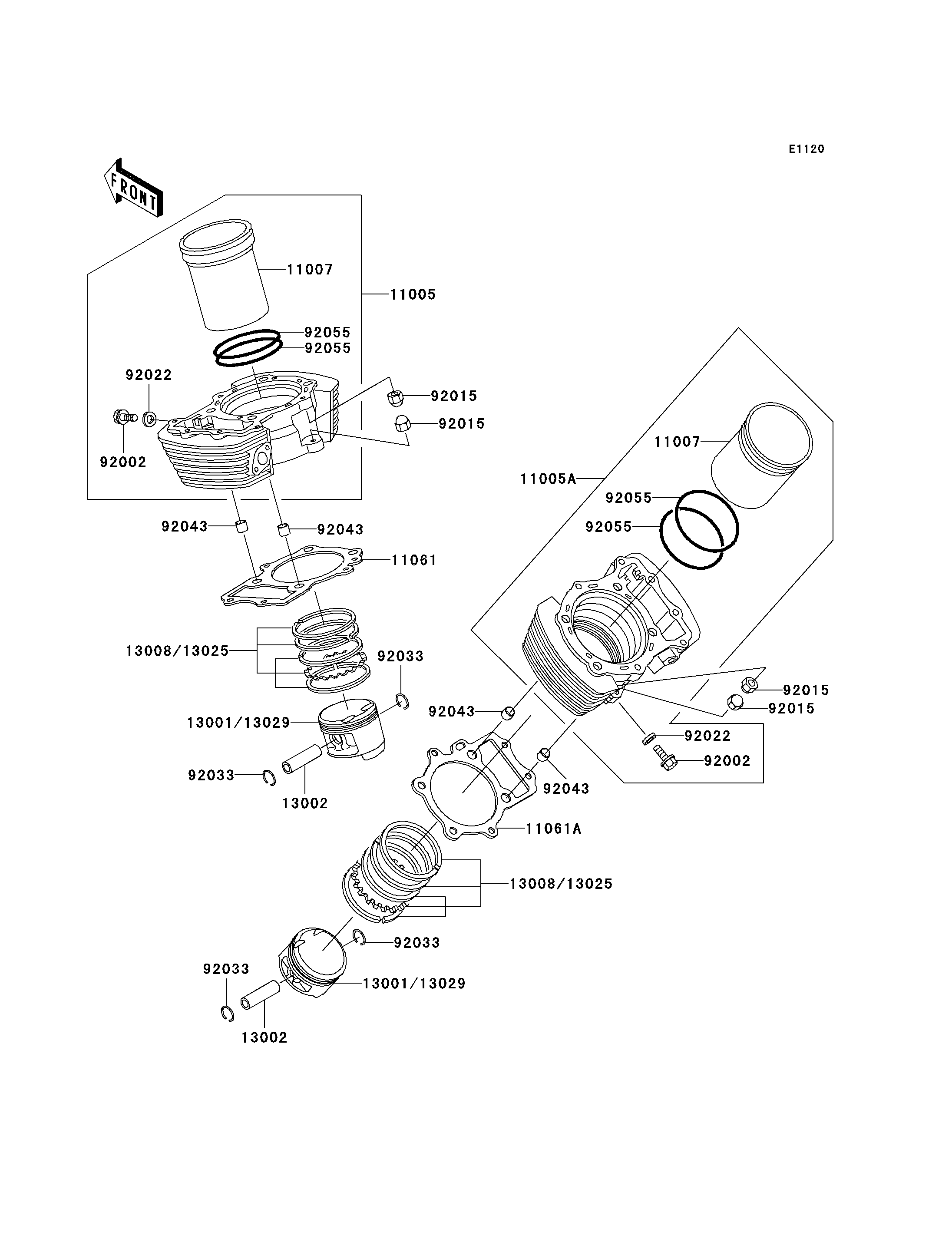

1999 Vulcan 1500 Classic - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
11005
11005A
11007
11007
11061
11061A
13001
13001
13002
13002
13008
13008
13025
13025
13029
13029
92002
92002
92015
92015
92015
92015
92022
92022
92033
92033
92033
92033
92043
92043
92043
92043
92055
92055
92055
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE,FR 11005 11005-1863 1
CYLINDER-ENGINE,RR 11005A 11005-1865 1
LINER-CYLINDER 11007 11007-1097 2
GASKET,CYLINDER BASE,FR 11061 11061-1083 1
GASKET,CYLINDER BASE,RR 11061A 11061-1084 1
PISTON-ENGINE,STD 13001 13001-1542 2
PIN-PISTON 13002 13002-1107 2
RING-SET-PISTON,STD 13008 13008-1172 2
RING-SET-PISTON L,O/S 0.50 13025 13025-1081 AR
PISTON-ENGINE L,O/S 0.50 13029 13029-1233 AR
BOLT,6X12 92002 92002-1569 2
NUT,CAP,8MM 92015 92015-1370 8
WASHER,6.1X12X1 92022 92022-077 2
RING-SNAP 92033 92033-1226 4
PIN,13X16X14 92043 92043-1608 4
RING-O,110.5X2.5 92055 92055-1371 4
