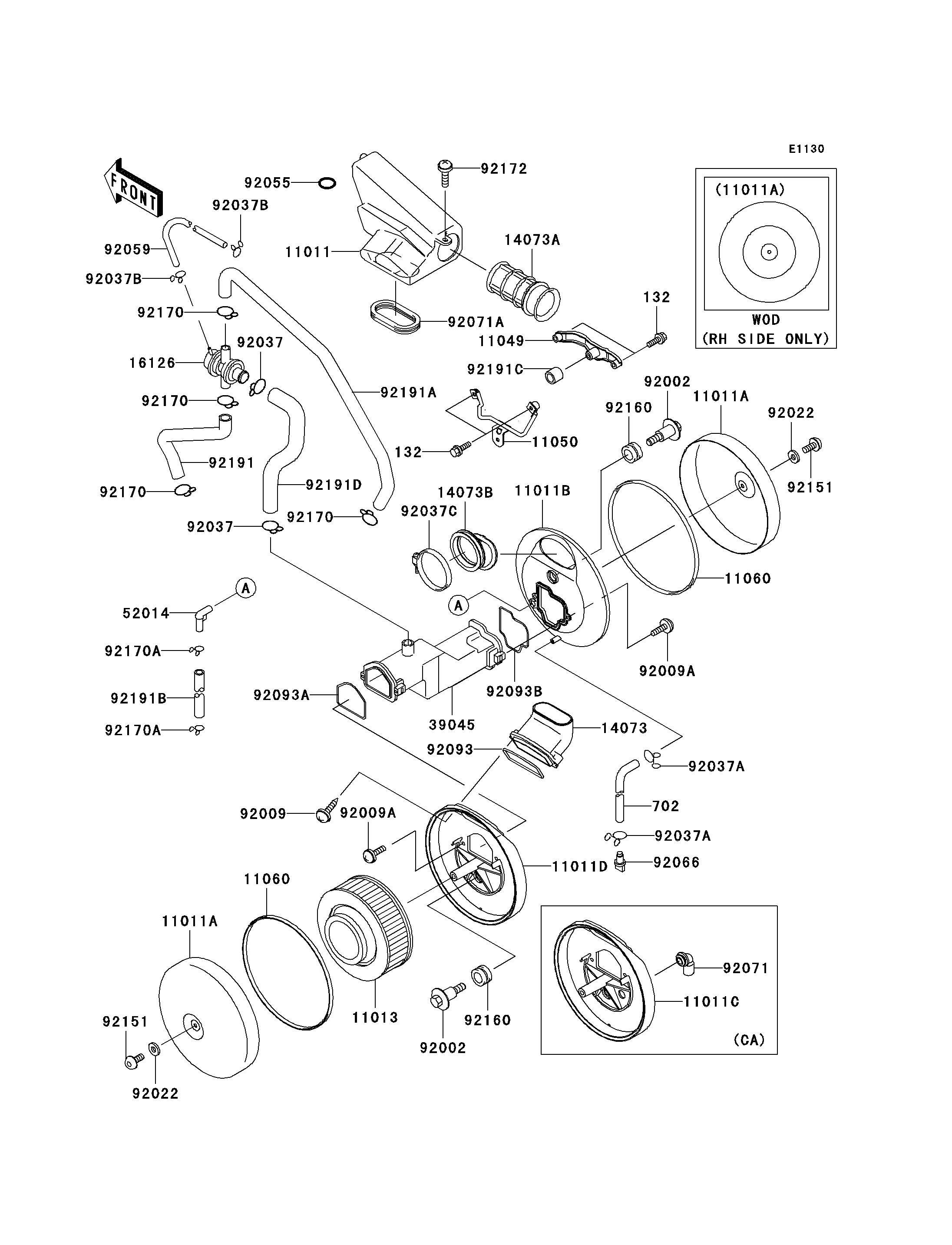

1999 Vulcan 1500 Classic - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11011
11011A
11011A
11011A
11011A
11011B
11011B
11013
11013
11049
11049
11050
11050
11060
11060
11060
11060
14073
14073
14073A
14073A
14073B
14073B
16126
16126
39045
39045
52014
52014
92002
92002
92002
92002
92009
92009
92009A
92009A
92009A
92009A
92022
92022
92022
92022
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92055
92055
92059
92059
92066
92066
92071A
92071A
92093
92093
92093A
92093A
92093B
92093B
92151
92151
92151
92151
92160
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92172
92172
132
132
132
132
702
702
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191D
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,CENTER 11011 11011-1488 1
CASE-AIR FILTER,OUTSIDE 11011A 11011-1489 2
CASE-AIR FILTER,RH 11011B 11011-1529 1
ELEMENT-AIR FILTER 11013 11013-1248 1
BRACKET,AIR FILTER,RH 11049 11049-1539 1
BRACKET,AIR FILTER,LH 11050 11050-1510 1
GASKET,AIR FILTER CASE,LH 11060 11060-1736 2
DUCT,AIR FILTER,LH 14073 14073-1658 1
DUCT 14073A 14073-1660 1
DUCT,AIR FILTER,RH 14073B 14073-1712 1
VALVE,AIR SWITCH 16126 16126-1356 1
DUCT-ASSY 39045 39045-1056 1
ELBOW 52014 52014-1083 1
BOLT 92002 92002-1595 2
SCREW,TAPPING,5X16 92009 92009-1264 2
SCREW,5X20 92009A 92009-1905 4
WASHER,6.5X20X1.6,WHITE 92022 92022-193 2
CLAMP,TUBE 92037 92037-1076 2
CLAMP,TUBE 92037A 92037-147 2
CLAMP 92037B 92037-1712 2
CLAMP 92037C 92037-1859 1
RING-O 92055 92055-1282 1
TUBE,4X9X290 92059 92059-1133 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071A 92071-1233 1
SEAL,AIR FILTER CASE 92093 92093-1408 1
SEAL,DUCT,LH 92093A 92093-1459 1
SEAL,DUCT,RH 92093B 92093-1460 1
BOLT,6X14 92151 92151-1503 2
DAMPER 92160 92160-1594 2
CLAMP,TUBE 92170 92170-1445 4
CLAMP 92170A 92170-1695 2
SCREW,6X14 92172 92172-0004 1
BOLT-FLANGED-SMALL 132 132J0625 4
TUBE-RUBBER 702 702A07260 1
TUBE,HEAD,FR-AIR SWITCH 92191 92191-1050 1
TUBE,HEAD,RR-AIR SWITCH 92191A 92191-1051 1
TUBE,BREATHER 92191B 92191-1054 1
TUBE,15.5X22.5X20 92191C 92191-1089 1
TUBE,AIR SWITCH-DUCT 92191D 92191-1266 1
CASE-AIR FILTER,LH 11011C 11011-1533 1 CA
CASE-AIR FILTER,LH 11011D 11011-1570 1 CNUS
GROMMET,AIR FILTER 92071 92071-1114 1 CA
