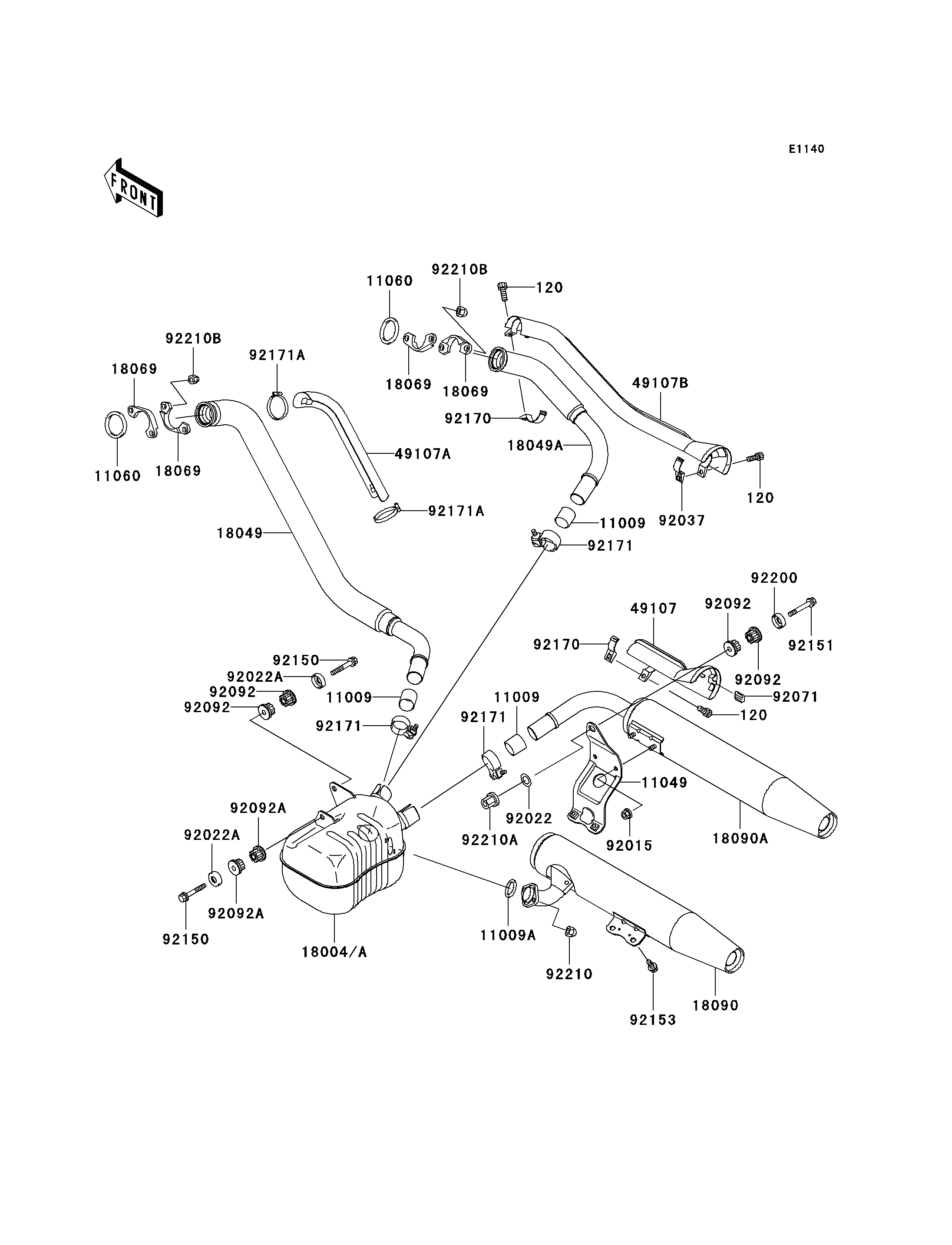

Parts Diagrams |
120
120
120
11009
11009
11009
11009A
11049
11060
11060
18049
18049A
18069
18069
18069
18069
18090
18090A
49107
49107A
49107B
92015
92022
92022A
92022A
92037
92071
92092
92092
92092
92092
92092A
92092A
92150
92150
92151
92153
92170
92170
92171
92171
92171
92171A
92171A
92200
92210
92210A
92210B
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET | 120 | 120Z0620 | 3 | ||
GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 3 | ||
GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 1 | ||
BRACKET,MUFFLER | 11049 | 11049-1540 | 1 | ||
GASKET,EXHAUST PIPE | 11060 | 11060-1119 | 2 | ||
PIPE-EXHAUST,FR | 18049 | 18049-1887 | 1 | ||
PIPE-EXHAUST,RR | 18049A | 18049-1888 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1161 | 4 | ||
BODY-COMP-MUFFLER,FR,LWR | 18090 | 18090-1652 | 1 | ||
BODY-COMP-MUFFLER,RR,UPP | 18090A | 18090-1653 | 1 | ||
COVER-EXHAUST PIPE,MUFFLER,RH | 49107 | 49107-1103 | 1 | ||
COVER-EXHAUST PIPE | 49107A | 49107-1115 | 1 | ||
COVER-EXHAUST PIPE,RR | 49107B | 49107-1156 | 1 | ||
NUT,8MM | 92015 | 92015-1936 | 2 | ||
WASHER,10.5X26X2.3 | 92022 | 92022-044 | 1 | ||
WASHER,10.5X30X2.3,BLACK | 92022A | 92022-1302 | 2 | ||
CLAMP,EXHAUST PIPE COVER | 92037 | 92037-1613 | 1 | ||
GROMMET | 92071 | 92071-1226 | 2 | ||
BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 4 | ||
BUSHING-RUBBER | 92092A | 92092-1081 | 2 | ||
BOLT,10X55 | 92150 | 92150-1749 | 2 | ||
BOLT,FLANGED,10X57 | 92151 | 92151-1332 | 1 | ||
BOLT,FLANGED,8X14 | 92153 | 92153-0387 | 2 | ||
CLAMP | 92170 | 92170-1645 | 2 | ||
CLAMP,CHAMBER-MUFFLER | 92171 | 92171-0062 | 3 | ||
CLAMP | 92171A | 92171-0137 | 2 | ||
WASHER,10.5X36X2 | 92200 | 92200-1664 | 1 | ||
NUT,8MM | 92210 | 92210-0076 | 2 | ||
NUT,CAP,10MM | 92210A | 92210-1121 | 1 | ||
NUT,CAP,8MM | 92210B | 92210-1132 | 4 | ||
CHAMBER-PREMUFFLER | 18004 | 18004-1091 | 1 | CA | |
CHAMBER-PREMUFFLER | 18004A | 18004-1094 | 1 | CNUS |
