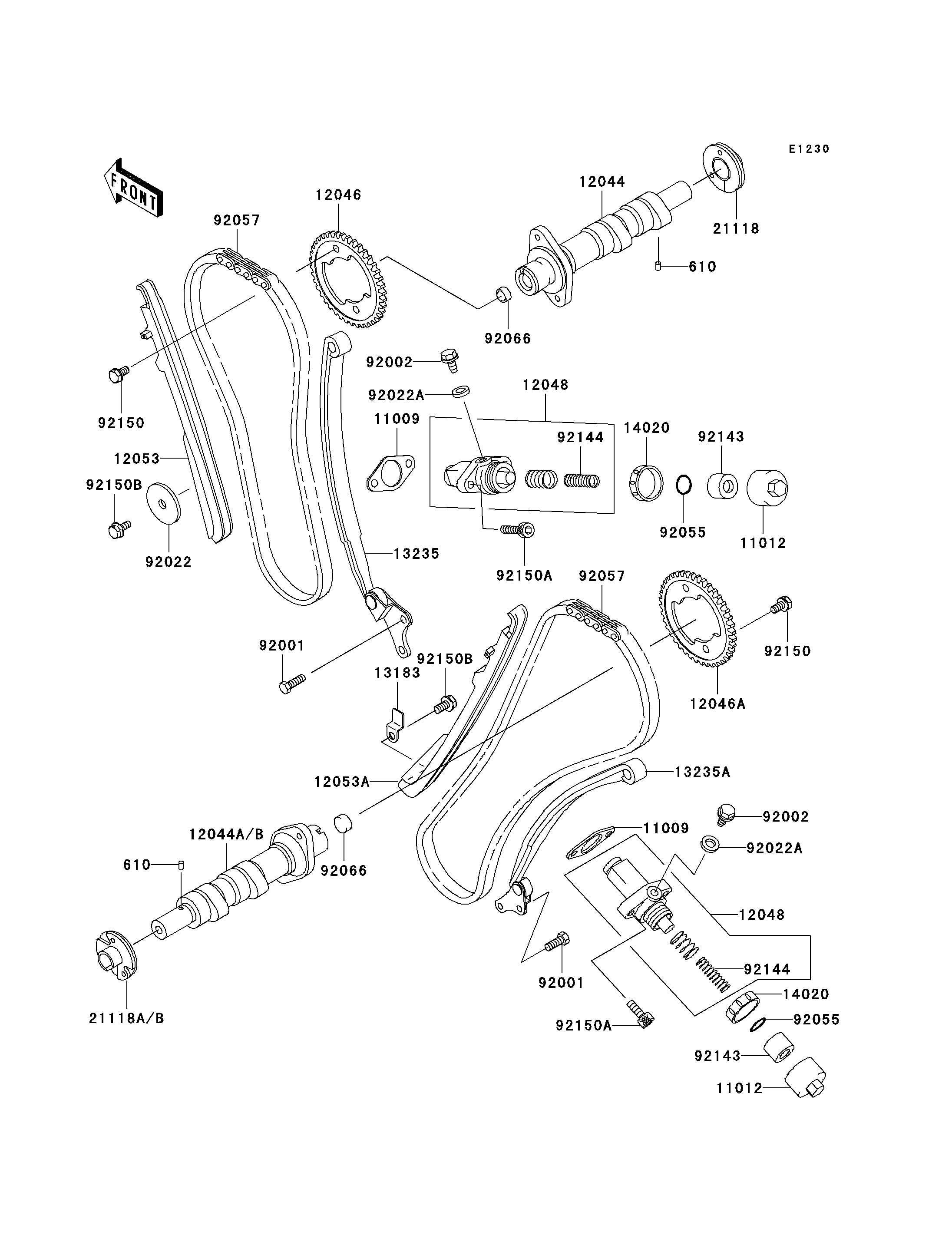

1999 Vulcan 1500 Classic - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
610
610
11009
11009
11012
11012
12044
12044A
12046
12046A
12048
12048
12053
12053A
13183
13235
13235A
14020
14020
21118
21118A
92001
92001
92002
92002
92022
92022A
92022A
92055
92055
92057
92057
92066
92066
92143
92143
92144
92144
92150
92150
92150A
92150A
92150B
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X6 610 610A0406 2
GASKET,TENSIONER 11009 11009-1858 2
CAP,TENSIONER 11012 11012-1959 2
CAMSHAFT-VALVE,FR 12044 12044-1394 1
CAMSHAFT-VALVE,RR 12044A 12044-1395 1
SPROCKET,CAMSHAFT,FR,46T 12046 12046-1175 1
SPROCKET,CAMSHAFT,RR,46T 12046A 12046-1176 1
TENSIONER-ASSY 12048 12048-1160 2
GUIDE-CHAIN,FR,TENSIONER 12053 12053-1219 1
GUIDE-CHAIN,RR,TENSIONER 12053A 12053-1221 1
PLATE 13183 13183-1096 1
GUIDE-COMP,FR 13235 13235-1070 1
GUIDE-COMP,RR 13235A 13235-1071 1
RETAINER,TENSIONER 14020 14020-1054 2
DECOMPRESSOR,FR 21118 21118-1061 1
DECOMPRESSOR,RR 21118A 21118-1083 1
BOLT,6X16 92001 92001-1457 4
BOLT,6MM 92002 92002-1356 2
WASHER,7X27X1.6 92022 92022-227 1
WASHER,6.2X11X1 92022A 92022-304 2
RING-O,TENSIONER 92055 92055-1555 2
CHAIN,CAM,92RH2010 92057 92057-1422 2
PLUG 92066 92066-1198 2
COLLAR,TENSIONER 92143 92143-1836 2
SPRING,TENSIONER 92144 92144-1921 2
BOLT,FLANGED,6X11 92150 92150-1725 4
BOLT,SOCKET,6X20 92150A 92150-1795 4
BOLT,6X12 92150B 92150-1868 2
