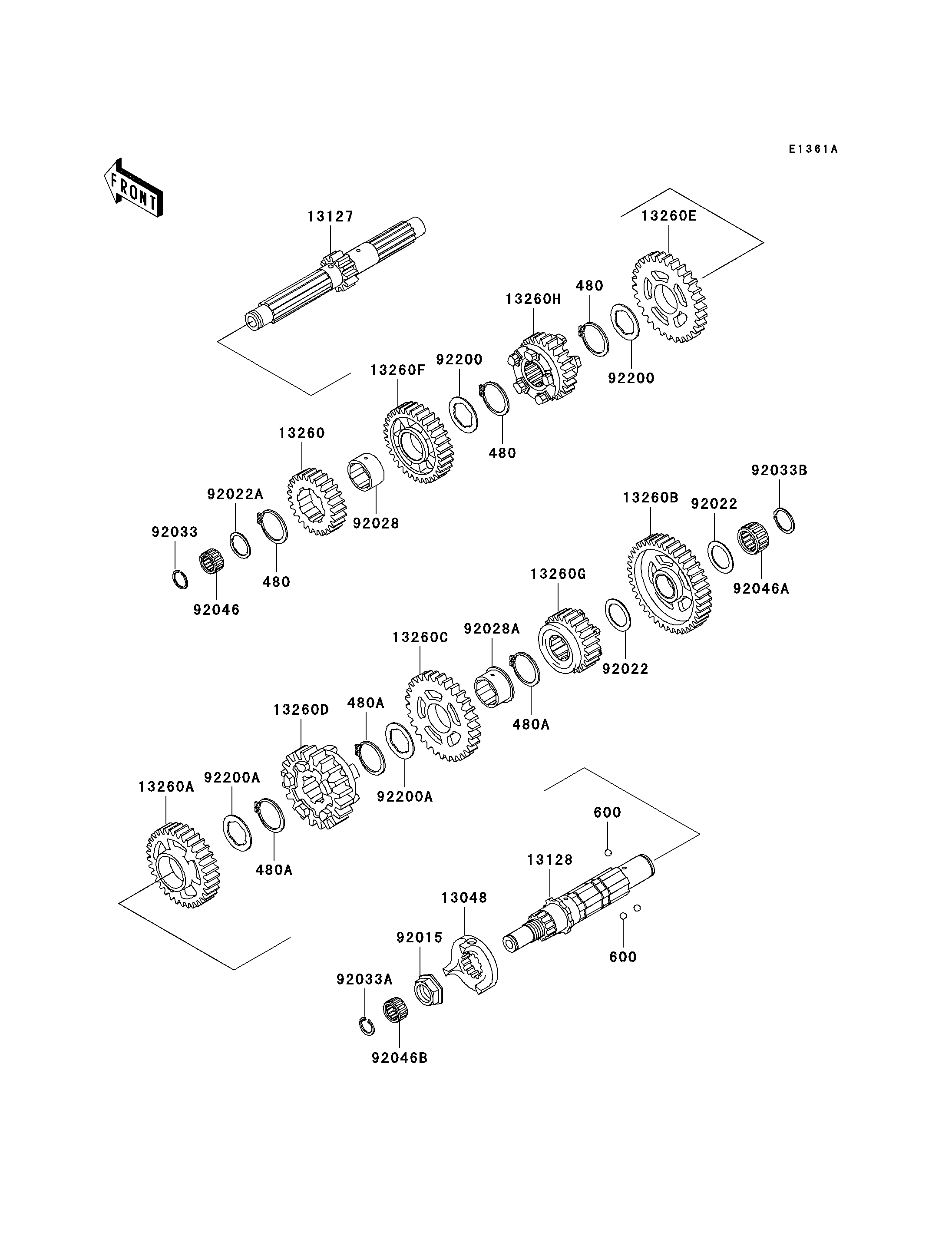

1999 Vulcan 1500 Classic - Transmission(VNT50AE077439-)
480
480
480
480A
480A
480A
600
600
13048
13127
13128
13260
13260A
13260B
13260C
13260D
13260E
13260F
13260G
13260H
92015
92022
92022
92022A
92028
92028A
92033
92033A
92033B
92046
92046A
92046B
92200
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,28MM | 480 | 480J2800 | 3 | ||
CIRCLIP | 480A | 480J2900 | 3 | ||
BALL-STEEL,5/32" | 600 | 600A0500 | 3 | ||
CAM-DAMPER | 13048 | 13048-1086 | 1 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-1260 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1227 | 1 | ||
GEAR,INPUT 2ND,22T | 13260 | 13260-1695 | 1 | ||
GEAR,OUTPUT 2ND,35T | 13260A | 13260-1700 | 1 | ||
GEAR,OUTPUT LOW,40T | 13260B | 13260-1728 | 1 | ||
GEAR,OUTPUT 3RD,31T | 13260C | 13260-1812 | 1 | ||
GEAR,OUTPUT TOP,25T | 13260D | 13260-1813 | 1 | ||
GEAR,INPUT 4TH,29T | 13260E | 13260-1814 | 1 | ||
GEAR,INPUT TOP,32T | 13260F | 13260-1815 | 1 | ||
GEAR,OUTPUT 4TH,28T | 13260G | 13260-1816 | 1 | ||
GEAR,INPUT 3RD,26T | 13260H | 13260-1849 | 1 | ||
NUT,20MM | 92015 | 92015-1610 | 1 | ||
WASHER,25.5X36X1.0 | 92022 | 92022-1855 | 2 | ||
WASHER,22.3X35X1.6 | 92022A | 92022-212 | 1 | ||
BUSHING,INPUT TOP GEAR | 92028 | 92028-1752 | 1 | ||
BUSHING,OUTPUT 3RD GEAR | 92028A | 92028-1831 | 1 | ||
RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
RING-SNAP | 92033A | 92033-032 | 1 | ||
RING-SNAP,25MM | 92033B | 92033-1172 | 1 | ||
BEARING-NEEDLE,FWF-223014 | 92046 | 92046-031 | 1 | ||
BEARING-NEEDLE,TK253515 | 92046A | 92046-1259 | 1 | ||
BEARING-NEEDLE,FWF-162222 | 92046B | 92046-1260 | 1 | ||
WASHER,T=1.5 | 92200 | 92200-1240 | 2 | ||
WASHER,30.3X40X1.5 | 92200A | 92200-1381 | 2 |
CIRCLIP-TYPE-C,28MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CIRCLIP | |
REF # | 480A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BALL-STEEL,5/32" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
CAM-DAMPER | |
REF # | 13048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION INPUT | |
REF # | 13127 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-TRANSMISSION OUTPUT | |
REF # | 13128 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 2ND,22T | |
REF # | 13260 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 2ND,35T | |
REF # | 13260A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT LOW,40T | |
REF # | 13260B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 3RD,31T | |
REF # | 13260C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT TOP,25T | |
REF # | 13260D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 4TH,29T | |
REF # | 13260E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT TOP,32T | |
REF # | 13260F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OUTPUT 4TH,28T | |
REF # | 13260G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,INPUT 3RD,26T | |
REF # | 13260H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,25.5X36X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,22.3X35X1.6 | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,INPUT TOP GEAR | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,OUTPUT 3RD GEAR | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,20X25.5X1.2 | |
REF # | 92033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP | |
REF # | 92033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-SNAP,25MM | |
REF # | 92033B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,FWF-223014 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,TK253515 | |
REF # | 92046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,FWF-162222 | |
REF # | 92046B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,T=1.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,30.3X40X1.5 | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
