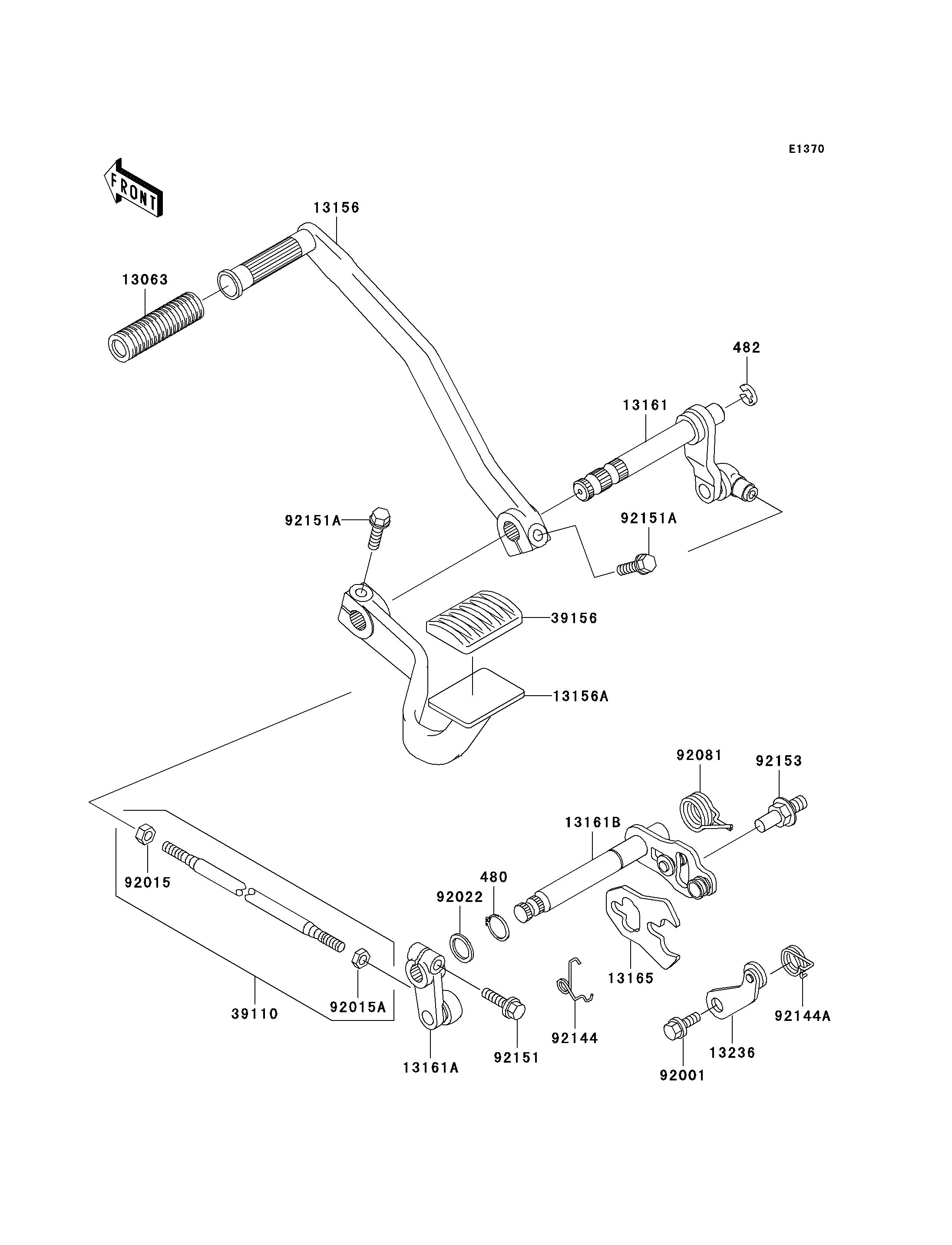

1999 Vulcan 1500 Classic - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
480
482
13063
13156
13156A
13161
13161A
13161B
13165
13236
39110
39156
92001
92015
92015A
92022
92081
92144
92144A
92151
92151A
92151A
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,13MM 480 480J1300 1
CIRCLIP-TYPE-E,10MM 482 482L0100 1
DAMPER,PEDAL 13063 13063-002 1
LEVER-CHANGE,PEDAL,FR 13156 13156-1419 1
LEVER-CHANGE,PEDAL,RR 13156A 13156-1420 1
LEVER-COMP-CHANGE SHAFT,FR 13161 13161-1250 1
LEVER-COMP-CHANGE SHAFT 13161A 13161-1253 1
LEVER-COMP-CHANGE SHAFT 13161B 13161-1254 1
PAWL 13165 13165-1120 1
LEVER-COMP,POSITION 13236 13236-1126 1
ROD-ASSY-TIE 39110 39110-1119 1
PAD,BRAKE PEDAL 39156 39156-1071 1
BOLT,GEAR CHANGE LEVER 92001 92001-1715 1
NUT,6MM 92015 92015-1443 1
NUT,LEFT HANDED,6MM 92015A 92015-1444 1
WASHER,13.2X20X0.5 92022 92022-1224 1
SPRING,CHANGE PEDAL RETURN 92081 92081-1869 1
SPRING 92144 92144-1029 1
SPRING,RETURN 92144A 92144-1140 1
BOLT,6X20 92151 92151-1226 1
BOLT,6X25 92151A 92151-1898 2
BOLT 92153 92153-1076 1
