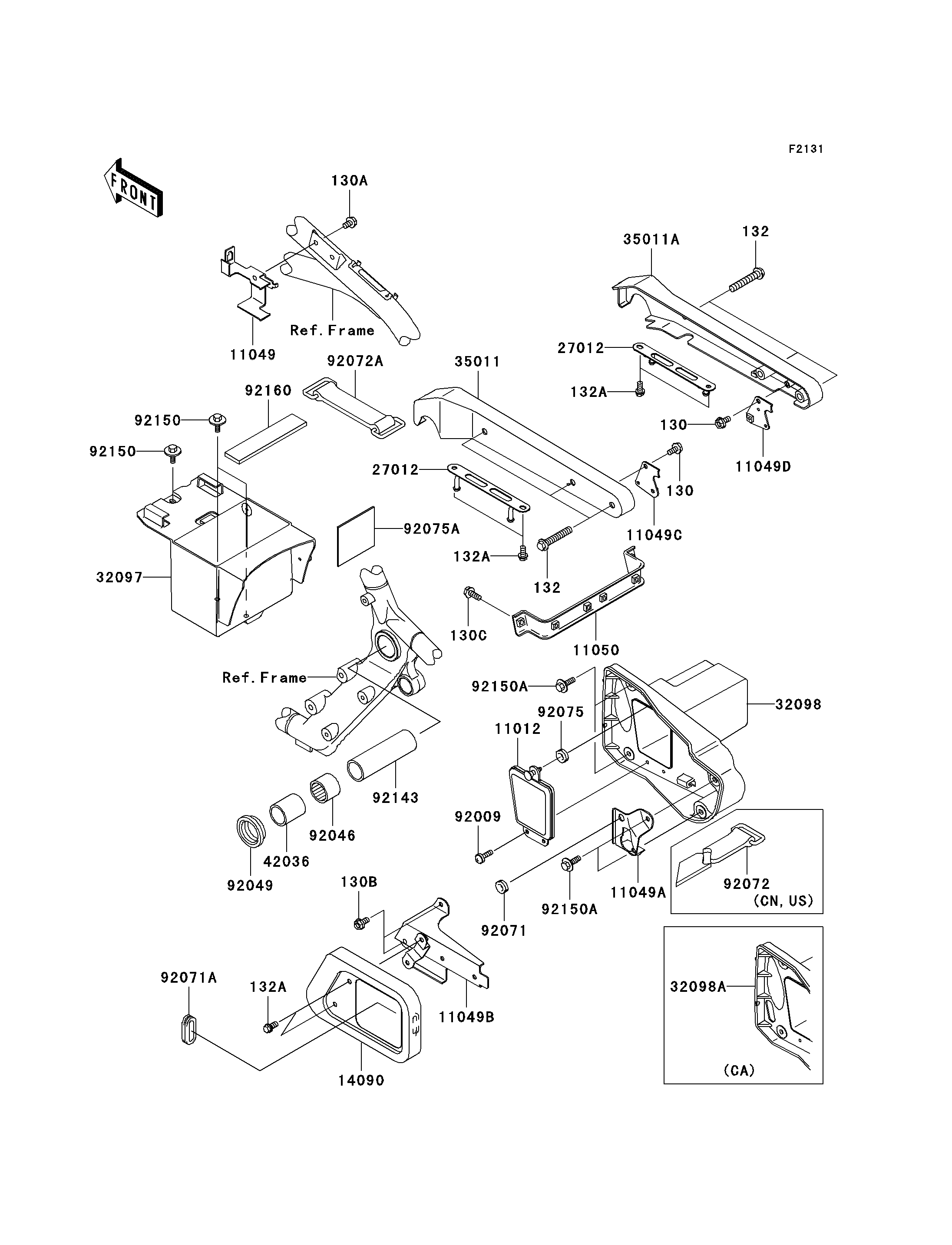

1999 Vulcan 1500 Classic - Frame Fittings
130
130
130A
130B
130C
132
132
132A
132A
132A
11012
11049
11049A
11049B
11049C
11049D
11050
14090
27012
27012
32097
35011
35011A
42036
92009
92046
92049
92071
92071A
92072A
92075
92075A
92143
92150
92150
92150A
92150A
92160
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X12 | 130 | 130H0612 | 2 | ||
BOLT-FLANGED | 130A | 130J0610 | 1 | ||
BOLT-FLANGED | 130B | 130J0612 | 2 | ||
BOLT-FLANGED,6X16,BLACK | 130C | 130J0616 | 2 | ||
BOLT-FLANGED-SMALL,8X45 | 132 | 132E0845 | 6 | ||
BOLT-FLANGED-SMALL | 132A | 132J0612 | 6 | ||
CAP,TOOL CASE | 11012 | 11012-1956 | 1 | ||
BRACKET,FUEL PUMP | 11049 | 11049-1599 | 1 | ||
BRACKET,LOCK | 11049A | 11049-1600 | 1 | ||
BRACKET,REGULATOR | 11049B | 11049-1607 | 1 | ||
BRACKET,HELMET LOCK,LH | 11049C | 11049-1624 | 1 | ||
BRACKET,HELMET LOCK,RH | 11049D | 11049-1625 | 1 | ||
BRACKET,REGULATOR | 11050 | 11050-1694 | 1 | ||
COVER,REGULATOR | 14090 | 14090-1940 | 1 | ||
HOOK,BUNGEE CORD | 27012 | 27012-1524 | 2 | ||
CASE-BATTERY | 32097 | 32097-1161 | 1 | ||
STAY,REAR FENDER,LH | 35011 | 35011-1868 | 1 | ||
STAY,REAR FENDER,RH | 35011A | 35011-1869 | 1 | ||
SLEEVE,L=45 | 42036 | 42036-1330 | 2 | ||
SCREW,TAPPING,5X14 | 92009 | 92009-1635 | 2 | ||
BEARING-NEEDLE,BM2824 | 92046 | 92046-1202 | 2 | ||
SEAL-OIL | 92049 | 92049-1181 | 2 | ||
GROMMET | 92071 | 92071-056 | 1 | ||
GROMMET | 92071A | 92071-1187 | 1 | ||
BAND | 92072A | 92072-1384 | 1 | ||
DAMPER | 92075 | 92075-1629 | 1 | ||
DAMPER,BATTERY | 92075A | 92075-1864 | 1 | ||
COLLAR,20.2X27X90 | 92143 | 92143-1878 | 1 | ||
BOLT,6X14 | 92150 | 92150-1133 | 3 | ||
BOLT,6X16 | 92150A | 92150-1198 | 4 | ||
DAMPER | 92160 | 92160-1779 | 1 | ||
CASE-TOOL | 32098 | 32098-1109 | 1 | CNUS | |
CASE-TOOL | 32098A | 32098-1124 | 1 | CA | |
BAND,L=470 | 92072 | 92072-1331 | 1 | CNUS |
