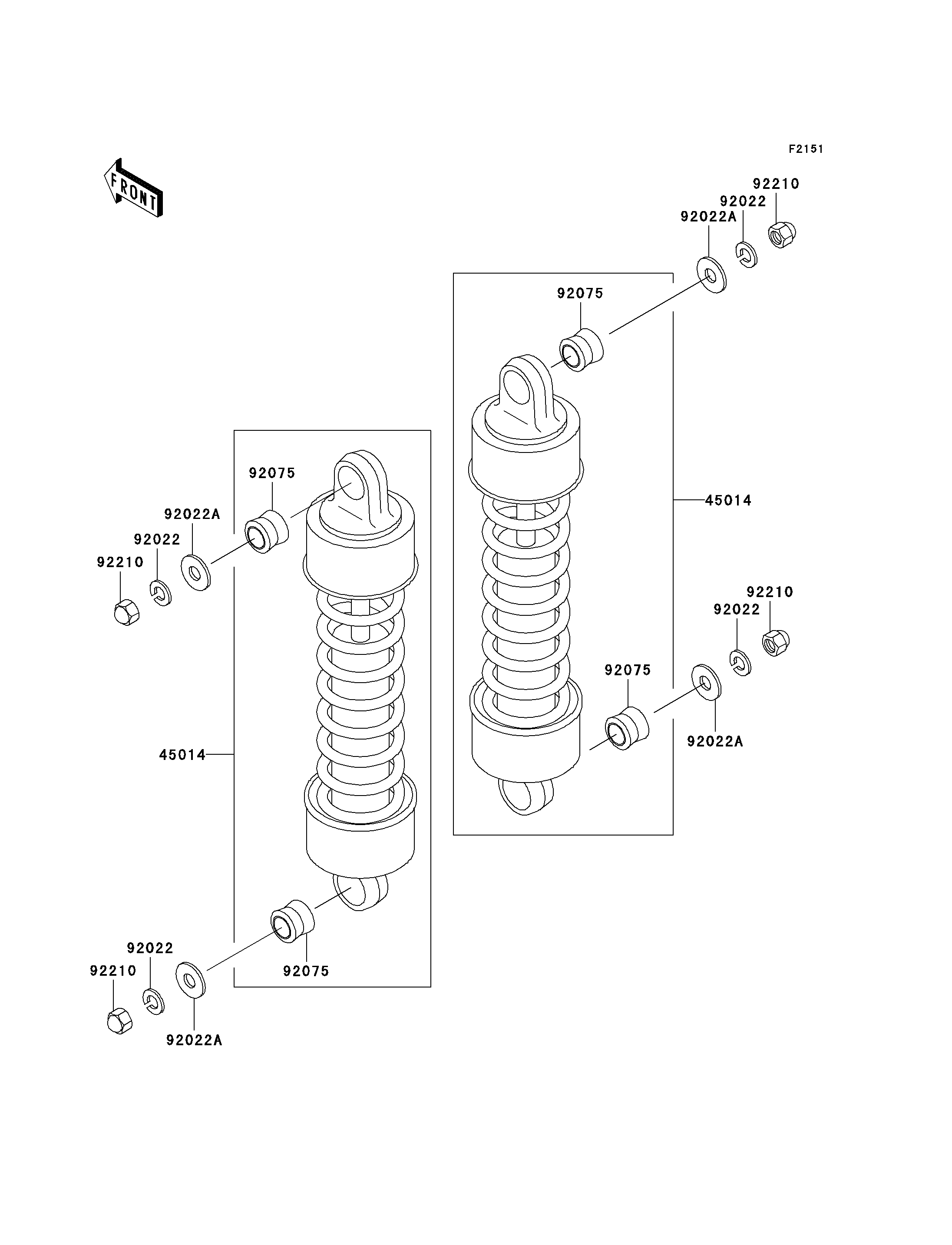

1999 Vulcan 1500 Classic - Suspension/Shock Absorber
45014
45014
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92075
92075
92075
92075
92210
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHOCKABSORBER | 45014 | 45014-1719 | 2 | ||
WASHER,SPRING,10MM | 92022 | 92022-1540 | 4 | ||
WASHER,10.5X26X2.3 | 92022A | 92022-246 | 4 | ||
DAMPER,SHOCKABSORBER | 92075 | 92075-1387 | 4 | ||
NUT,CAP,10MM | 92210 | 92210-1128 | 4 |
