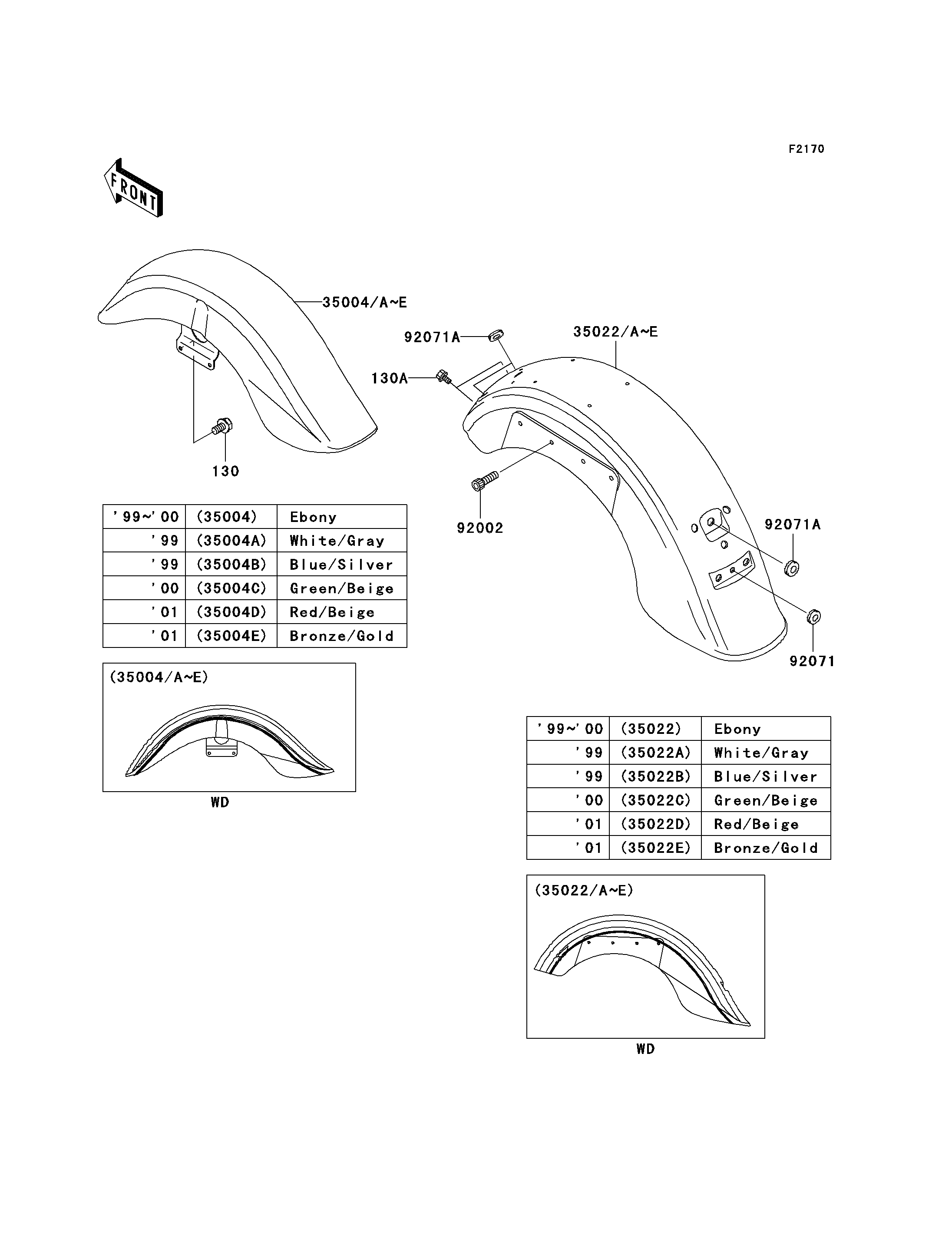

1999 Vulcan 1500 Classic - Fenders(VN1500-E2-E4)
35004
35004
35004A
35004A
35004B
35004B
35022
35022
35022A
35022A
35022B
35022B
130
130
130A
130A
92002
92002
92071
92071
92071A
92071A
92071A
92071A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,EBONY | 35004 | 35004-5108-H8 | 1 | ||
| FENDER-FRONT,WHITE/GRAY | 35004A | 35004-5133-96 | 1 | ||
| FENDER-FRONT,BLUE/SILVER | 35004B | 35004-5134-H6 | 1 | ||
| FENDER-COMP-REAR,EBONY | 35022 | 35022-5025-H8 | 1 | ||
| FENDER-COMP-REAR,WHITE/GRAY | 35022A | 35022-5053-96 | 1 | ||
| FENDER-COMP-REAR,BLUE/SILVER | 35022B | 35022-5054-H6 | 1 | ||
| BOLT-FLANGED,8X14 | 130 | 130J0814 | 4 | ||
| BOLT-FLANGED,8X16,BLACK | 130A | 130J0816 | 2 | ||
| BOLT,SOCKET,8X25 | 92002 | 92002-1442 | 2 | ||
| GROMMET,10MM | 92071 | 92071-019 | 1 | ||
| GROMMET,13MM | 92071A | 92071-099 | 3 |
| FENDER-FRONT,EBONY | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,WHITE/GRAY | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,BLUE/SILVER | |
| REF # | 35004B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,EBONY | |
| REF # | 35022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,WHITE/GRAY | |
| REF # | 35022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,BLUE/SILVER | |
| REF # | 35022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16,BLACK | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X25 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,10MM | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,13MM | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
