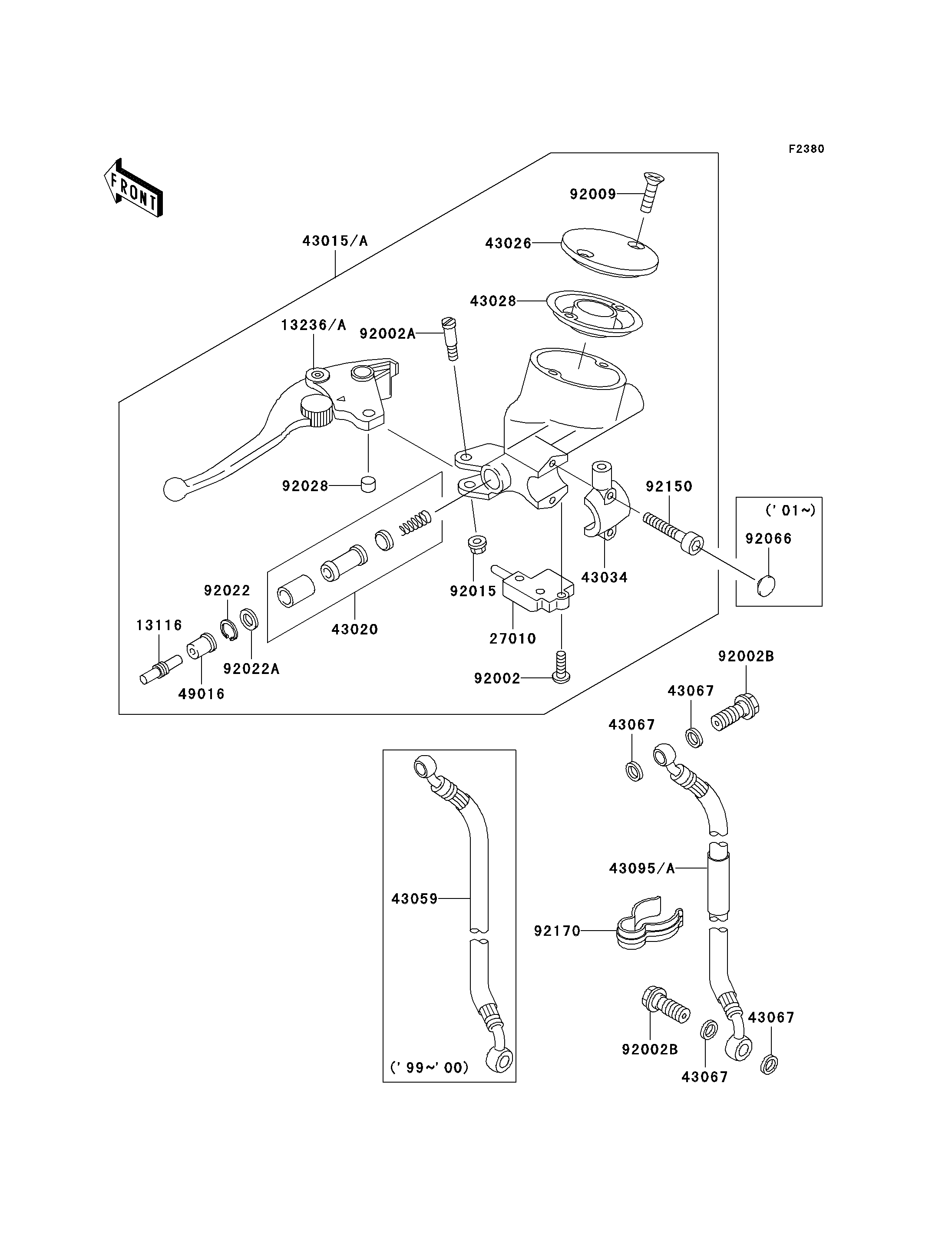

1999 Vulcan 1500 Classic - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
27010
43015A
43020
43026
43028
43034
43059
43067
43067
43067
43067
49016
92002
92002A
92002B
92002B
92009
92015
92022
92022A
92028
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH,MASTER CYLINDER 13116 13116-1110 1
LEVER-COMP,CLUTCH 13236 13236-1282 1
SWITCH,CLUTCH 27010 27010-1406 1
CYLINDER-ASSY-MASTER,CLUTCH 43015A 43015-1624 1
PISTON-COMP-BRAKE,CLUTCH 43020 43020-1055 1
CAP-BRAKE 43026 43026-1083 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1071 1
HOLDER-BRAKE 43034 43034-1147 1
HOSE-BRAKE,CLUTCH 43059 43059-1954 1
WASHER,10.5X15X1.5 43067 43067-001 4
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
SCREW,4X16 92002 92002-1325 1
BOLT,LEVER SET 92002A 92002-1561 1
BOLT,OIL,L=23 92002B 92002-1888 2
SCREW,5MM 92009 92009-1440 2
NUT,FLANGED,6MM 92015 92015-1528 1
CIRCLIP 92022 92022-1605 1
WASHER,PISTON 92022A 92022-1606 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
BOLT,SOCKET,6MM 92150 92150-1025 2
CLAMP,HOSE 92170 92170-1703 2
