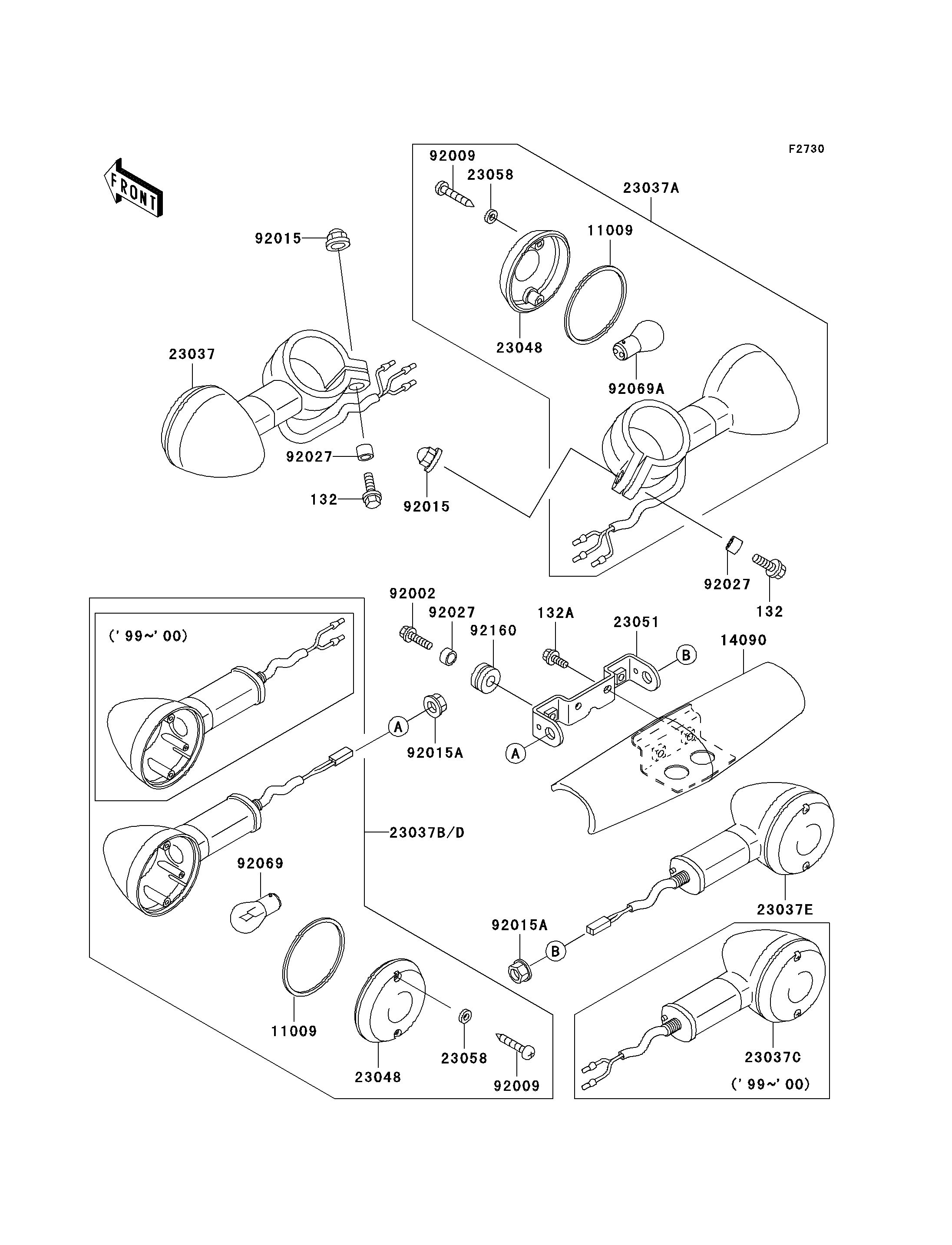

1999 Vulcan 1500 Classic - Turn Signals
132
132
132A
11009
11009
14090
23037
23037A
23037B
23037C
23048
23048
23051
23058
23058
92002
92009
92009
92015
92015
92015A
92015A
92027
92027
92027
92069
92069A
92160
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132E0620 | 2 | ||
BOLT-FLANGED-SMALL | 132A | 132J0614 | 2 | ||
GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
COVER | 14090 | 14090-1691 | 1 | ||
LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-1317 | 1 | ||
LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-1318 | 1 | ||
LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-1321 | 1 | ||
LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-1322 | 1 | ||
LENS-SIGNAL LAMP | 23048 | 23048-1066 | 4 | ||
BRACKET-SIGNAL LAMP,RR | 23051 | 23051-1230 | 1 | ||
WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
BOLT,6X22 | 92002 | 92002-1262 | 2 | ||
SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
NUT,CAP,6MM | 92015 | 92015-1385 | 2 | ||
NUT,FLANGED,10MM | 92015A | 92015-1428 | 2 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
BULB,12V 32CP(23W) | 92069 | 92069-055 | 2 | ||
BULB,12V 32/3CP(23/8W) | 92069A | 92069-060 | 2 | ||
DAMPER | 92160 | 92160-1162 | 2 |
