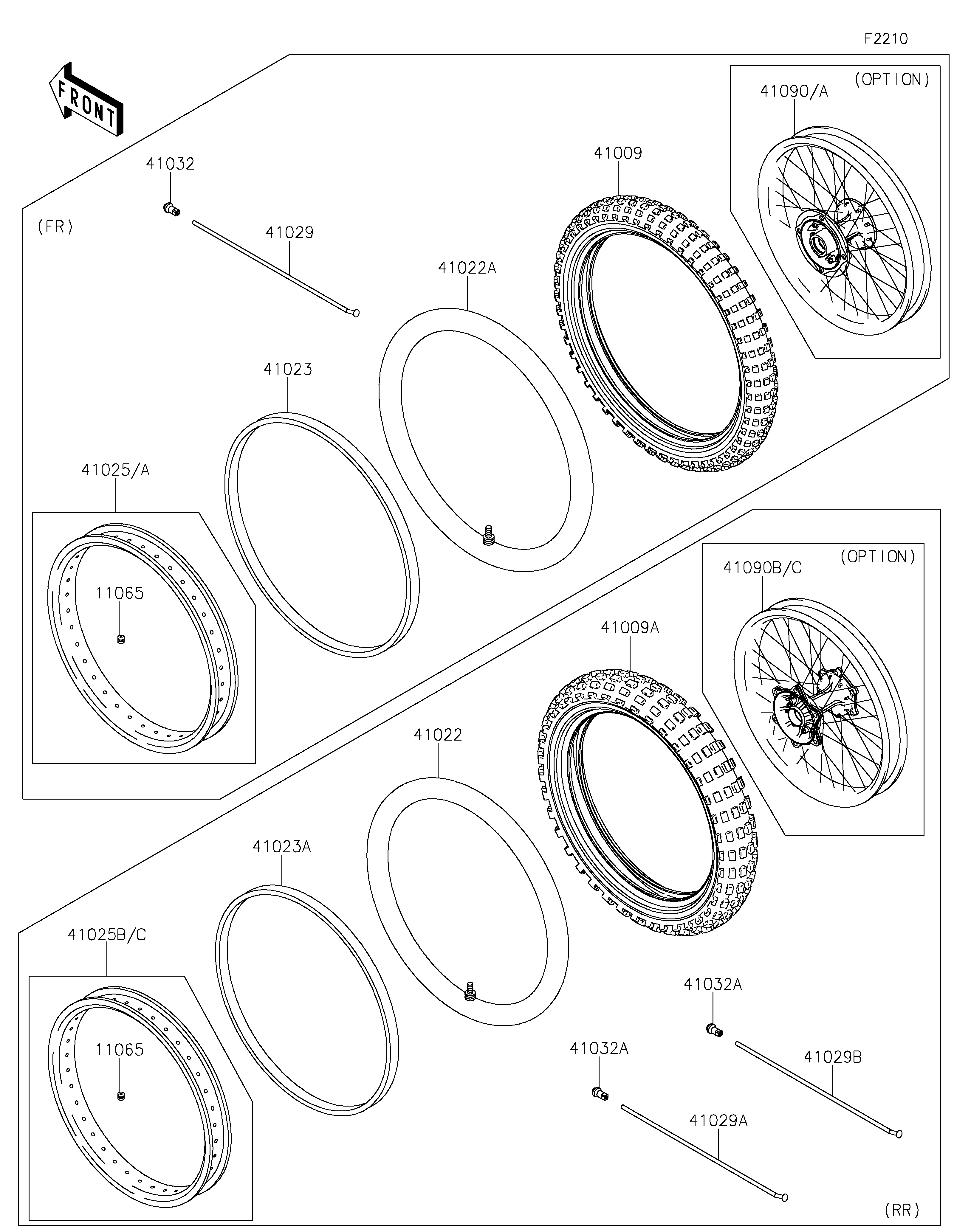

2019 KLX®250 CAMO - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
41009
41009A
41022
41022A
41023
41023A
41025A
41025C
41029
41029A
41029B
41032
41032A
41032A
41090A
41090C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BEAD STOPPER 11065 11065-0384 2
TIRE,FR,3.00-21 51P,D605 FG(D) 41009 41009-0781 1
TIRE,RR,4.60-18 63P,D605G(D) 41009A 41009-0782 1
TUBE-TIRE,RR,4.60-18(D),SNI 41022 41022-0096 1
TUBE-TIRE,FR,80/100-21(D) 41022A 41022-1244 1
BAND-RIM,FR,21XWM1.60-1.85(D) 41023 41023-1144 1
BAND-RIM,RR,18XWM/MT 1.85-2.15(D) 41023A 41023-1145 1
RIM,FR,1.60X21,BLACK 41025A 41025-0318-WC 1
RIM,RR,2.15X18,BLACK 41025C 41025-0320-WC 1
SPOKE-INNER,FR,228MMX165D 41029 41029-0004 36
SPOKE-INNER,RR,LH,193.1MMX165D 41029A 41029-0047 18
SPOKE-INNER,RR,RH,189.1MMX160D 41029B 41029-0048 18
NIPPLE-SPOKE,FR 41032 41032-0005 36
NIPPLE-SPOKE,RR 41032A 41032-0007 36
WHEEL-SUB ASSY,FR,BLACK 41090A 41090-0041-WC 1 (OPTION)
WHEEL-SUB ASSY,RR,BLACK 41090C 41090-0042-WC 1 (OPTION)
