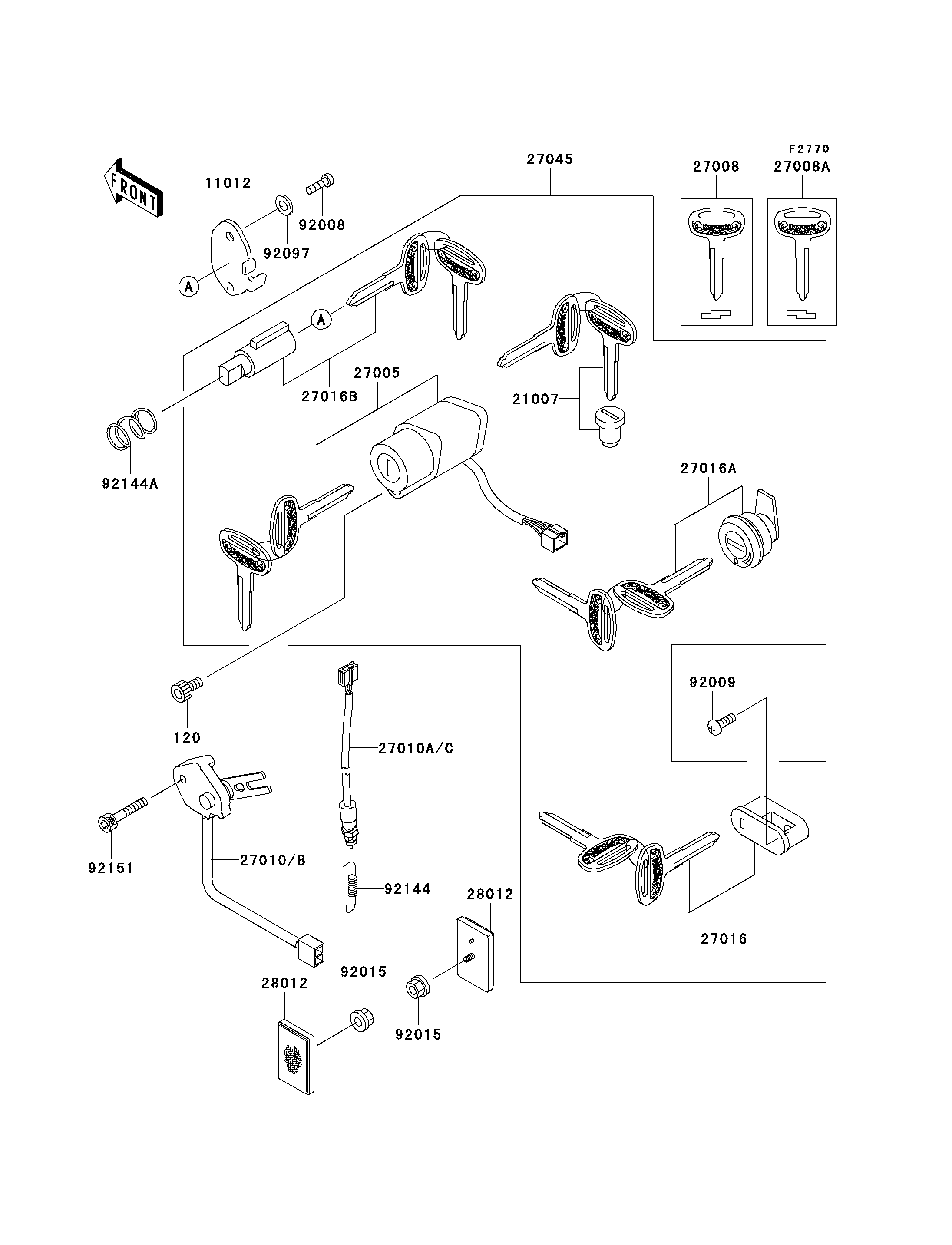

1999 Vulcan 1500 Classic - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
11012
21007
27005
27008
27008A
27010
27010A
27016
27016A
27016B
27045
28012
28012
92008
92009
92015
92015
92097
92144
92144A
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120P0512 1
CAP,STEERING LOCK 11012 11012-1586 1
ROTOR,LOCK,TANK CAP 21007 21007-5041 1
SWITCH-ASSY-IGNITION 27005 27005-1215 1
KEY-LOCK,BLANK,#A 27008 27008-1179 1 (OPTION)
KEY-LOCK,BLANK,#B 27008A 27008-1180 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1359 1
SWITCH,REAR BRAKE 27010A 27010-1370 1
LOCK-ASSY,HELMET 27016 27016-5243 2
LOCK-ASSY,LID 27016A 27016-5244 1
LOCK-ASSY,STEERING 27016B 27016-5246 1
SWITCH-ASSY 27045 27045-5087 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
SCREW,3.51MM 92008 92008-007 1
SCREW,5X12 92009 92009-1296 2
NUT,FLANGED,5MM 92015 92015-1656 2
WASHER,WAVE 92097 92097-003 1
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
SPRING,STEERING LOCK 92144A 92144-1222 1
BOLT,SOCKET,6X35 92151 92151-1390 1
