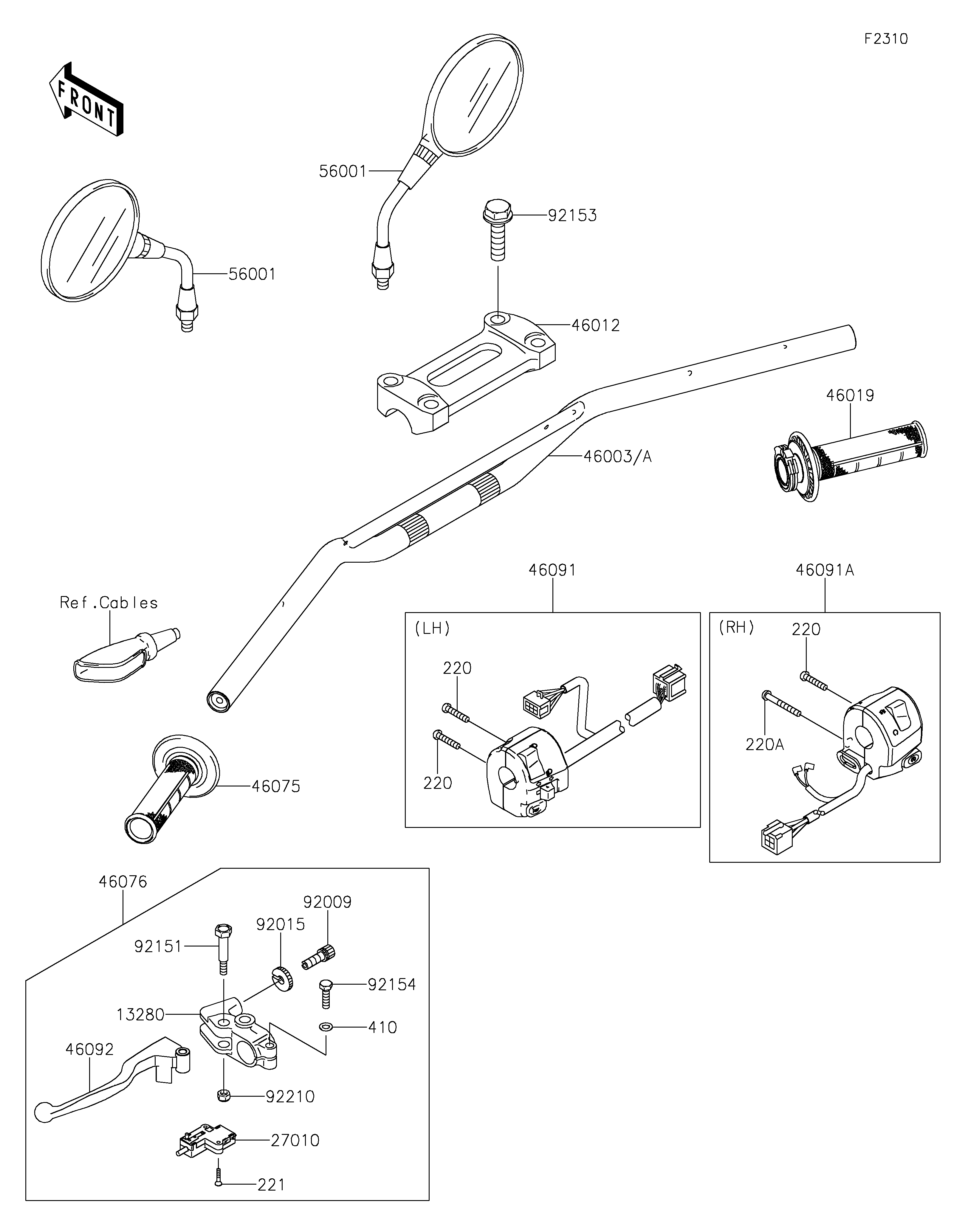

2019 KLX®250 CAMO - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13280
27010
46003
46012
46019
46075
46076
46091
46091A
46092
56001
56001
92009
92015
92151
92153
92154
92210
220
220
220
220A
221
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13280 13280-0105 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
HANDLE,F.S.BLACK 46003 46003-0164-18R 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0010-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0026 1
GRIP,LH 46075 46075-0082 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0094 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0163 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0355 1
LEVER-GRIP,CLUTCH 46092 46092-0050 1
MIRROR-ASSY 56001 56001-1285 2
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
BOLT,LEVER SET 92151 92151-1986 1
BOLT,FLANGED,8X30 92153 92153-1519 4
BOLT,UPSET,6X22 92154 92154-1422 1
NUT,LOCK,6MM 92210 92210-0006 1
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROS,5X40 220A 220AB0540 1
SCREW-CSK-CROS,3X16 221 221AB0316 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
