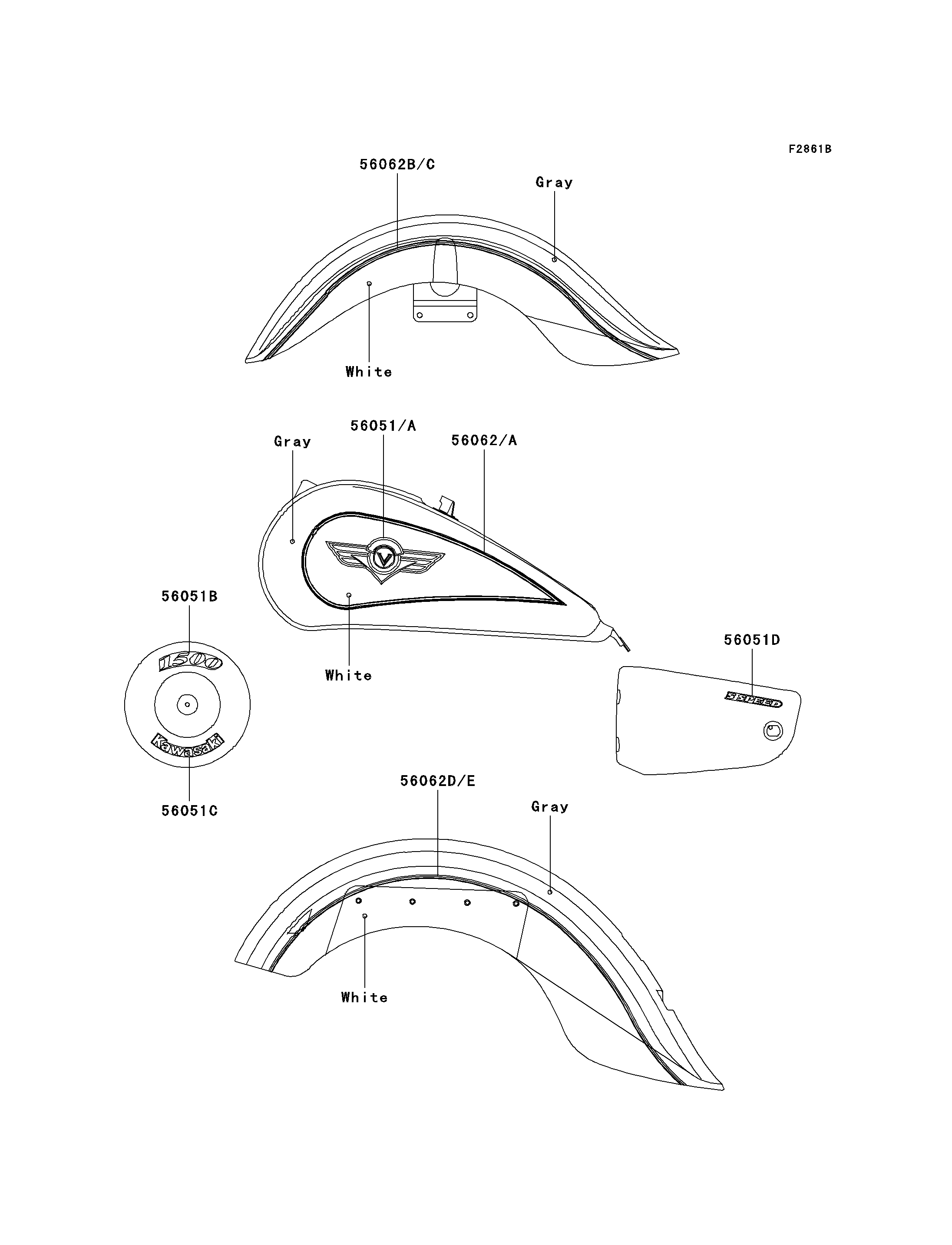

1999 Vulcan 1500 Classic - Decals(Gray/White)(VN1500-E2)

56051
56051A
56051B
56051C
56051D
56062
56062A
56062B
56062C
56062D
56062E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56051 56051-1455 1
MARK,FUEL TANK,RH 56051A 56051-1456 1
MARK,AIR CLEANER,1500 56051B 56051-1459 1
MARK,AIR CLEANER,KAWASAKI 56051C 56051-1460 1
MARK,SIDE COVER,LH,5 SPEED 56051D 56051-1735 1
PATTERN,FUEL TANK,LH 56062 56062-1716 1
PATTERN,FUEL TANK,RH 56062A 56062-1717 1
PATTERN,FR FENDER,LH 56062B 56062-1718 1
PATTERN,FR FENDER,RH 56062C 56062-1719 1
PATTERN,RR FENDER,LH 56062D 56062-1720 1
PATTERN,RR FENDER,RH 56062E 56062-1721 1
