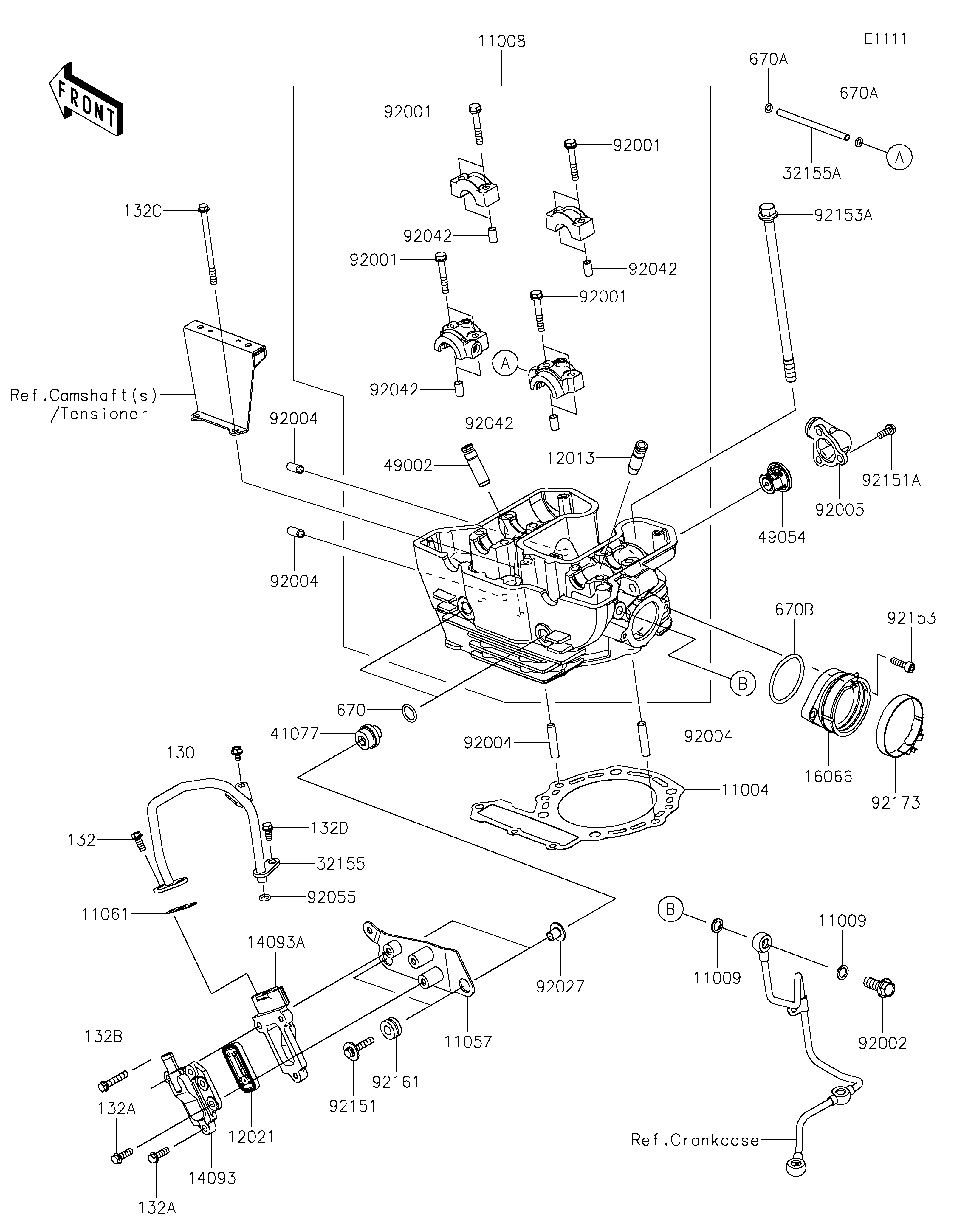

2022 KLR®650 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
11009
11009
11057
11061
12013
12021
14093
14093A
16066
32155
32155A
41077
49002
49054
92001
92001
92001
92001
92002
92004
92004
92004
92004
92005
92027
92042
92042
92042
92042
92055
92151
92151A
92153
92153A
92161
92173
130
132
132A
132A
132B
132C
132D
670
670A
670A
670B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1158 1
HEAD-COMP-CYLINDER 11008 11008-1451 1
GASKET,10X14.5X1.5 11009 11009-1105 2
BRACKET,REED VALVE COVER 11057 11057-7187 1
GASKET,REED VALVE COVER 11061 11061-1396 1
GUIDE-VALVE,INTAKE 12013 12013-009 2
VALVE-ASSY-REED 12021 12021-0017 1
COVER,REED VALVE,FR 14093 14093-1081 1
COVER,REED VALVE,RR 14093A 14093-1123 1
HOLDER-THROTTLE BODY 16066 16066-0023 1
PIPE,2ND AIR 32155 32155-4382 1
PIPE,OIL LINE 32155A 32155-4449 1
ADAPTER 41077 41077-0751 2
GUIDE-VALVE,EXHAUST 49002 49002-1002 2
THERMOSTAT 49054 49054-1053 1
BOLT,FLANGED,6X38 92001 92001-1105 8
BOLT,BANJO,10X25 92002 92002-1170 1
STUD,8X22 92004 92004-1217 4
FITTING 92005 92005-0715 1
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
PIN,DOWEL,6.3X8X14 92042 92042-007 8
RING-O,10MM 92055 92055-1149 1
BOLT,FLANGED,6X30 92151 92151-1105 2
BOLT,6X14 92151A 92151-1810 3
BOLT,SOCKET,6X20 92153 92153-1364 2
BOLT,FLANGED,10X191 92153A 92153-1797 4
DAMPER 92161 92161-2424 2
CLAMP,62MM 92173 92173-0922 1
BOLT-FLANGED,5X8 130 130BD0508 1
BOLT-FLANGED-SMALL,6X14 132 132BA0614 2
BOLT-FLANGED-SMALL,6X18 132A 132BA0618 4
BOLT-FLANGED-SMALL,6X30 132B 132BA0630 1
BOLT-FLANGED-SMALL,6X85 132C 132BA0685 2
BOLT-FLANGED-SMALL,6X12 132D 132BD0612 1
O RING,15MM 670 670B2015 2
O RING,6MM 670A 670D1506 2
O RING,48MM 670B 670D3048 1
