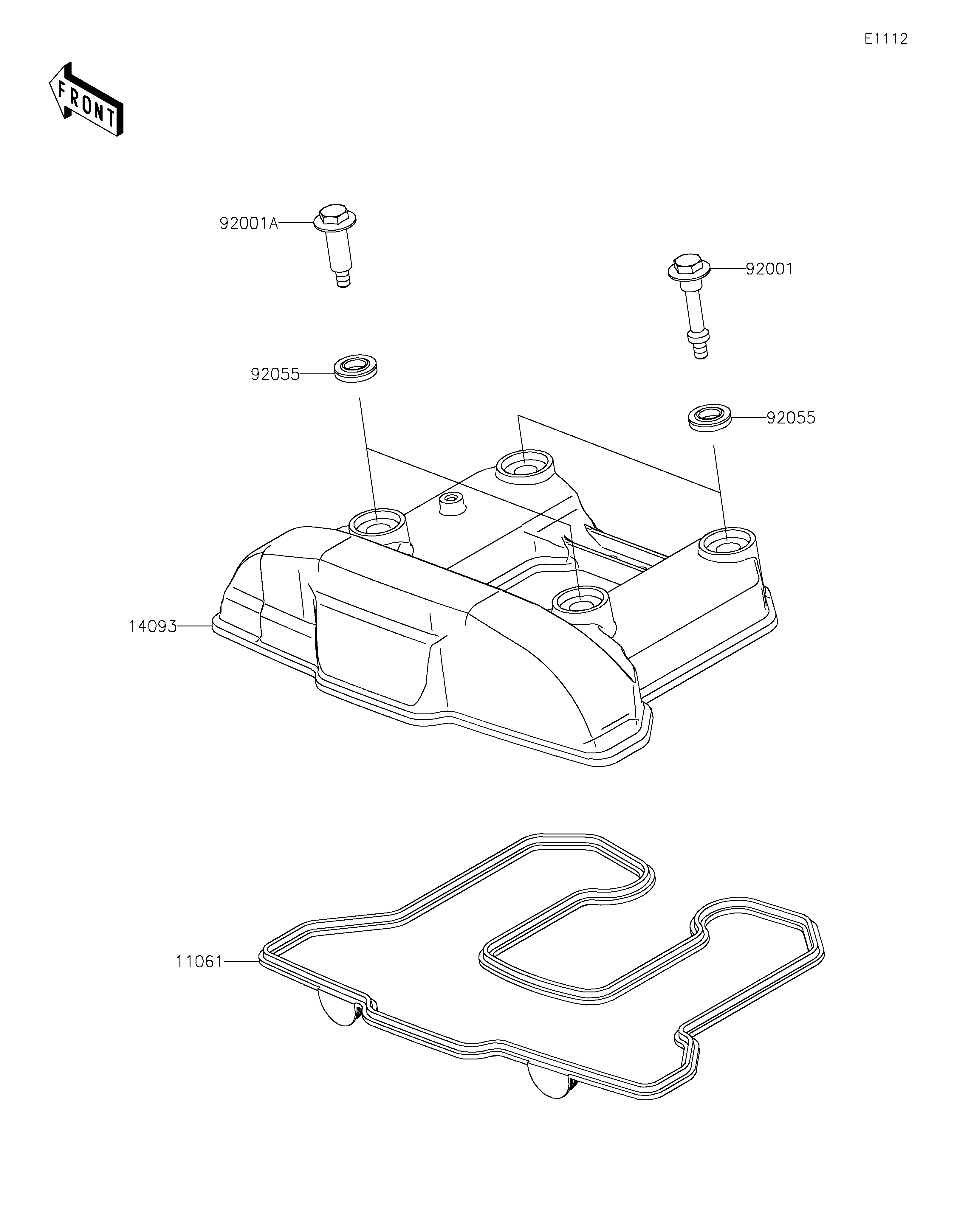

11061
14093
92001
92001A
92055
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,HEAD COVER 11061 11061-1390 1
COVER,HEAD 14093 14093-0059 1
BOLT,L=46.5 92001 92001-1853 2
BOLT,L=34.5 92001A 92001-1854 2
RING-O 92055 92055-0143 4
