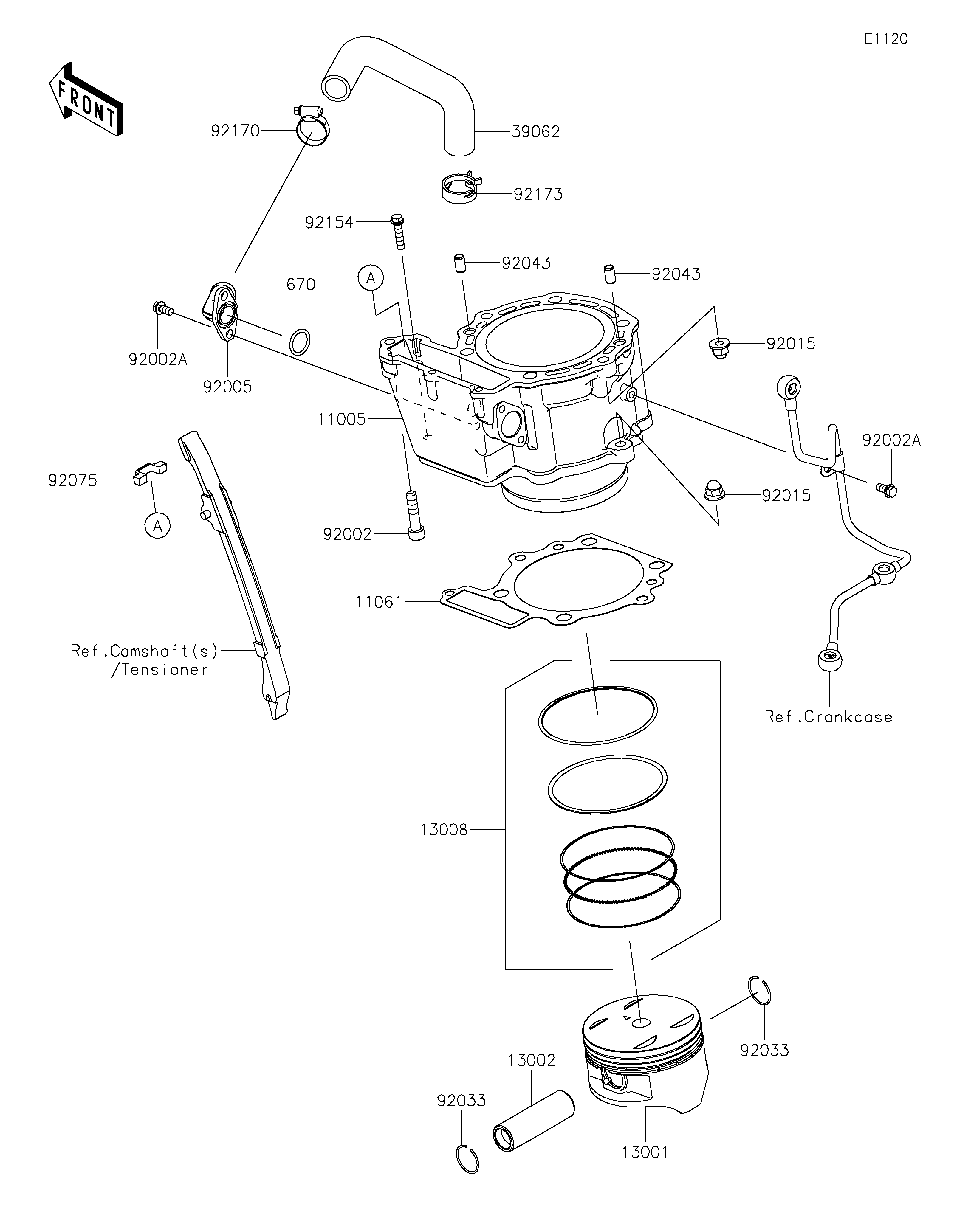

2022 KLR®650 - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
11005
11061
13001
13002
13008
39062
92002
92002A
92002A
92005
92015
92015
92033
92033
92043
92043
92075
92154
92170
92173
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-0736 1
GASKET,CYLINDER BASE 11061 11061-0428 1
PISTON-ENGINE 13001 13001-0723 1
PIN-PISTON 13002 13002-0707 1
RING-SET-PISTON 13008 13008-0595 1
HOSE-COOLING,W/P-CYLINDER 39062 39062-0150 1
BOLT,SOCKET,8X35 92002 92002-1409 1
BOLT,6X12 92002A 92002-1569 3
FITTING 92005 92005-0784 1
NUT,CAP,8MM 92015 92015-1982 4
RING-SNAP 92033 92033-1226 2
PIN,6.2X8X14 92043 92043-1263 2
DAMPER 92075 92075-1968 1
BOLT,FLANGED,6X25 92154 92154-1212 1
CLAMP,COOLING HOSE 92170 92170-1033 1
CLAMP 92173 92173-2459 1
O RING,18MM 670 670B2018 1
