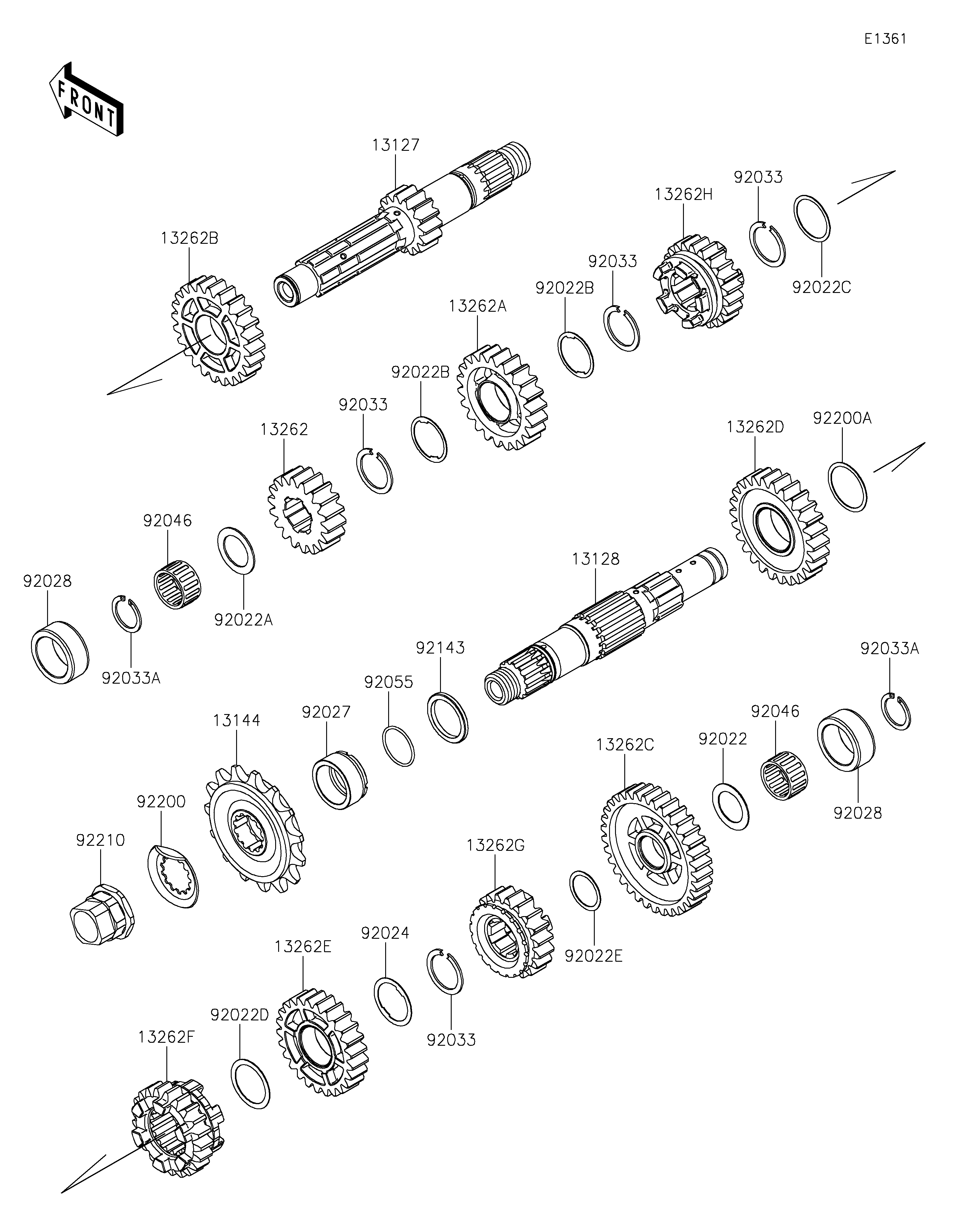

2022 KLR®650 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92022
92022A
92022B
92022B
92022C
92022D
92022E
92024
92027
92028
92028
92033
92033
92033
92033
92033A
92033A
92046
92046
92055
92143
92200
92200A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,15T 13127 13127-0711 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0727 1
SPROCKET-OUTPUT,15T 13144 13144-0597 1
GEAR,INPUT 2ND,18T 13262 13262-1489 1
GEAR,INPUT 4TH,22T 13262A 13262-1491 1
GEAR,INPUT TOP,24T 13262B 13262-1492 1
GEAR,OUTPUT LOW,34T 13262C 13262-1493 1
GEAR,OUTPUT 2ND,26T 13262D 13262-1494 1
GEAR,OUTPUT 3RD,25T 13262E 13262-1495 1
GEAR,OUTPUT 4TH,21T 13262F 13262-1618 1
GEAR,OUTPUT TOP,19T 13262G 13262-1619 1
GEAR,INPUT 3RD,22T 13262H 13262-1620 1
WASHER,20.3X30X0.7,STEEL 92022 92022-1026 1
WASHER,20.5X30X1,STEEL 92022A 92022-112 1
WASHER,TOOTHED,25.3X29.5X0.5 92022B 92022-1482 2
WASHER,25.3X30X0.5 92022C 92022-159 1
WASHER,25.3X32X0.5 92022D 92022-225 1
WASHER,20.5X25.5X0.5 92022E 92022-252 1
WASHER,TOOTHED,22.5X31X0.5 92024 92024-038 1
COLLAR,25X32X15.3 92027 92027-1800 1
BUSHING,26X35X14 92028 92028-131 2
RING-SNAP,24MM 92033 92033-026 4
RING-SNAP,18MM 92033A 92033-029 2
BEARING-NEEDLE,KT202614 92046 92046-1170 2
RING-O,21.5X1.5 92055 92055-0196 1
COLLAR,25X32X3.0 92143 92143-1721 1
WASHER 92200 92200-0851 1
WASHER,2ND GEAR 92200A 92200-1170 1
NUT,M20 92210 92210-0605 1
