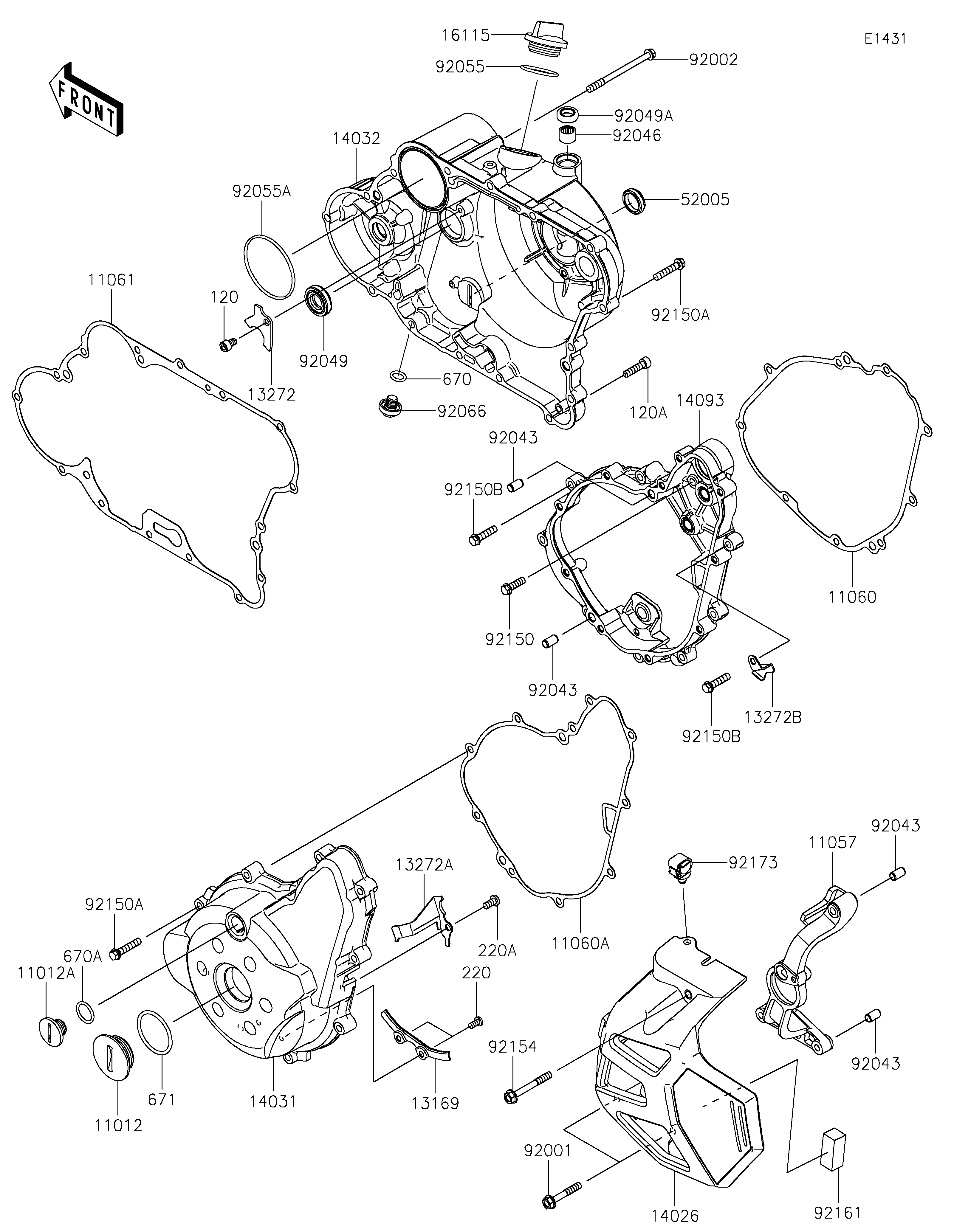

2022 KLR®650 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012A
11057
11060
11060A
11061
13169
13272
13272A
13272B
14026
14031
14032
14093
16115
52005
92001
92002
92043
92043
92043
92043
92046
92049
92049A
92055
92055A
92066
92150
92150A
92150A
92150B
92150B
92154
92161
92173
120
120A
220
220A
670
670A
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
BRACKET,SPEED SENSOR 11057 11057-4312 1
GASKET,GENERATOR CASE COVER 11060 11060-1692 1
GASKET,GENERATOR COVER 11060A 11060-1693 1
GASKET,CLUTCH COVER 11061 11061-0429 1
PLATE,PULSING COIL LEAD 13169 13169-1882 1
PLATE,OIL SEAL 13272 13272-0863 1
PLATE,GENERATOR 13272A 13272-0869 1
PLATE,GENERATOR 13272B 13272-3871 1
COVER-CHAIN 14026 14026-0153 1
COVER-GENERATOR 14031 14031-0126 1
COVER-CLUTCH 14032 14032-0674 1
COVER,GENERATOR CASE 14093 14093-1080 1
CAP-OIL FILLER 16115 16115-1068 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,6X38 92001 92001-1899 2
BOLT,FLANGED,6X80 92002 92002-1568 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
SEAL-OIL,SCY 15X30X7 92049 92049-1158 1
SEAL-OIL 92049A 92049-1560 1
RING-O,31.5X2.6 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
BOLT,6X20 92150 92150-1010 1
BOLT,6X30 92150A 92150-1021 23
BOLT,FLANGED-SMALL,6X25 92150B 92150-1779 8
BOLT,FLANGED,6X50 92154 92154-4222 1
DAMPER,15X35X15 92161 92161-2359 1
CLAMP,12MM DIA. 92173 92173-0736 1
BOLT-SOCKET,6X10 120 120CA0610 1
BOLT-SOCKET,6X25 120A 120CB0625 1
SCREW-PAN-CROS,5X10 220 220AA0510 2
SCREW-PAN-CROS,6X12 220A 220AA0612 1
O RING,11MM 670 670B2011 1
O RING,18MM 670A 670B2018 1
O RING,40MM 671 671B2540 1
