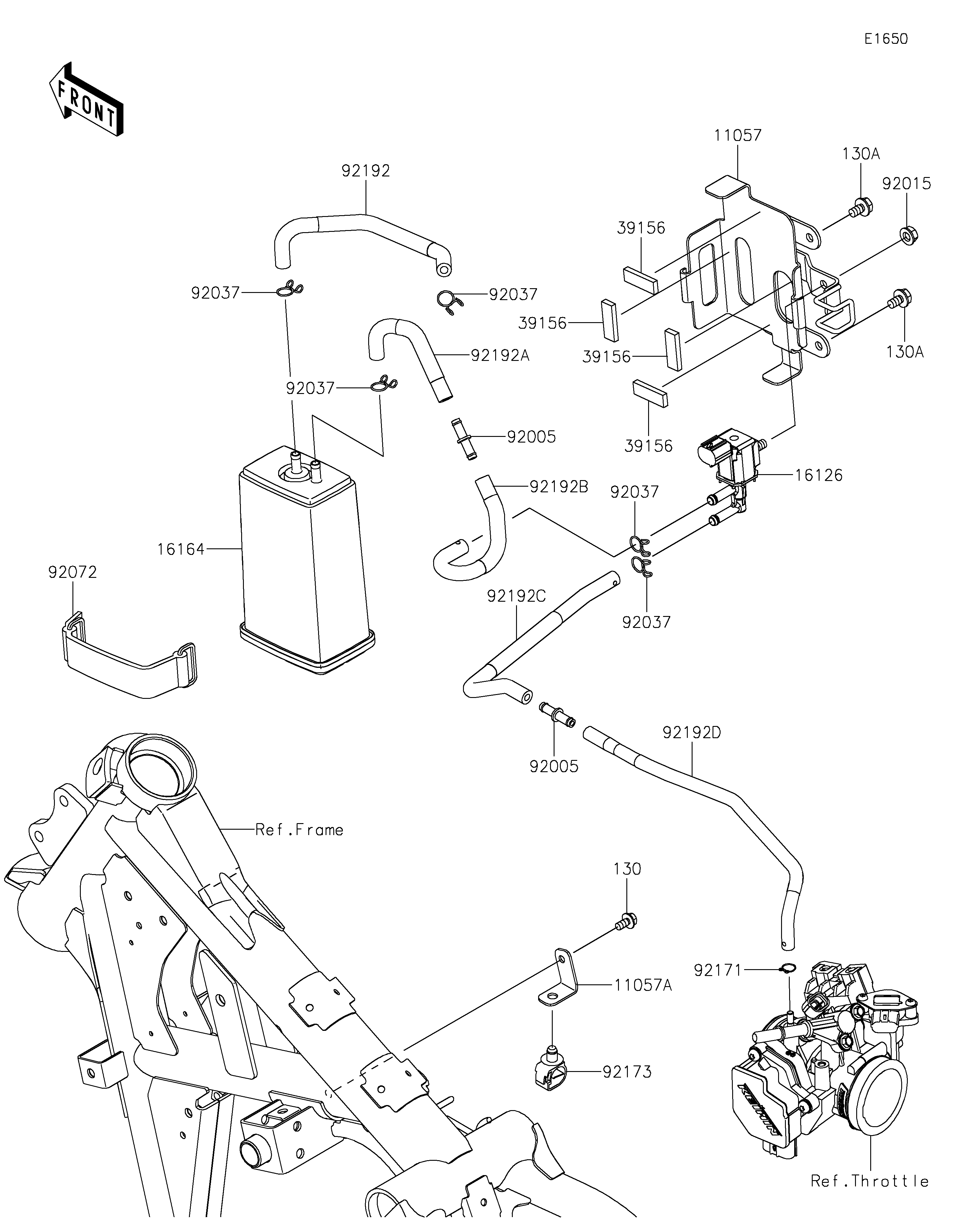

2022 KLR®650 - Fuel Evaporative System(CA)
11057
11057A
16126
16164
39156
39156
39156
39156
92005
92005
92015
92037
92037
92037
92037
92037
92072
92171
92173
92192
92192A
92192B
92192C
92192D
130
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-4309 | 1 | CA | |
| BRACKET,EVAPO TUBE | 11057A | 11057-4394 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0012 | 1 | CA | |
| PAD,10X30X4 | 39156 | 39156-0927 | 4 | CA | |
| FITTING | 92005 | 92005-0721 | 2 | CA | |
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| CLAMP,TUBE | 92037 | 92037-147 | 5 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 1 | CA | |
| CLAMP | 92171 | 92171-0573 | 1 | CA | |
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 1 | CA | |
| TUBE,TANK-CANISTER | 92192 | 92192-2455 | 1 | CA | |
| TUBE,CANISTER-FITTING | 92192A | 92192-2456 | 1 | CA | |
| TUBE,FITTING-VALVE | 92192B | 92192-2457 | 1 | CA | |
| TUBE,VALVE-FITTING | 92192C | 92192-2458 | 1 | CA | |
| TUBE,FITTING-THROTTLEBODY | 92192D | 92192-2591 | 1 | CA | |
| BOLT-FLANGED,5X10 | 130 | 130BA0510 | 1 | CA | |
| BOLT-FLANGED,6X10 | 130A | 130BA0610 | 2 | CA |
| BRACKET,CANISTER | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET,EVAPO TUBE | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| PAD,10X30X4 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=90 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,12MM DIA. | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-CANISTER | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-FITTING | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-VALVE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,VALVE-FITTING | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,FITTING-THROTTLEBODY | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,5X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
