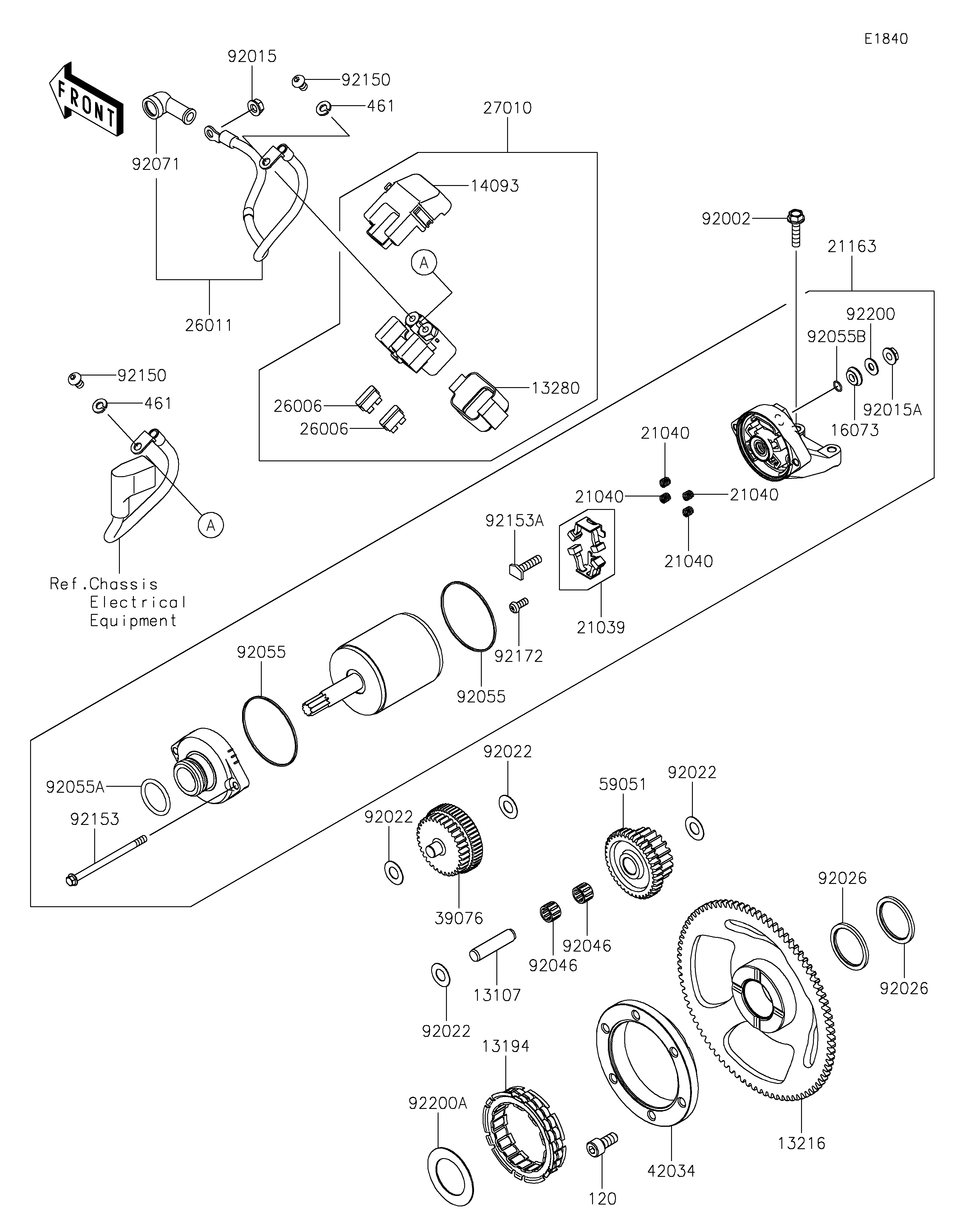

2022 KLR®650 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13107
13194
13216
13280
14093
16073
21039
21040
21040
21040
21040
21163
26006
26006
26011
27010
39076
42034
59051
92002
92015
92015A
92022
92022
92022
92022
92026
92026
92046
92046
92055
92055
92055A
92055B
92071
92150
92150
92153
92153A
92172
92200
92200A
120
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,IDLER 13107 13107-1135 1
CLUTCH-ONEWAY 13194 13194-1089 1
GEAR-COMP,ONEWAY CLUTCH 13216 13216-0044 1
HOLDER 13280 13280-0710 1
COVER 14093 14093-0199 1
INSULATOR 16073 16073-0053 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
STARTER-ELECTRIC 21163 21163-0790 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD,STARTER 26011 26011-1938 1
SWITCH,MAGNETIC 27010 27010-0948 1
LIMITER,STARTER IDLE GEAR 39076 39076-0021 1
COUPLING 42034 42034-1094 1
GEAR-SPUR,20T & 37T 59051 59051-1133 1
BOLT,FLANGED,6X25 92002 92002-1086 2
NUT,FLANGED,6MM 92015 92015-1367 1
NUT,STARTER MOTOR 92015A 92015-1476 1
WASHER,10.2X20X0.5 92022 92022-1649 4
SPACER 92026 92026-1474 2
BEARING-NEEDLE,K10X14X10 92046 92046-1134 2
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
GROMMET 92071 92071-0705 1
BOLT,6X10 92150 92150-1577 2
BOLT 92153 92153-1850 2
BOLT 92153A 92153-1866 1
SCREW 92172 92172-0334 1
WASHER 92200 92200-0386 1
WASHER,32.2X50 92200A 92200-0555 1
BOLT-SOCKET,8X18 120 120CA0818 6
WASHER-SPRING,6MM 461 461DB0600 2
