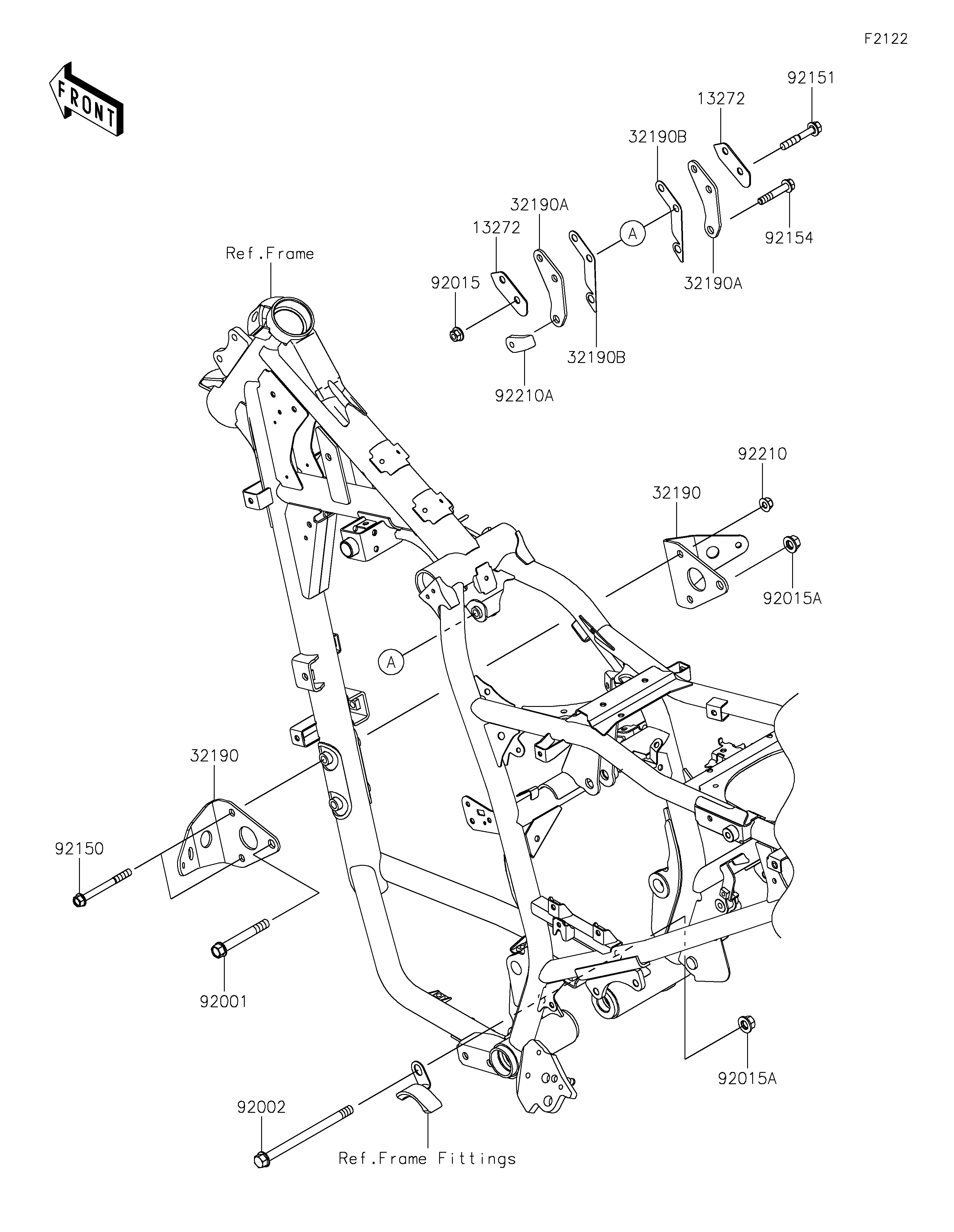

2022 KLR®650 - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
13272
13272
32190
32190
32190A
32190A
32190B
32190B
92001
92002
92015
92015A
92015A
92150
92151
92154
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-3910 2
BRACKET-ENGINE,LWR 32190 32190-0858 2
BRACKET-ENGINE,UPP 32190A 32190-0859 2
BRACKET-ENGINE 32190B 32190-0860 2
BOLT,10X75 92001 92001-4021 1
BOLT,10X145 92002 92002-1348 1
NUT,FLANGED,8MM 92015 92015-1406 2
NUT,FLANGED,10MM 92015A 92015-1415 2
BOLT,8X80 92150 92150-1162 2
BOLT,8X50 92151 92151-1463 2
BOLT,FLANGED,8X45 92154 92154-3733 1
NUT,FLANGED,LOCK,8MM 92210 92210-0159 2
NUT,PLATE,8MM 92210A 92210-0608 1
