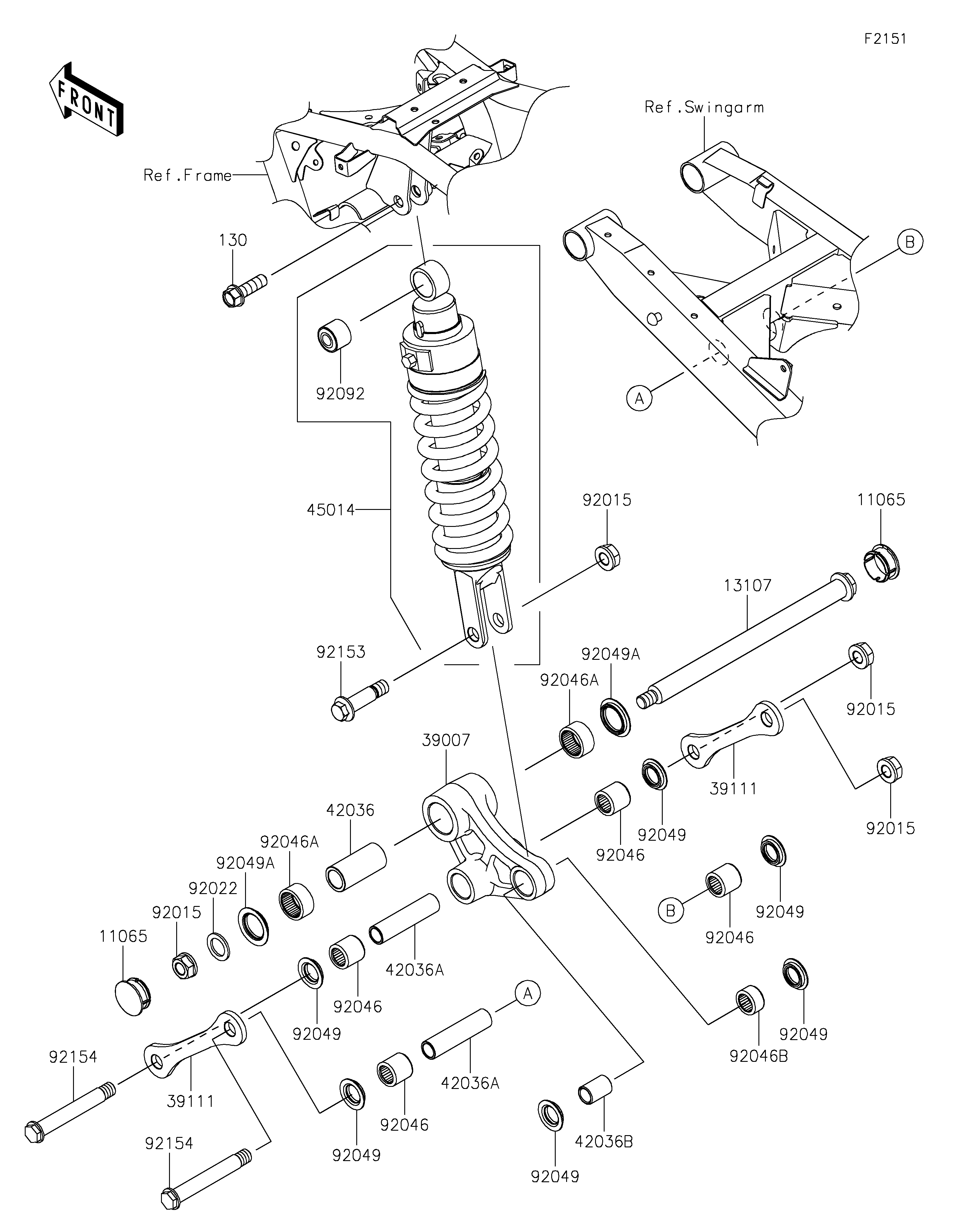

2022 KLR®650 - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13107
39007
39111
39111
42036
42036A
42036A
42036B
45014
92015
92015
92015
92015
92022
92046
92046
92046
92046
92046A
92046A
92046B
92049
92049
92049
92049
92049
92049
92049A
92049A
92092
92153
92154
92154
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,32X14 11065 11065-0822 2
SHAFT,SUSPENSION ARM 13107 13107-0928 1
ARM-SUSP,UNI TRAK 39007 39007-0075 1
ROD-TIE,SUSPENSION 39111 39111-0386 2
SLEEVE,20X28X60 42036 42036-0071 1
SLEEVE,15X20X82 42036A 42036-0072 2
SLEEVE,15X20X30 42036B 42036-0073 1
SHOCKABSORBER 45014 45014-0693 1
NUT,14MM 92015 92015-1459 4
WASHER,20X30X2.3 92022 92022-1568 1
BEARING-NEEDLE,BM202726 92046 92046-1110 4
BEARING-NEEDLE,BM2817 92046A 92046-1111 2
BEARING-NEEDLE,BM202715 92046B 92046-1112 1
SEAL-OIL,ARM 92049 92049-1109 6
SEAL-OIL,28X34X5.7 92049A 92049-1181 2
BUSHING-RUBBER 92092 92092-1063 1
BOLT,FLANGED,14X56 92153 92153-1692 1
BOLT,FLANGED,14X108 92154 92154-1427 2
BOLT-FLANGED,12X40 130 130BA1240 1
