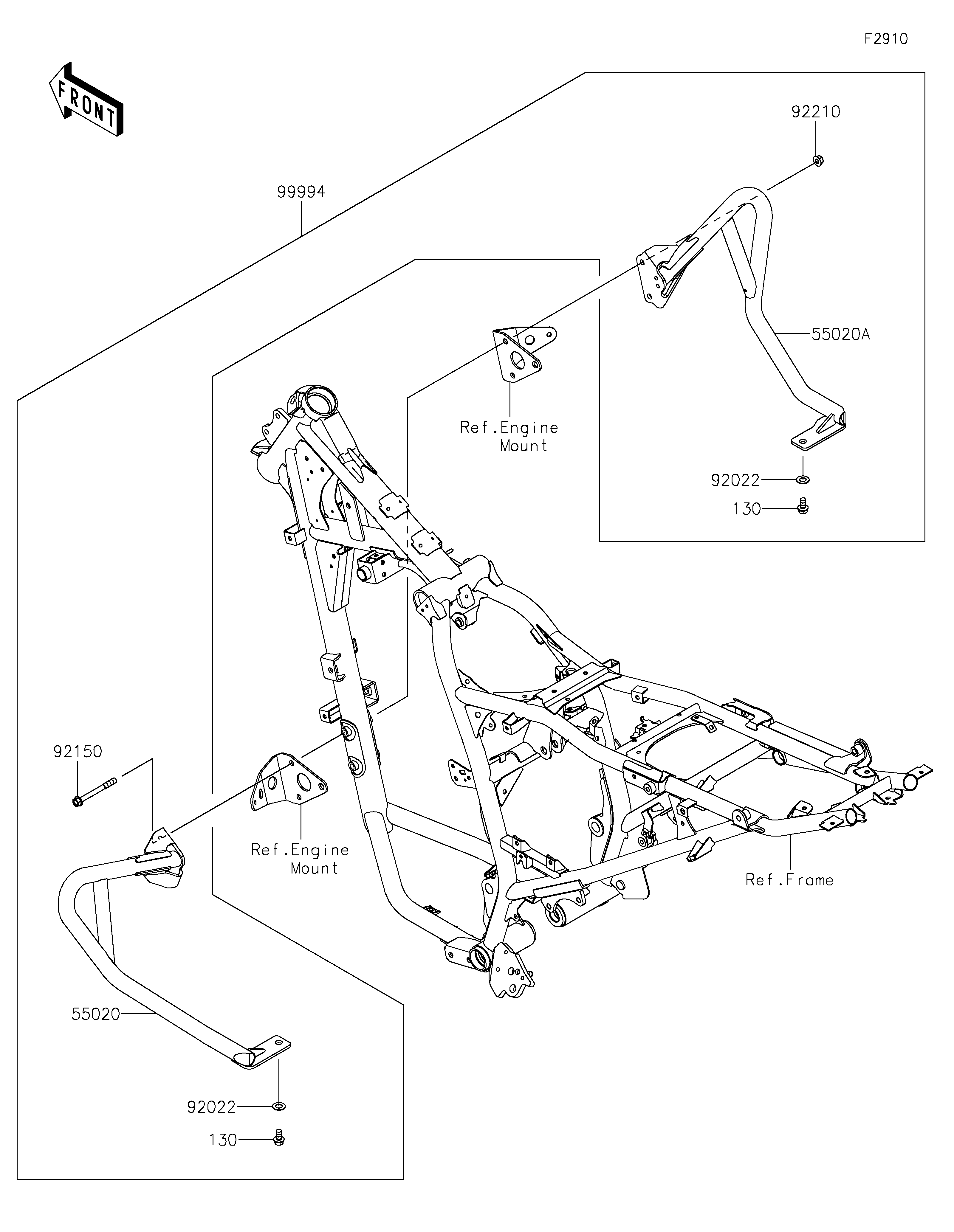

55020
55020A
92022
92022
92150
92210
99994
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUARD,LH 55020 55020-2341 1
GUARD,RH 55020A 55020-2342 1
WASHER,10.5X20X1 92022 92022-239 2
BOLT,8X80 92150 92150-1162 2
NUT,FLANGED,LOCK,8MM 92210 92210-0159 2
FRAME SLIDER 99994 99994-1497 1
BOLT-FLANGED,8X16 130 130CA0816 2
