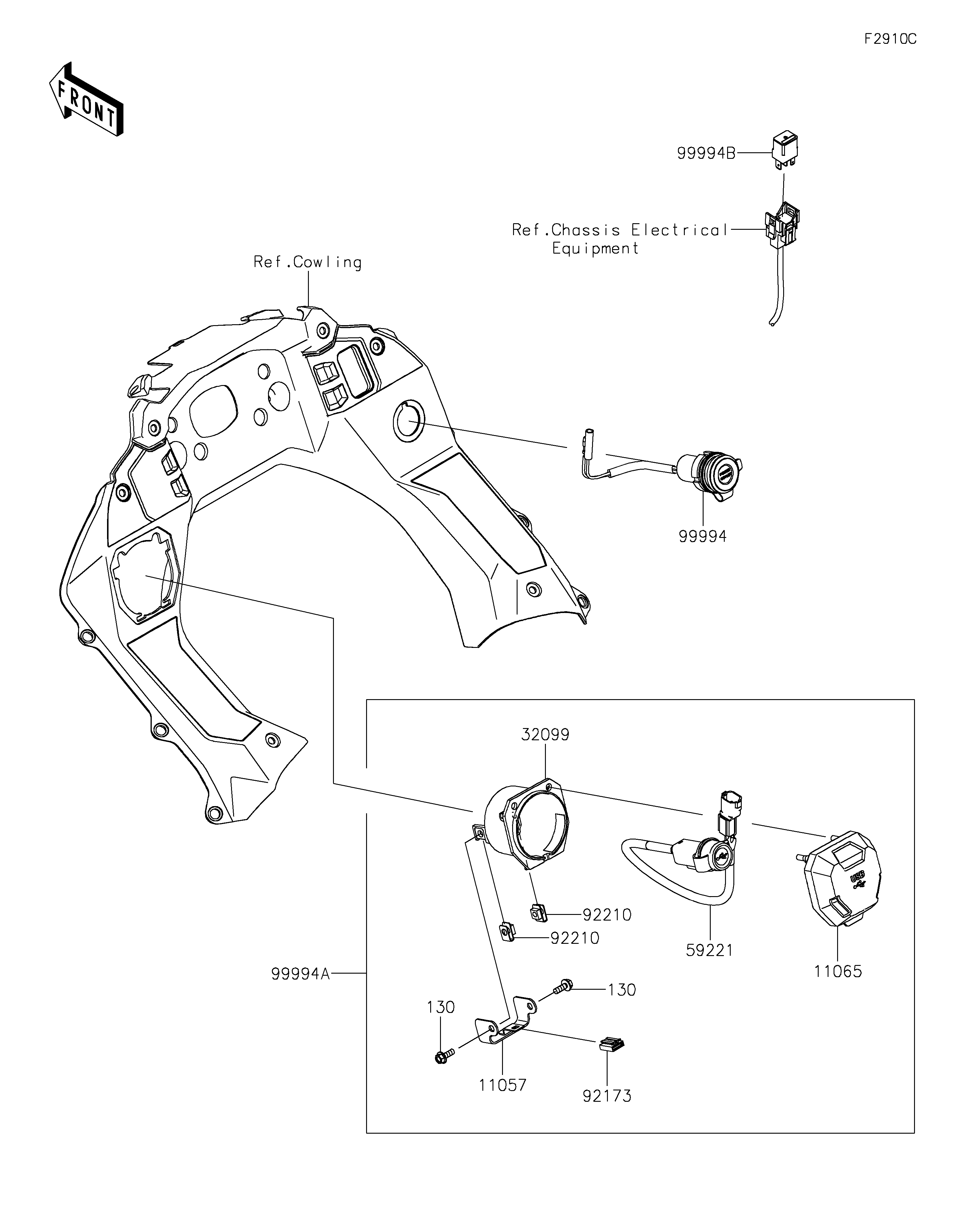

11057
11065
32099
59221
92173
92210
92210
99994
99994A
99994B
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-4390 1
CAP,USB 11065 11065-1359 1
CASE,USB 32099 32099-0822 1
CONNECTOR-CORD,USB 59221 59221-0021 1
CLAMP 92173 92173-2464 1
NUT,PLATE,5MM 92210 92210-0935 2
KIT-ACCESSORY,DC OUTPUT 99994 99994-0485 1
USB OUTLET 99994A 99994-1500 1
RELAY-ACCESSORY 99994B 99994-1502 1
BOLT-FLANGED,5X14 130 130BA0514 2
