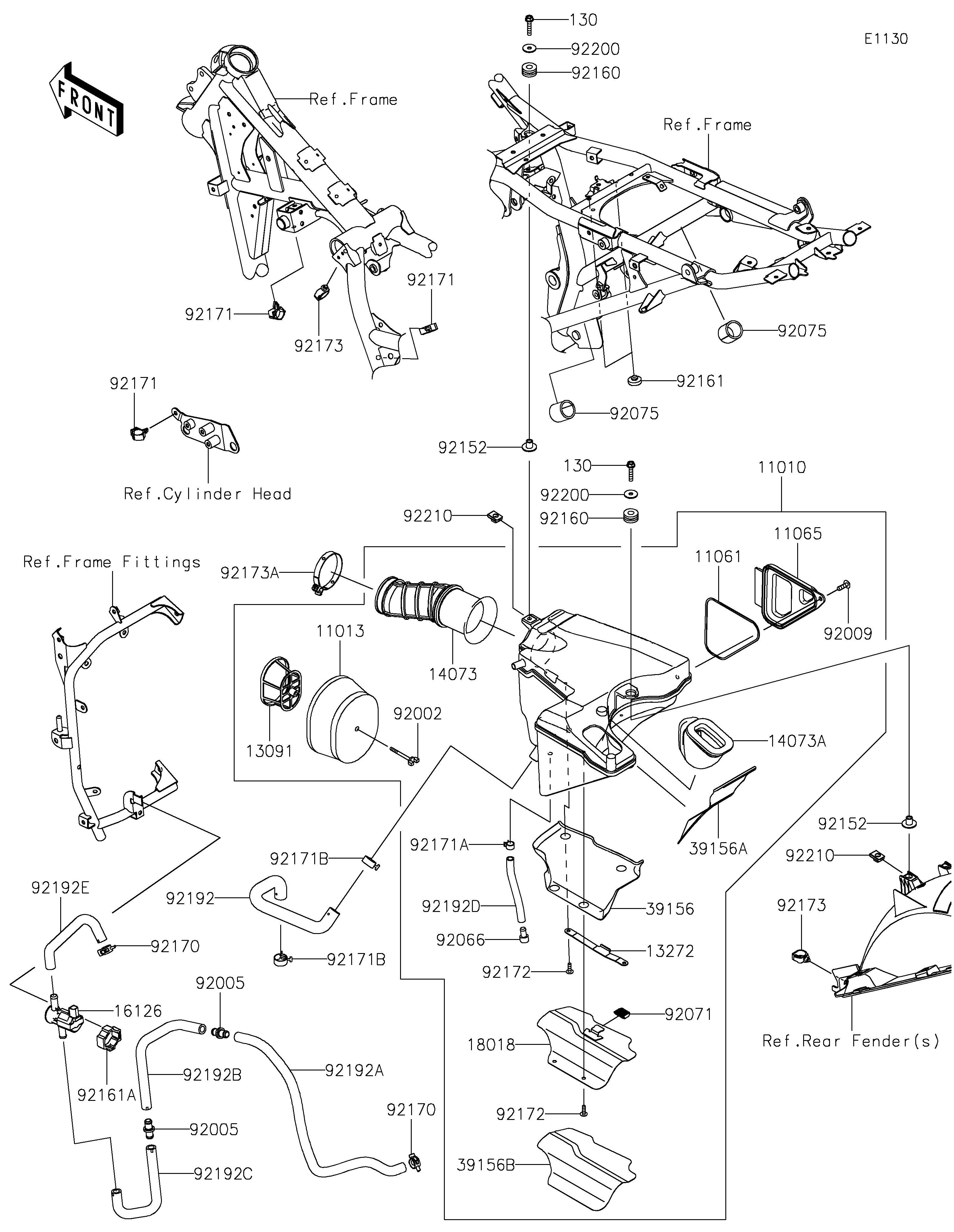

2022 KLR®650 Adventure - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11061
11065
13091
13272
14073
14073A
16126
18018
39156
39156A
39156B
92002
92005
92005
92009
92066
92071
92075
92075
92152
92152
92160
92160
92161
92161A
92170
92170
92171
92171
92171
92171A
92171B
92171B
92172
92172
92173
92173
92173A
92192
92192A
92192B
92192C
92192D
92192E
92200
92200
92210
92210
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1805 1
ELEMENT-AIR FILTER 11013 11013-1152 1
GASKET 11061 11061-1393 1
CAP 11065 11065-1373 1
HOLDER 13091 13091-1473 1
PLATE 13272 13272-3875 1
DUCT 14073 14073-0993 1
DUCT 14073A 14073-0994 1
VALVE,AIR SWITCHING 16126 16126-0033 1
PLATE-HEAT GUARD 18018 18018-0641 1
PAD 39156 39156-2760 1
PAD 39156A 39156-2761 1
PAD 39156B 39156-2793 1
BOLT 92002 92002-1904 1
FITTING 92005 92005-1379 2
SCREW 92009 92009-1460 1
PLUG,DRAIN,8.5X15 92066 92066-0127 1
GROMMET 92071 92071-0786 1
DAMPER,25X31X30 92075 92075-1906 2
COLLAR,6.5X10.5X13.1 92152 92152-0547 2
DAMPER 92160 92160-1162 2
DAMPER 92161 92161-0336 2
DAMPER,ASWV 92161A 92161-0499 1
CLAMP 92170 92170-1118 2
CLAMP,BRAKE HOSE 92171 92171-0316 3
CLAMP,12MM 92171A 92171-1870 1
CLAMP 92171B 92171-1890 2
SCREW,TAPPING,5X16 92172 92172-0280 4
CLAMP,HOLDER CLIP 92173 92173-0868 2
CLAMP,62MM 92173A 92173-0922 1
TUBE,BREATHER 92192 92192-2463 1
TUBE,FITTING-A/C 92192A 92192-2464 1
TUBE,FITTING-FITTING 92192B 92192-2465 1
TUBE,ASWV-FITTING 92192C 92192-2466 1
TUBE 92192D 92192-2493 1
TUBE,ASWV-REED VALVE 92192E 92192-2500 1
WASHER,6.5X22X1.6 92200 92200-1087 2
NUT,6MM 92210 92210-0474 2
BOLT-FLANGED,6X30 130 130BB0630 2
