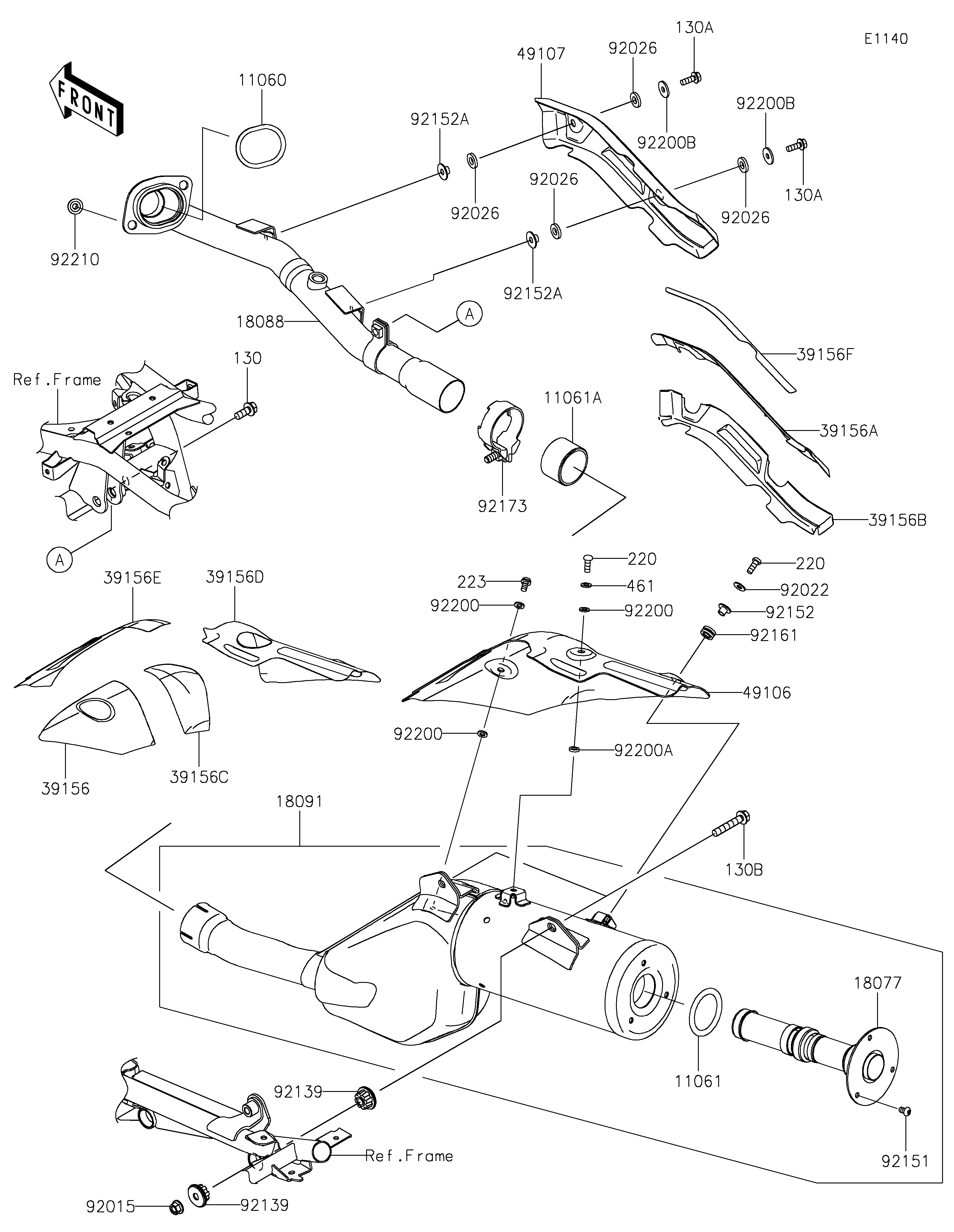

2022 KLR®650 Adventure - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
11061A
18077
18088
18091
39156
39156A
39156B
39156C
39156D
39156E
39156F
49106
49107
92015
92022
92026
92026
92026
92026
92139
92139
92151
92152
92152A
92152A
92161
92173
92200
92200
92200
92200A
92200B
92200B
92210
130
130A
130A
130B
220
220
223
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11060 11060-1108 1
GASKET 11061 11061-1345 1
GASKET,EXHAUST PIPE CONNECTING 11061A 11061-1411 1
ARRESTER-SPARK 18077 18077-0050 1
PIPE-EXHAUST 18088 18088-1665 1
BODY-COMP-MUFFLER 18091 18091-1207 1
PAD,MUFFLER COVER,FR 39156 39156-2693 1
PAD,EXHAUST PIPE COVER,CNT 39156A 39156-2698 1
PAD,EXHAUST PIPE COVER,LWR 39156B 39156-2699 1
PAD,MUFFLER COVER,CNT 39156C 39156-2738 1
PAD,MUFFLER COVER,RR 39156D 39156-2773 1
PAD,MUFFLER COVER,UPP 39156E 39156-2774 1
PAD,EXHAUST PIPE COVER,UPP 39156F 39156-2798 1
COVER-MUFFLER 49106 49106-0857 1
COVER-EXHAUST PIPE 49107 49107-0849 1
NUT,8MM 92015 92015-1402 2
WASHER,6.2X15X1.2 92022 92022-2373 1
SPACER,8.7X18X3 92026 92026-0919 4
BUSHING 92139 92139-1116 4
BOLT,SOCKET,6X10 92151 92151-1449 3
COLLAR 92152 92152-2837 1
COLLAR 92152A 92152-2862 2
DAMPER 92161 92161-2434 1
CLAMP 92173 92173-2463 1
WASHER,6.2X11.5X1.5 92200 92200-2496 3
WASHER,6.2X11.5X2.5 92200A 92200-2511 1
WASHER,6.5X20X2 92200B 92200-2529 2
NUT,8MM 92210 92210-1114 2
BOLT-FLANGED,8X20 130 130BD0820 1
BOLT-FLANGED,6X18 130A 130CB0618 2
BOLT-FLANGED 130B 130CC0845 2
SCREW-PAN-CROS,6X16 220 220AB0616 2
SCREW-PAN-WS-CROS,6X12 223 223AB0612 1
WASHER-SPRING,6MM 461 461DB0600 1
