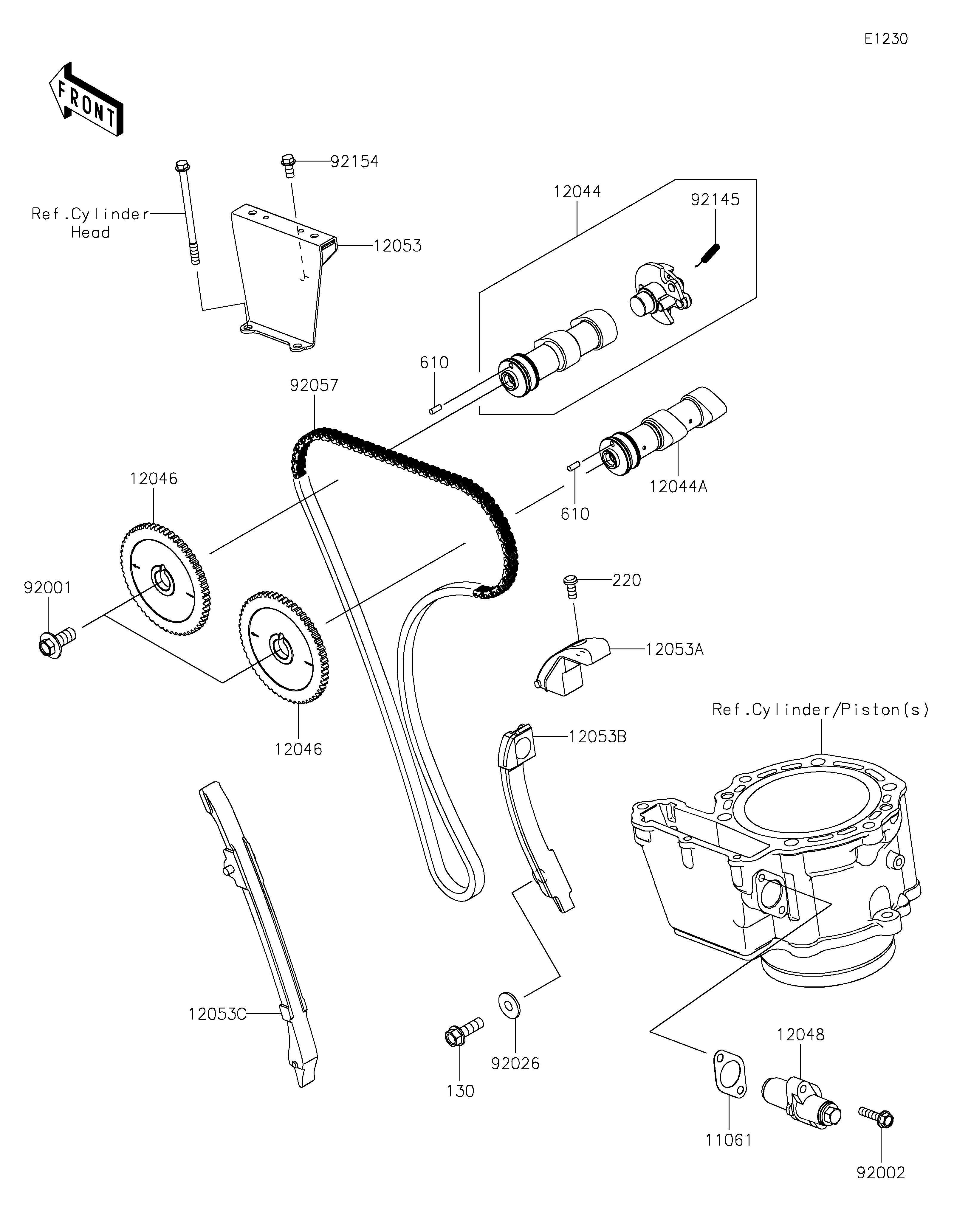

2022 KLR®650 Adventure - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
11061
12044
12044A
12046
12046
12048
12053
12053A
12053B
12053C
92001
92002
92026
92057
92145
92154
130
220
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TENSIONER 11061 11061-0427 1
CAMSHAFT-VALVE,EXHAUST 12044 12044-1522 1
CAMSHAFT-VALVE,INTAKE 12044A 12044-1523 1
SPROCKET,48T 12046 12046-1160 2
TENSIONER-ASSY,CAM CHAIN 12048 12048-1141 1
GUIDE-CHAIN,UPP 12053 12053-0314 1
GUIDE-CHAIN,LWR 12053A 12053-1134 1
GUIDE-CHAIN,RR 12053B 12053-1222 1
GUIDE-CHAIN,FR 12053C 12053-1223 1
BOLT,10X23 92001 92001-1859 2
BOLT,FLANGED,6X25 92002 92002-1086 2
SPACER 92026 92026-1146 1
CHAIN,CAM,92RH2015 92057 92057-0671 1
SPRING,DECOMPRESSOR 92145 92145-1984 1
BOLT,FLANGED,6X12 92154 92154-0358 1
BOLT-FLANGED,8X25 130 130BA0825 1
SCREW-PAN-CROS,6X14 220 220AA0614 1
ROLLER,4X10 610 610A0410 2
