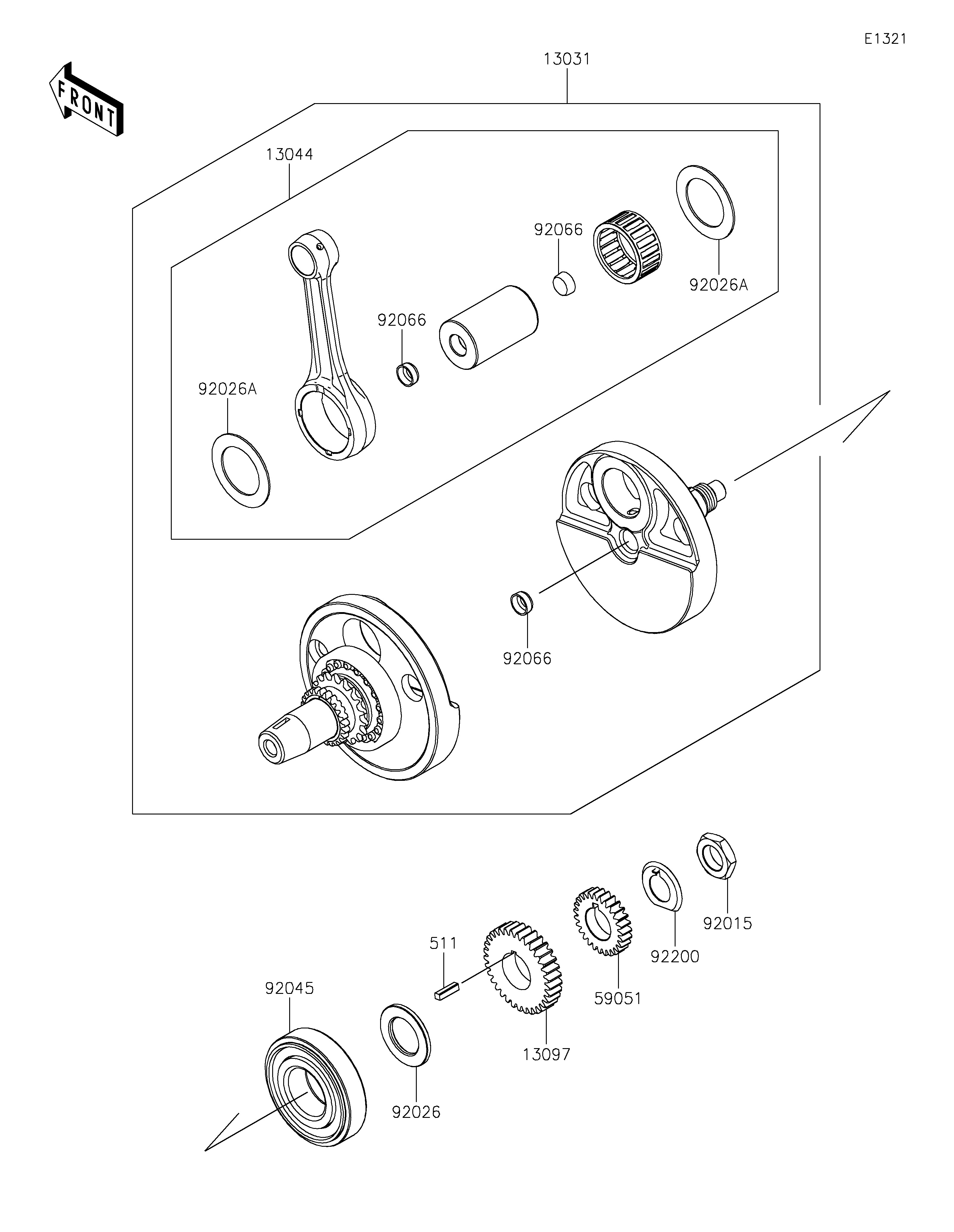

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-0977 1
SET-CONNECTING ROD 13044 13044-5089 1
GEAR-PRIMARY SPUR,33T 13097 13097-1333 1
GEAR-SPUR,27T 59051 59051-1145 1
NUT,22MM 92015 92015-1890 1
SPACER 92026 92026-0150 1
SPACER,40X60X1.5 92026A 92026-0152 2
BEARING-BALL,40X90X23 92045 92045-0065 1
PLUG 92066 92066-1154 3
WASHER 92200 92200-0557 1
KEY-SUNK 511 511A0520 1
