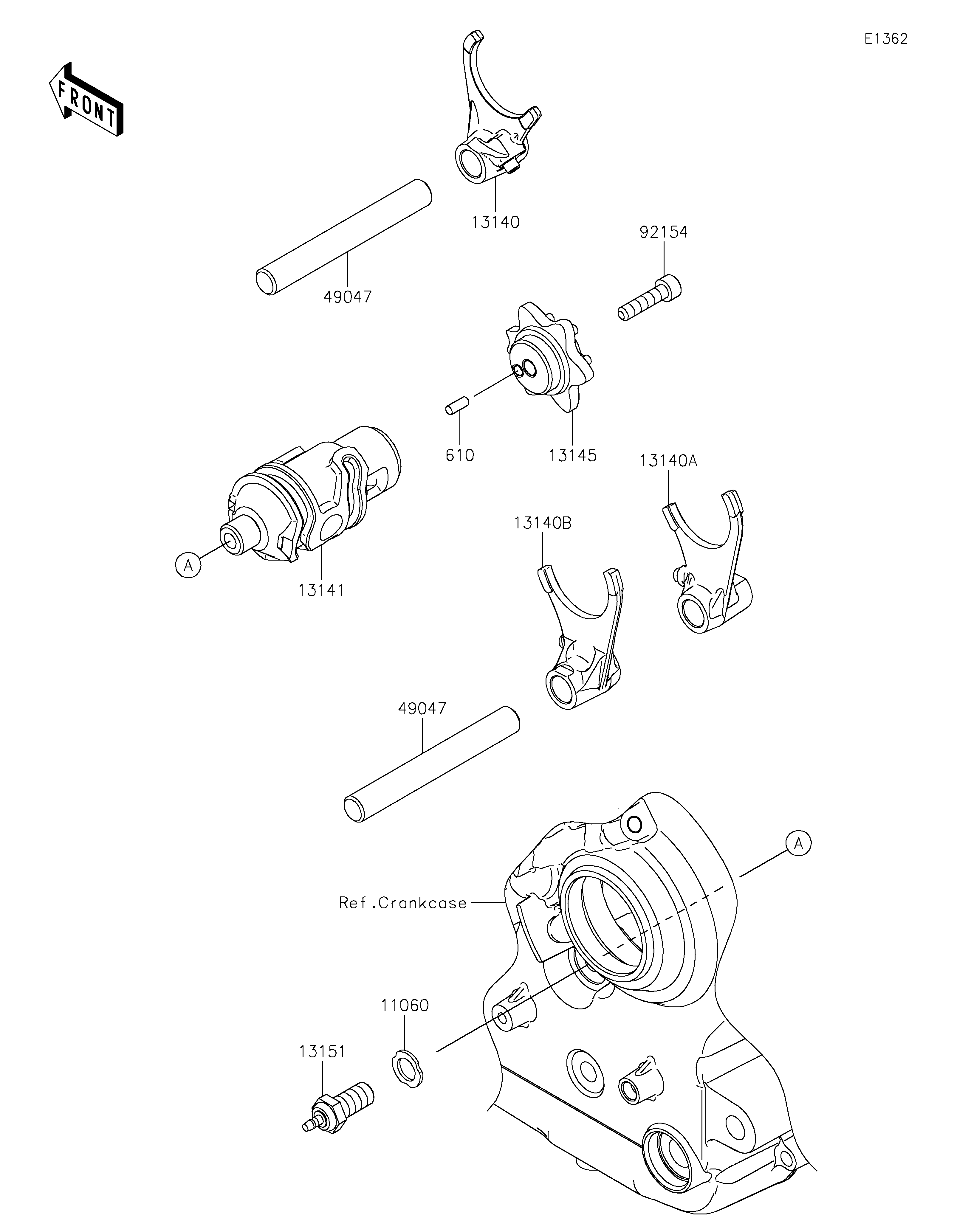

2022 KLR®650 Adventure - Gear Change Drum/Shift Fork(s)

11060
13140
13140A
13140B
13141
13145
13151
49047
49047
92154
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10.5X16X1.5 11060 11060-1676 1
FORK-SHIFT 13140 13140-0694 1
FORK-SHIFT,LOW 13140A 13140-1023 1
FORK-SHIFT,2ND&3RD 13140B 13140-1024 1
DRUM-CHANGE 13141 13141-0613 1
CAM-CHANGE DRUM 13145 13145-0050 1
SWITCH-COMP 13151 13151-0559 1
ROD-SHIFT,L=93.7 49047 49047-0039 2
BOLT,SOCKET,6X25 92154 92154-0477 1
ROLLER,4X10 610 610A0410 1
