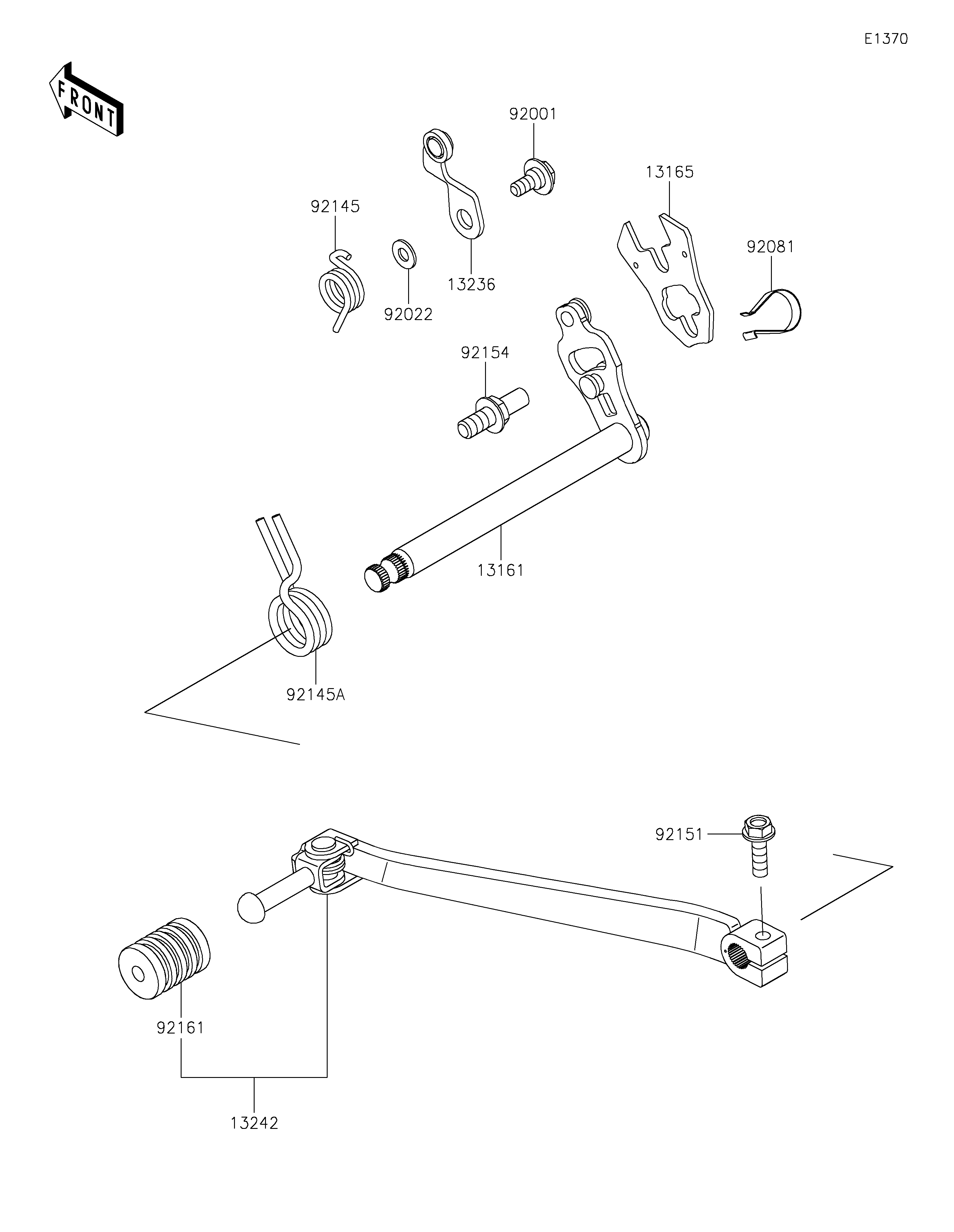

2022 KLR®650 Adventure - Gear Change Mechanism

13161
13165
13236
13242
92001
92022
92081
92145
92145A
92151
92154
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHAFT 13161 13161-0065 1
PAWL 13165 13165-1120 1
LEVER-COMP 13236 13236-0200 1
LEVER-ASSY-CHANGE 13242 13242-0175 1
BOLT,FLANGED,6X14 92001 92001-1715 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPRING,CHANGE LEVER 92081 92081-1493 1
SPRING 92145 92145-0773 1
SPRING,CHANGE PEDAL RETURN 92145A 92145-0774 1
BOLT,6X20 92151 92151-1450 1
BOLT,RETURN SPRING 92154 92154-1838 1
DAMPER,CHANGE PEDAL 92161 92161-1652 1
