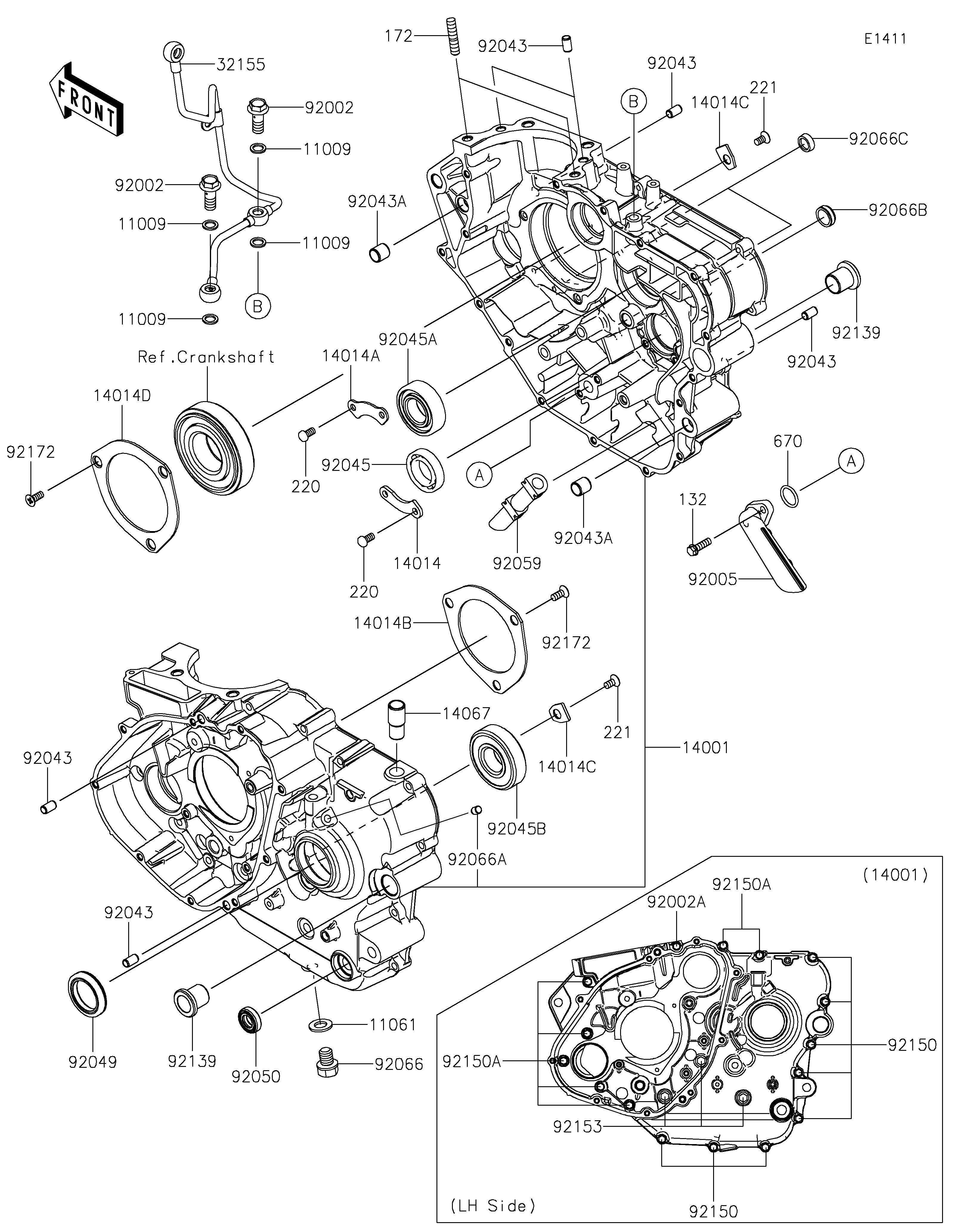

2022 KLR®650 Adventure - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11009
11009
11061
14001
14014
14014A
14014B
14014C
14014C
14014D
14067
32155
92002
92002
92002A
92005
92043
92043
92043
92043
92043
92043A
92043A
92045
92045A
92045B
92049
92050
92059
92066
92066A
92066B
92066C
92139
92139
92150
92150
92150A
92150A
92153
92172
92172
132
172
220
220
221
221
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14.5X1.5 11009 11009-1105 4
GASKET,12X22X2 11061 11061-0417 1
SET-CRANKCASE 14001 14001-0730 1
PLATE-POSITION 14014 14014-0045 1
PLATE-POSITION 14014A 14014-0562 1
PLATE-POSITION 14014B 14014-1051 1
PLATE-POSITION 14014C 14014-1057 2
PLATE-POSITION 14014D 14014-1083 1
FITTING,BREATHER 14067 14067-006 1
PIPE,CRANKCASE-HEAD 32155 32155-4450 1
BOLT,BANJO,10X25 92002 92002-1170 2
BOLT,FLANGED,6X60 92002A 92002-1567 1
FITTING 92005 92005-1152 1
PIN,6.2X8X14 92043 92043-1263 6
PIN,11.5X14X14 92043A 92043-1279 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL,TMB205 92045A 92045-1105 1
BEARING-BALL,TM-SX0597LU 92045B 92045-1127 1
SEAL-OIL,32X45X7.5 92049 92049-0825 1
SEAL-OIL 92050 92050-082 1
TUBE,BREATHER 92059 92059-1833 1
PLUG,OIL DRAIN,12X15 92066 92066-0767 1
PLUG,OIL LINE,7.2X8 92066A 92066-1012 1
PLUG,RCA207 92066B 92066-1264 1
PLUG 92066C 92066-1282 2
BUSHING 92139 92139-1117 2
BOLT,6X30 92150 92150-1021 8
BOLT,6X50 92150A 92150-1968 7
BOLT,FLANGED-SMALL,8X80 92153 92153-1323 3
SCREW,6X15 92172 92172-0144 6
BOLT-FLANGED-SMALL,6X20 132 132BA0620 2
BOLT-STUD,8X22 172 172BA0822 2
SCREW-PAN-CROS,6X12 220 220AA0612 4
SCREW-CSK-CROS,6X12 221 221AA0612 2
O RING,18MM 670 670D2018 1
