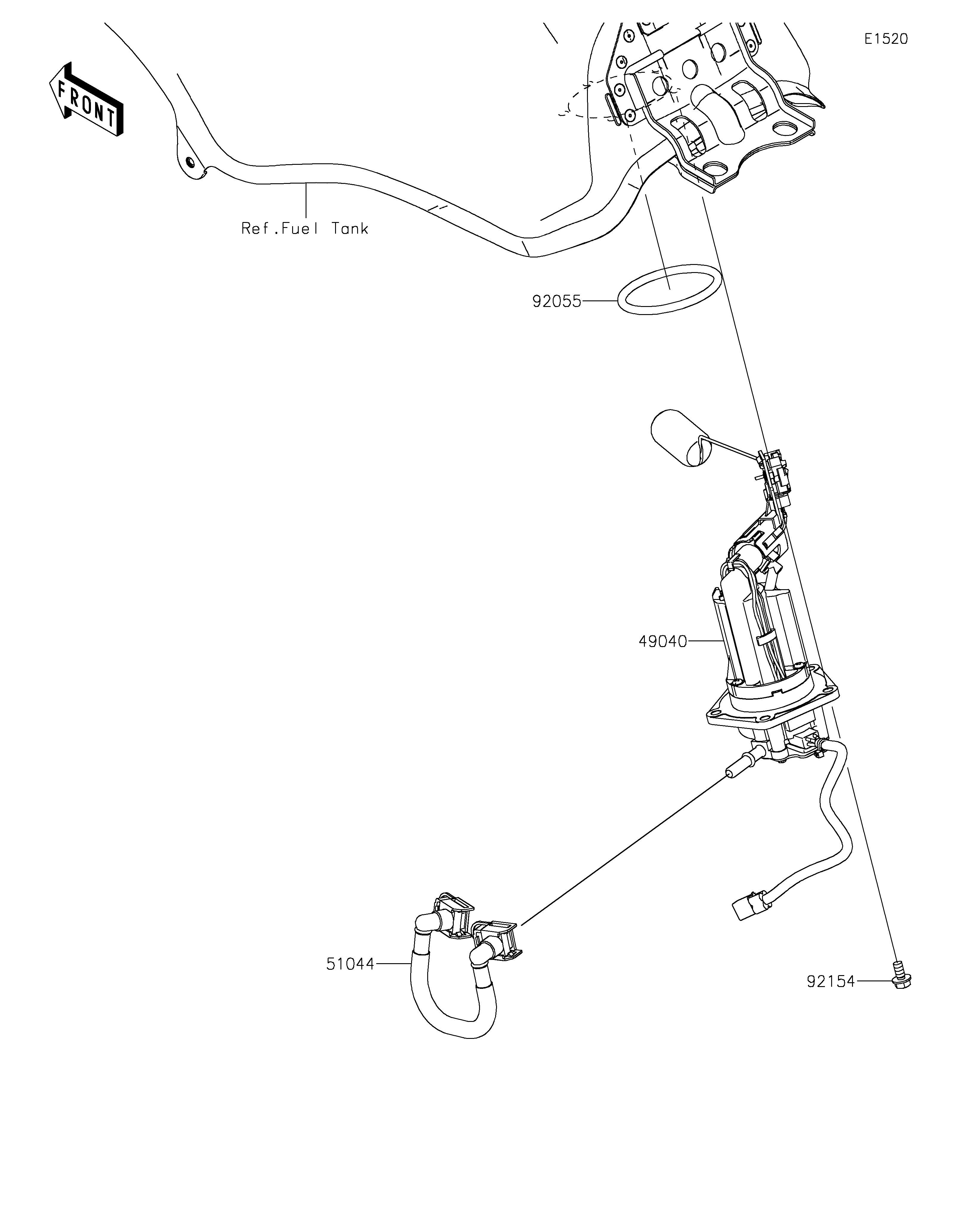

49040
51044
92055
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-FUEL 49040 49040-0799 1
TUBE-ASSY,FUEL 51044 51044-0961 1
RING-O,64.6X5.7 92055 92055-0185 1
BOLT,FLANGED,6X12 92154 92154-1848 5
