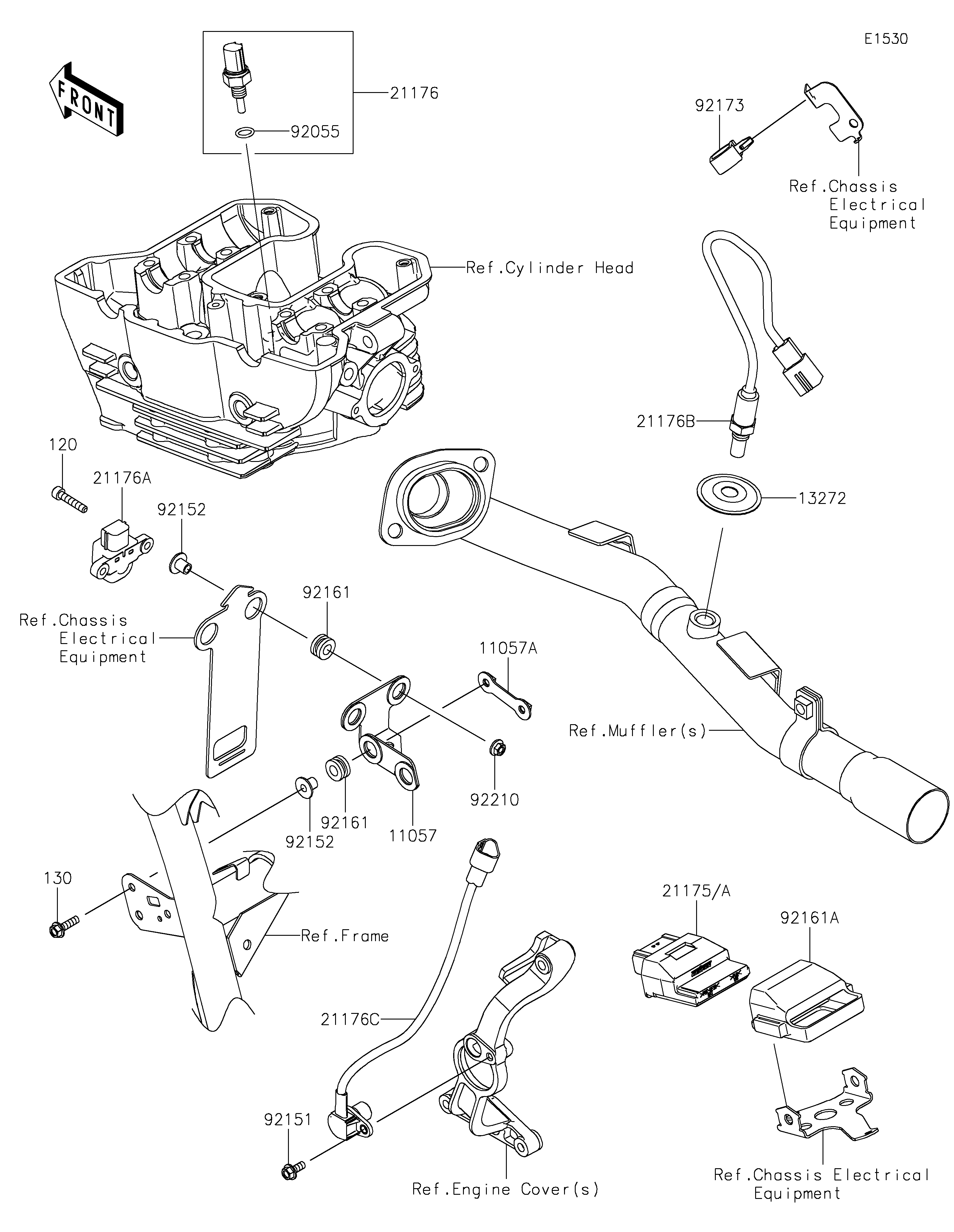

2022 KLR®650 Adventure - Fuel Injection
11057
11057A
13272
21175
21175A
21176
21176A
21176B
21176C
92055
92151
92152
92152
92161
92161
92161A
92173
92210
120
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,VEHICLE DOWN SENSOR | 11057 | 11057-7429 | 1 | ||
| BRACKET | 11057A | 11057-7434 | 1 | ||
| PLATE,O2 SENSOR | 13272 | 13272-3888 | 1 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-1665 | 1 | CN,US | |
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-1666 | 1 | CA | |
| SENSOR,WATER TEMP | 21176 | 21176-0009 | 1 | ||
| SENSOR,VEHICLE-DOWN | 21176A | 21176-0067 | 1 | ||
| SENSOR,OXYGEN | 21176B | 21176-0993 | 1 | ||
| SENSOR,SPEED SENSOR | 21176C | 21176-0996 | 1 | ||
| RING-O,9.5X1.9 | 92055 | 92055-0016 | 1 | ||
| BOLT,FLANGED,5X12 | 92151 | 92151-1305 | 1 | ||
| COLLAR | 92152 | 92152-1592 | 4 | ||
| DAMPER,8X16X8.6 | 92161 | 92161-0685 | 4 | ||
| DAMPER,ECU | 92161A | 92161-2358 | 1 | ||
| CLAMP | 92173 | 92173-2462 | 1 | ||
| NUT,FLANGED,5MM | 92210 | 92210-0007 | 2 | ||
| BOLT-SOCKET,5X25 | 120 | 120CA0525 | 2 | ||
| BOLT-FLANGED,5X18 | 130 | 130BB0518 | 2 |
| BRACKET,VEHICLE DOWN SENSOR | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET | |
| REF # | 11057A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,O2 SENSOR | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN,US |
| REMARKS | |
| CONTROL UNIT-ELECTRONIC | |
| REF # | 21175A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SENSOR,WATER TEMP | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,VEHICLE-DOWN | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,OXYGEN | |
| REF # | 21176B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,SPEED SENSOR | |
| REF # | 21176C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,9.5X1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,5X12 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X16X8.6 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,ECU | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,5X25 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X18 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
