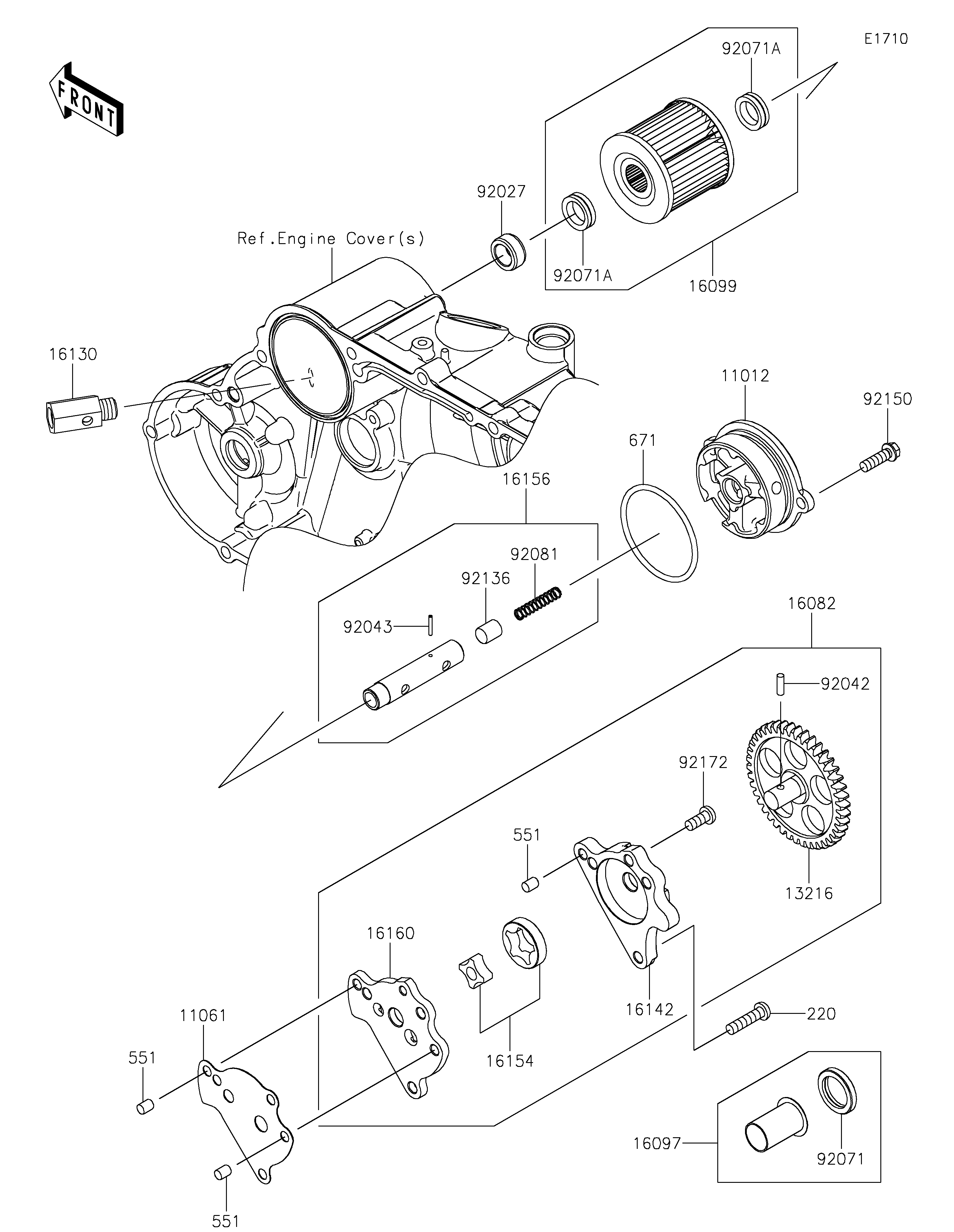

2022 KLR®650 Adventure - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
11012
11061
13216
16082
16097
16099
16130
16142
16154
16156
16160
92027
92042
92043
92071
92071A
92071A
92081
92136
92150
92172
220
551
551
551
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,OIL FILTER 11012 11012-1538 1
GASKET,OIL PUMP 11061 11061-0430 1
GEAR-COMP,OIL PUMP 13216 13216-1146 1
PUMP-ASSY-OIL 16082 16082-1088 1
FILTER-ASSY-OIL 16097 16097-1001 1
ELEMENT-OIL FILTER 16099 16099-004 1
VALVE-ASSY-RELIEF 16130 16130-1063 1
COVER-PUMP 16142 16142-1078 1
ROTOR-PUMP 16154 16154-1008 1
PISTON-ASSY,VALVE,BY-PASS 16156 16156-002 1
BODY 16160 16160-1137 1
COLLAR,13X20X9 92027 92027-1695 1
PIN,DOWEL,4X12.8 92042 92042-041 1
PIN,SPRING,2.2X13.5 92043 92043-123 1
GROMMET,OIL STRAINER 92071 92071-100 1
GROMMET,OIL FILTER 92071A 92071-101 2
SPRING,PISTON 92081 92081-043 1
VALVE 92136 92136-002 1
BOLT,6X20 92150 92150-1010 2
SCREW,6X14 92172 92172-0273 1
SCREW-PAN-CROS,6X25 220 220AA0625 3
PIN-DOWEL,6X8 551 551A0608 3
O RING,55MM 671 671B2555 1
