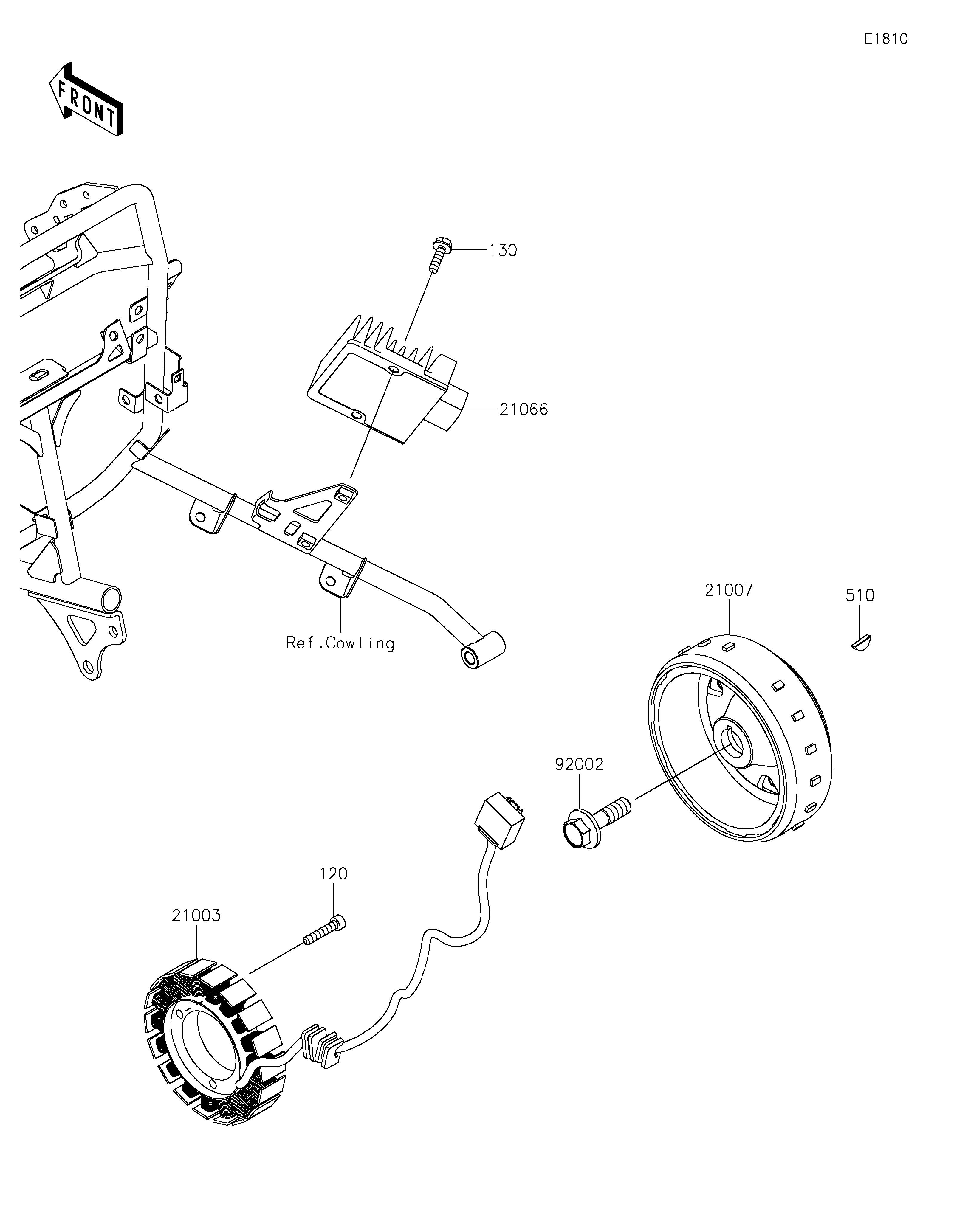

21003
21007
21066
92002
120
130
510
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-0208 1
ROTOR 21007 21007-0708 1
REGULATOR-VOLTAGE 21066 21066-0761 1
BOLT,FLANGED,12X40 92002 92002-1693 1
BOLT-SOCKET,6X30 120 120CA0630 3
BOLT-FLANGED,6X20 130 130BA0620 2
KEY-WOODRUFF 510 510A4200 1
