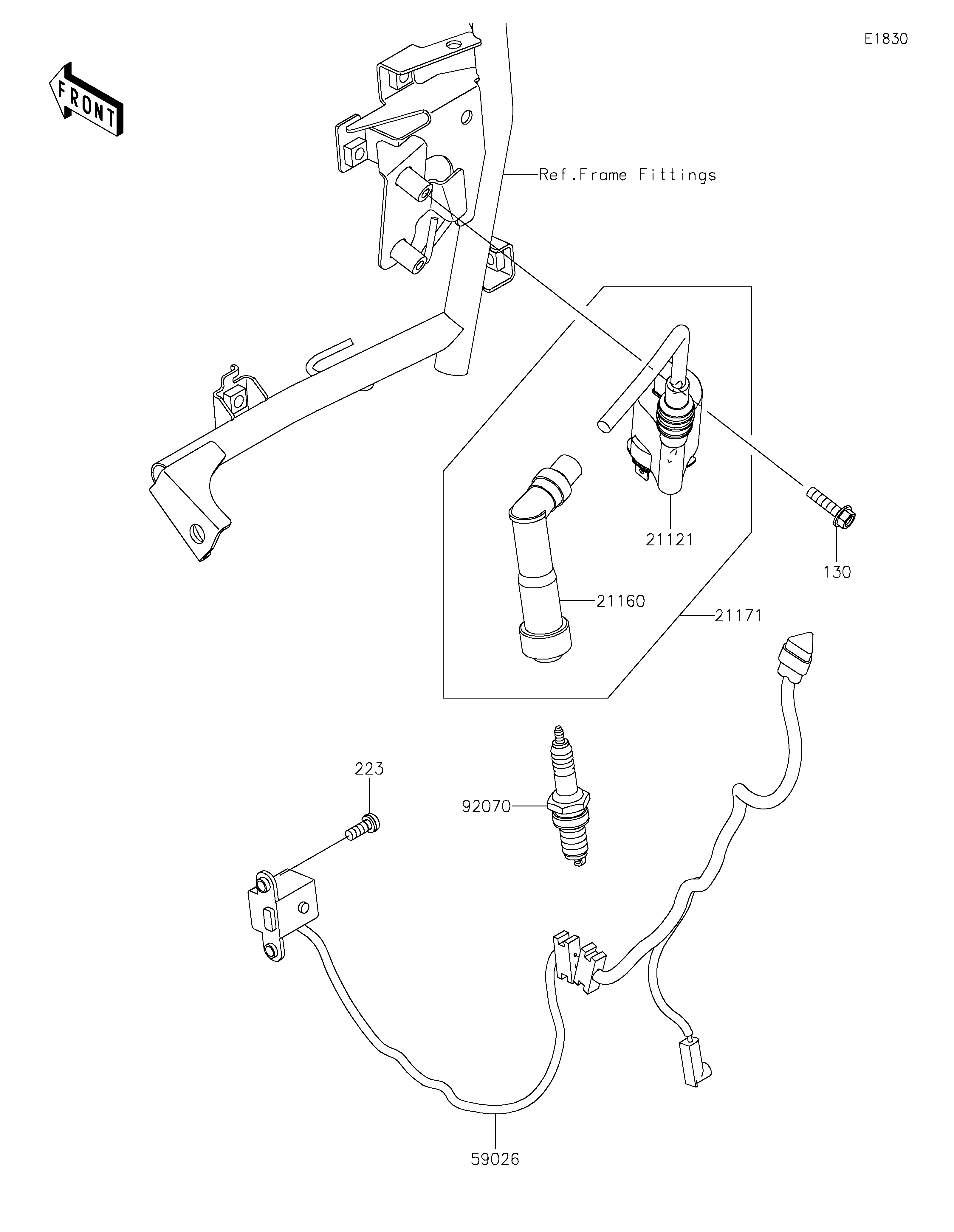

21121
21160
21171
59026
92070
130
223
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-0740 1
CAP-ASSY-PLUG 21160 21160-0019 1
COIL-ASSY-IGNITION 21171 21171-0789 1
COIL-PULSING 59026 59026-0563 1
PLUG-SPARK,DPR8EA-9(NGK) 92070 92070-1065 1
BOLT-FLANGED,5X20 130 130BA0520 2
SCREW-PAN-WS-CROS,5X14 223 223AA0514 2
