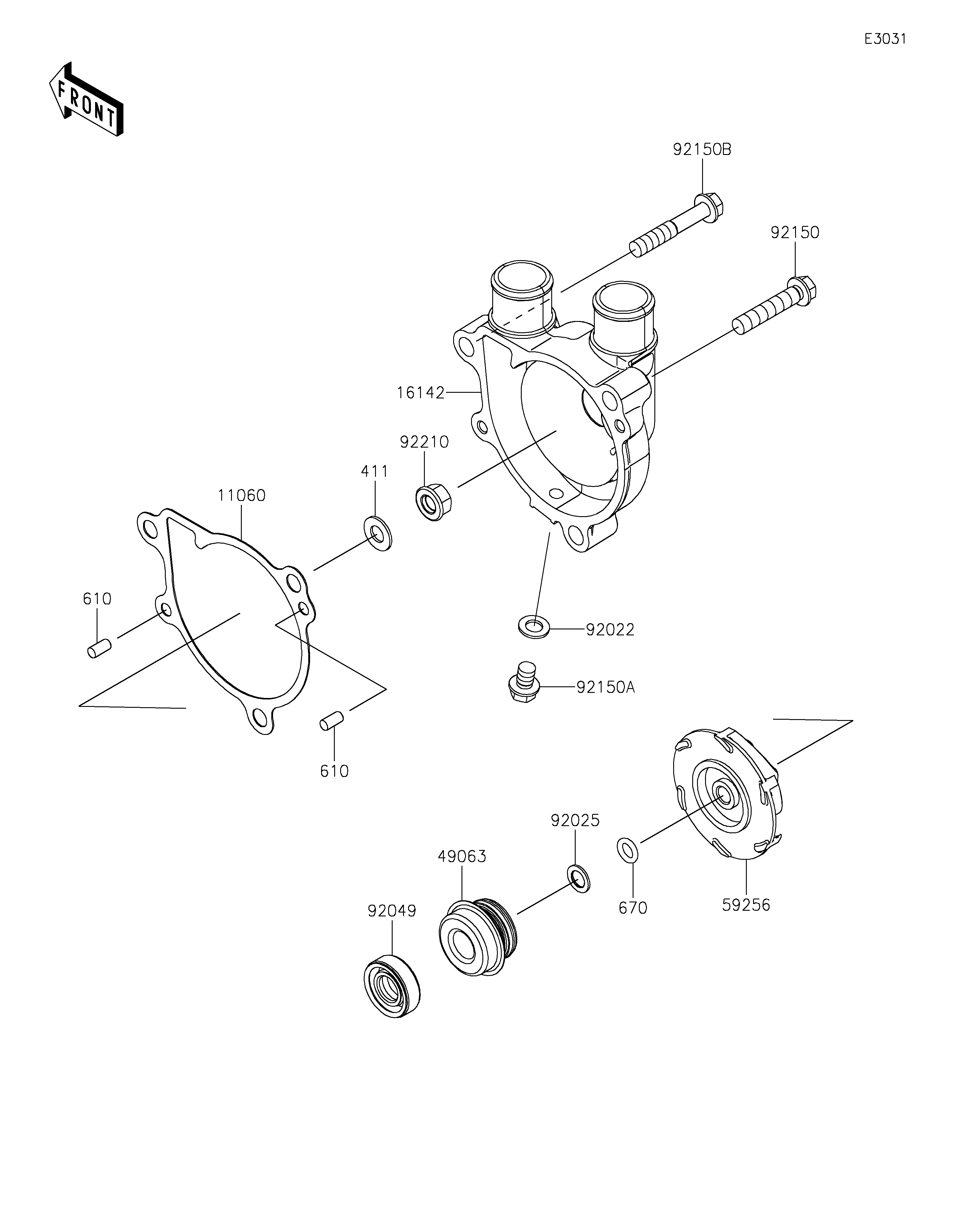

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,WATER PUMP COVER 11060 11060-1114 1
COVER-PUMP 16142 16142-0067 1
SEAL-MECHANICAL 49063 49063-0002 1
IMPELLER 59256 59256-1055 1
WASHER,6.2X11X1 92022 92022-304 1
SHIM,T=0.8 92025 92025-1503 1
SEAL-OIL,SC10227 92049 92049-1157 1
BOLT,6X30 92150 92150-1021 2
BOLT,6X8 92150A 92150-1966 1
BOLT,6X35 92150B 92150-1967 1
NUT,FLANGED,6MM 92210 92210-0630 1
WASHER-PLAIN,6MM 411 411AB0600 1
ROLLER,4X8 610 610A0408 2
O RING,6MM 670 670B1506 1
