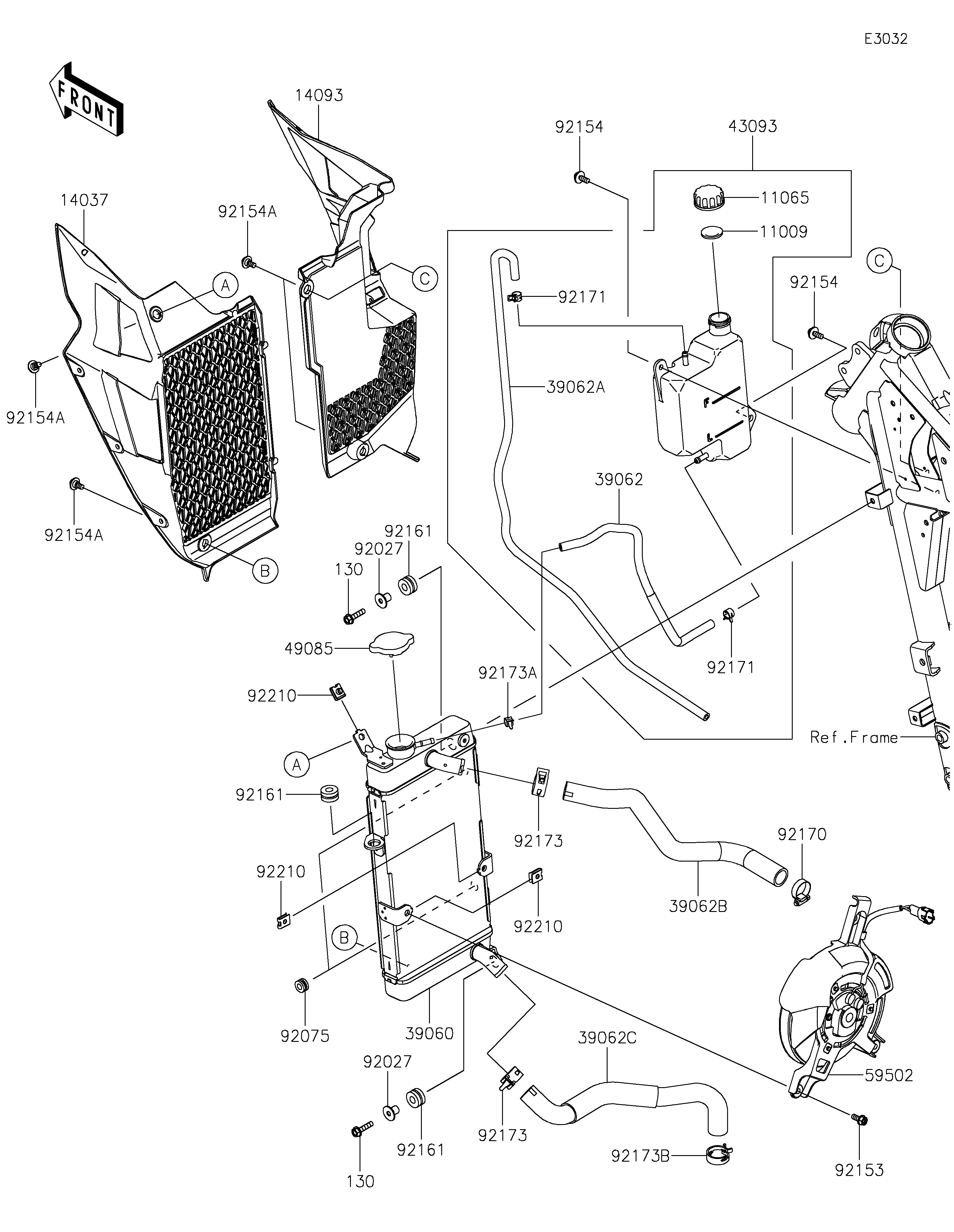

2022 KLR®650 Adventure - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11065
14037
14093
39060
39062
39062A
39062B
39062C
43093
49085
59502
92027
92027
92075
92153
92154
92154
92154A
92154A
92154A
92161
92161
92161
92170
92171
92171
92173
92173
92173A
92173B
92210
92210
92210
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11065 11065-0969 1
SCREEN,RADIATOR 14037 14037-0821 1
COVER,RH 14093 14093-1070 1
RADIATOR 39060 39060-0744 1
HOSE-COOLING,RAD-RESERVOIR 39062 39062-0922 1
HOSE-COOLING,OVERFLOW 39062A 39062-0923 1
HOSE-COOLING,HEAD-RADIATOR 39062B 39062-0924 1
HOSE-COOLING,W/PUMP-RADIATOR 39062C 39062-0925 1
RESERVOIR-ASSY-TANK 43093 43093-0010 1
CAP-ASSY-PRESSURE 49085 49085-0006 1
FAN-ASSY 59502 59502-0632 1
COLLAR,6.5X10X14.1 92027 92027-1183 2
DAMPER 92075 92075-1912 2
BOLT 92153 92153-0531 3
BOLT,6X16 92154 92154-0391 2
BOLT,FLANGED,6X9 92154A 92154-0546 4
DAMPER 92161 92161-1755 3
CLAMP,COOLING HOSE 92170 92170-1033 1
CLAMP,10.5X8X0.7 92171 92171-1992 2
CLAMP 92173 92173-1567 2
CLAMP 92173A 92173-2425 1
CLAMP 92173B 92173-2459 1
NUT 92210 92210-1323 3
BOLT-FLANGED,6X25 130 130BA0625 2
