Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
32160
39156
39156A
55020
92015
92015A
92015A
92027
92027
92049
92049A
92066
92116
92116A
92161
92161
92200
92200A
92200A
92210
132
132

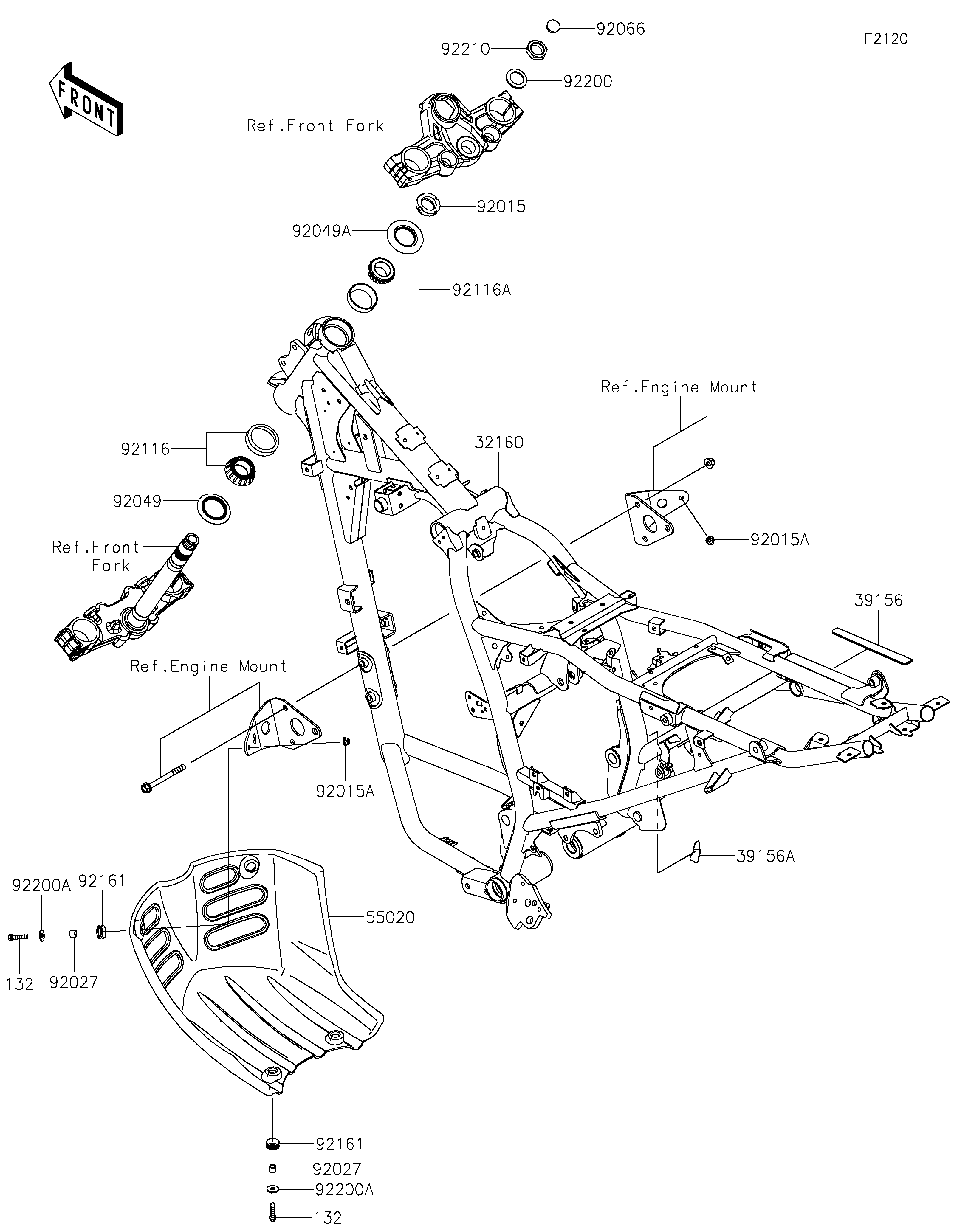

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,F.S.BLACK | 32160 | 32160-1906-18R | 1 | ||
| PAD,RH | 39156 | 39156-2775 | 1 | ||
| PAD | 39156A | 39156-2794 | 1 | ||
| GUARD,ENGINE,F.BLACK | 55020 | 55020-2372-6Z | 1 | ||
| NUT,25MM,T=12 | 92015 | 92015-1546 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015A | 92015-1603 | 2 | ||
| COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 4 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| SEAL-OIL,STEERING STEM | 92049A | 92049-1214 | 1 | ||
| PLUG | 92066 | 92066-1306 | 1 | ||
| BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BEARING-ROLLER,HICAP 32005JR | 92116A | 92116-1052 | 1 | ||
| DAMPER,10X20X8 | 92161 | 92161-1828 | 4 | ||
| WASHER,STEERING STEM | 92200 | 92200-0517 | 1 | ||
| WASHER,6.5X18X1.6 | 92200A | 92200-0766 | 4 | ||
| NUT,STEERING STEM,22MM | 92210 | 92210-1521 | 1 | ||
| BOLT-FLANGED-SMALL,6X25 | 132 | 132BB0625 | 4 |
| FRAME-COMP,F.S.BLACK | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,RH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE,F.BLACK | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=12 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X8.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,STEERING STEM | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HICAP 32005JR | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X20X8 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,STEERING STEM | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X18X1.6 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM,22MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X25 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
