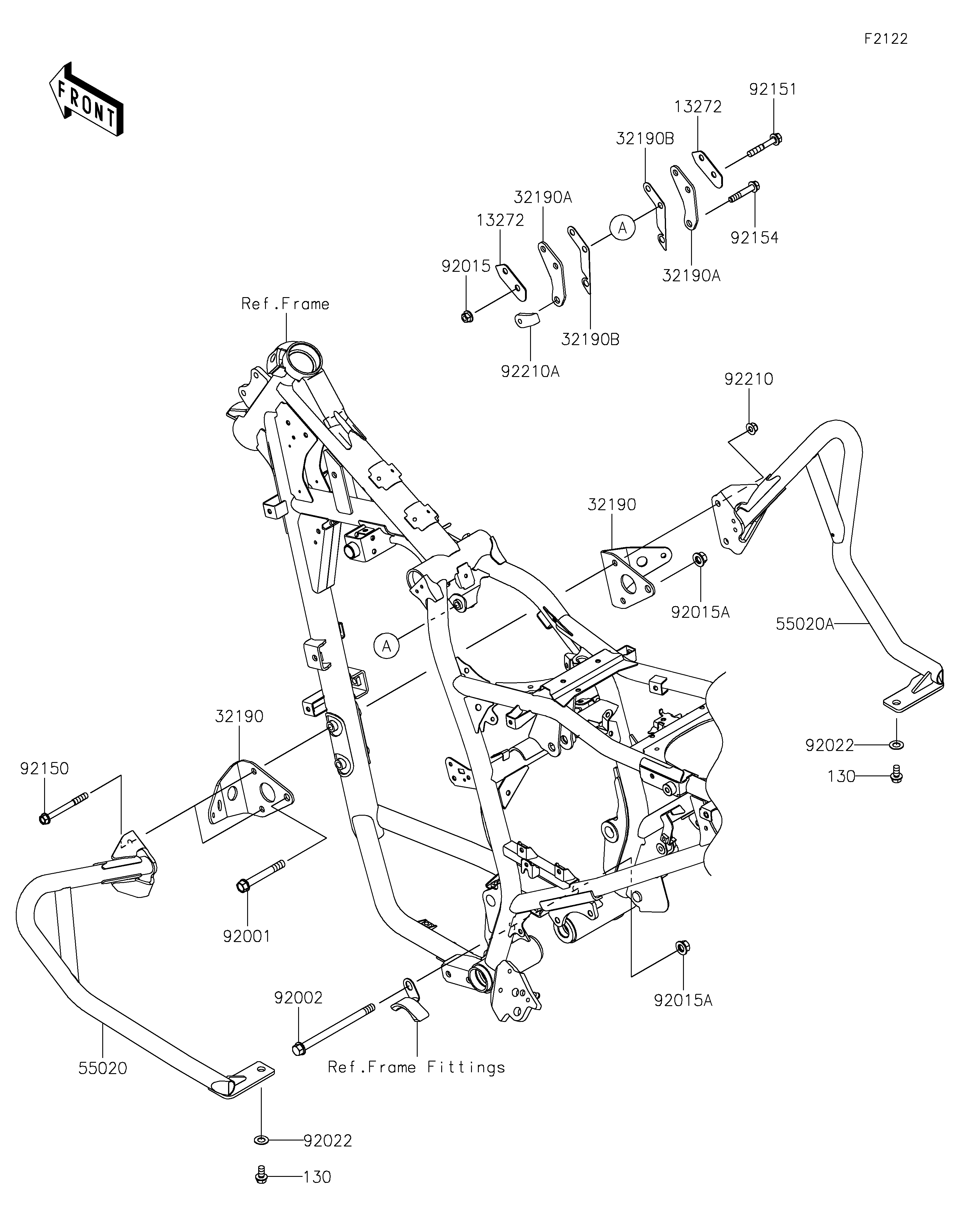

2022 KLR®650 Adventure - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
13272
13272
32190
32190
32190A
32190A
32190B
32190B
55020
55020A
92001
92002
92015
92015A
92015A
92022
92022
92150
92151
92154
92210
92210A
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-3910 2
BRACKET-ENGINE,LWR 32190 32190-0858 2
BRACKET-ENGINE,UPP 32190A 32190-0859 2
BRACKET-ENGINE 32190B 32190-0860 2
GUARD,LH 55020 55020-2341 1
GUARD,RH 55020A 55020-2342 1
BOLT,10X75 92001 92001-4021 1
BOLT,10X145 92002 92002-1348 1
NUT,FLANGED,8MM 92015 92015-1406 2
NUT,FLANGED,10MM 92015A 92015-1415 2
WASHER,10.5X20X1 92022 92022-239 2
BOLT,8X80 92150 92150-1162 2
BOLT,8X50 92151 92151-1463 2
BOLT,FLANGED,8X45 92154 92154-3733 1
NUT,FLANGED,LOCK,8MM 92210 92210-0159 2
NUT,PLATE,8MM 92210A 92210-0608 1
BOLT-FLANGED,8X16 130 130CA0816 2
