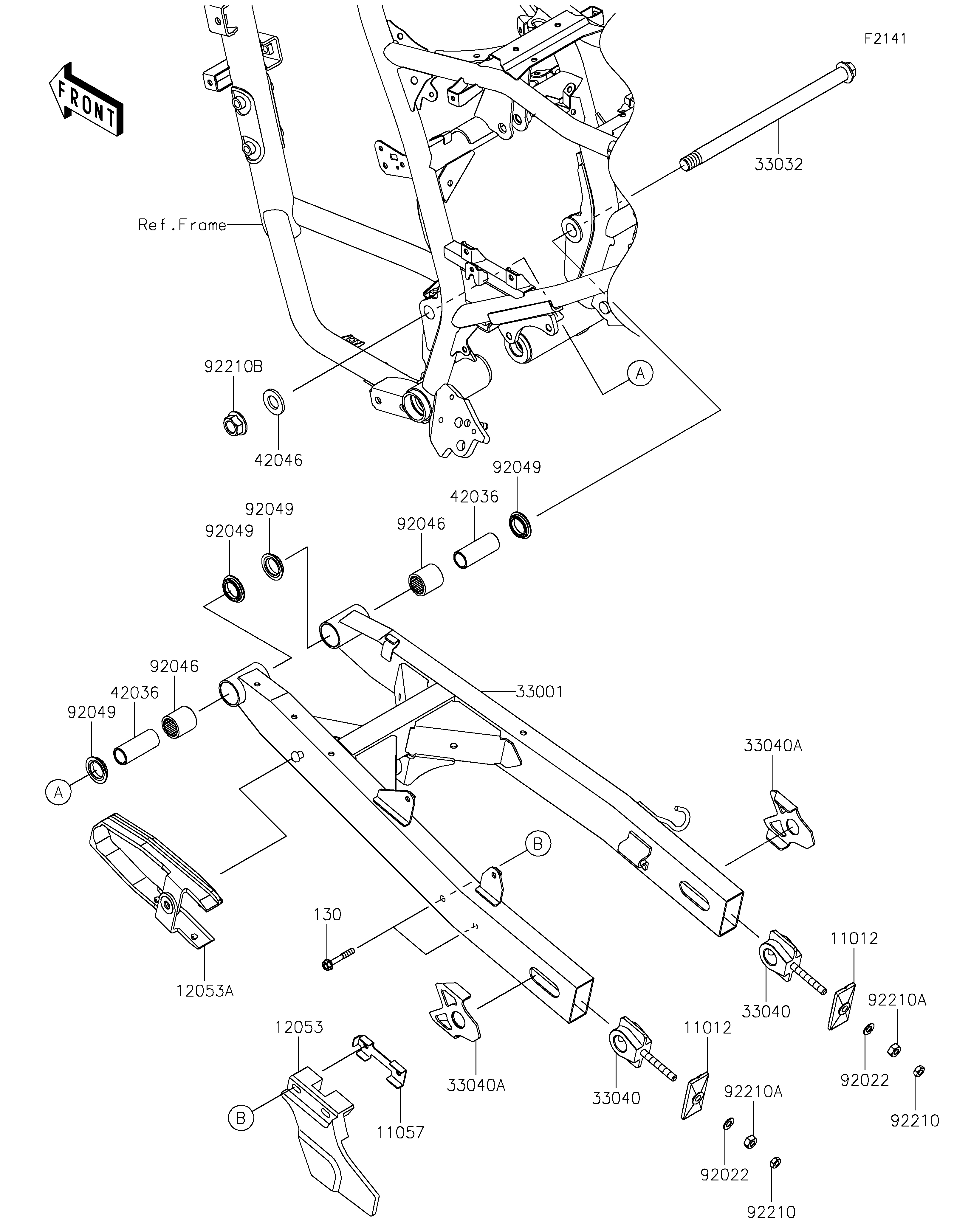

2022 KLR®650 Adventure - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11057
12053
12053A
33001
33032
33040
33040
33040A
33040A
42036
42036
42046
92022
92022
92046
92046
92049
92049
92049
92049
92210
92210
92210A
92210A
92210B
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAIN ADJUSTER,F.S.BLACK 11012 11012-1871-18R 2
BRACKET,CHAIN GUIDE 11057 11057-7405 1
GUIDE-CHAIN,RR 12053 12053-0222 1
GUIDE-CHAIN,FR 12053A 12053-0313 1
ARM-COMP-SWING,F.S.BLACK 33001 33001-0733-18R 1
SHAFT-SWING ARM 33032 33032-0066 1
ADJUSTER-CHAIN 33040 33040-0098 2
ADJUSTER-CHAIN,F.S.BLACK 33040A 33040-0099-18R 2
SLEEVE,17.1X22X55.5 42036 42036-0859 2
WASHER,17.3X32X3.2 42046 42046-009 1
WASHER,8.5X16X1.2 92022 92022-1582 2
BEARING-NEEDLE,TA2230Z 92046 92046-1174 2
SEAL-OIL,MHA22X29X5.7F 92049 92049-1289 4
NUT,8MM,5X12 92210 92210-1588 2
NUT,8MM,6.5X14 92210A 92210-1589 2
NUT,FLANGED,16MM 92210B 92210-1817 1
BOLT-FLANGED,6X40 130 130BA0640 2
