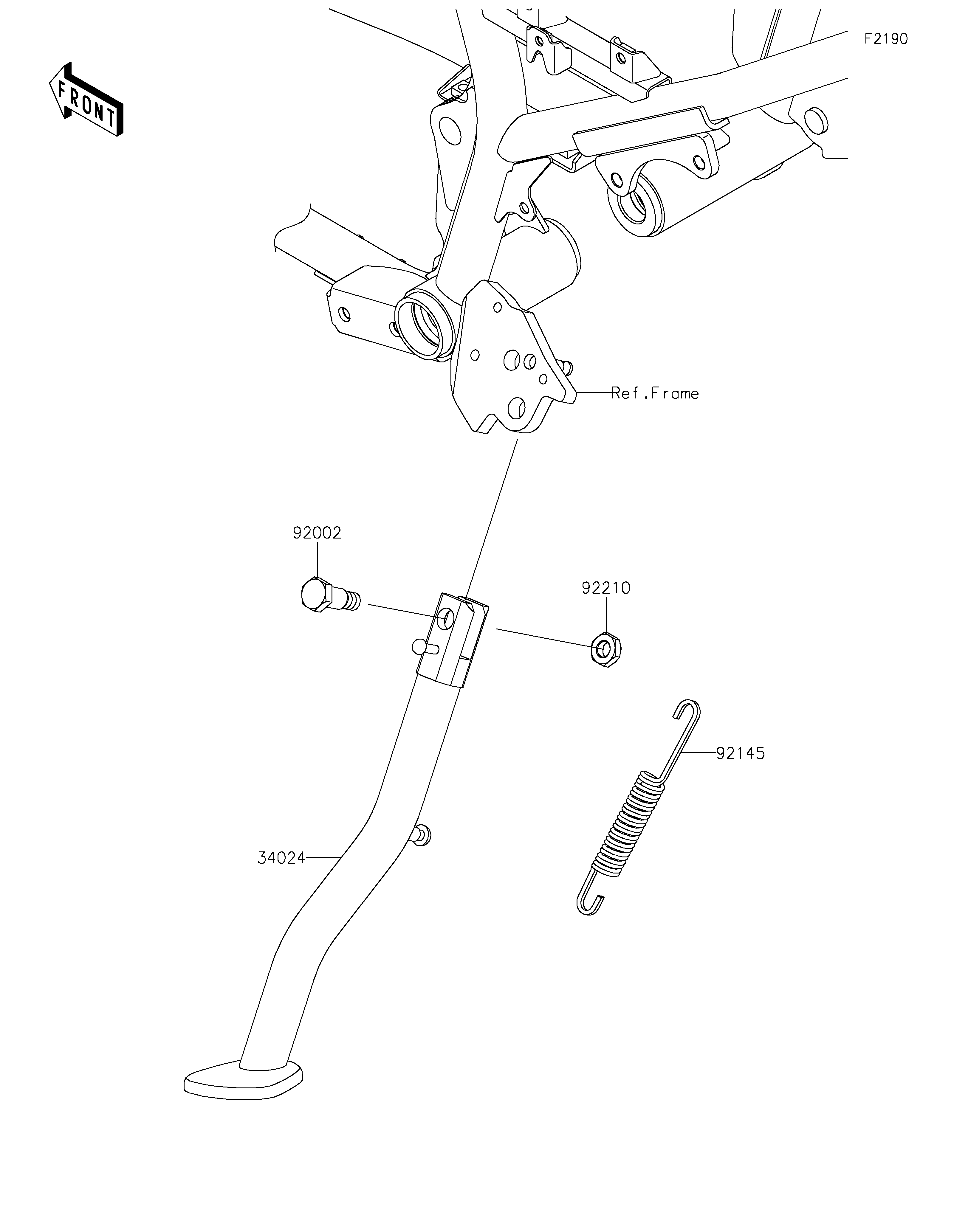

34024
92002
92145
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE,F.S.BLACK 34024 34024-0171-18R 1
BOLT,SIDE STAND 92002 92002-1813 1
SPRING,SIDE STAND 92145 92145-0085 1
NUT,LOCK,10MM 92210 92210-1184 1
