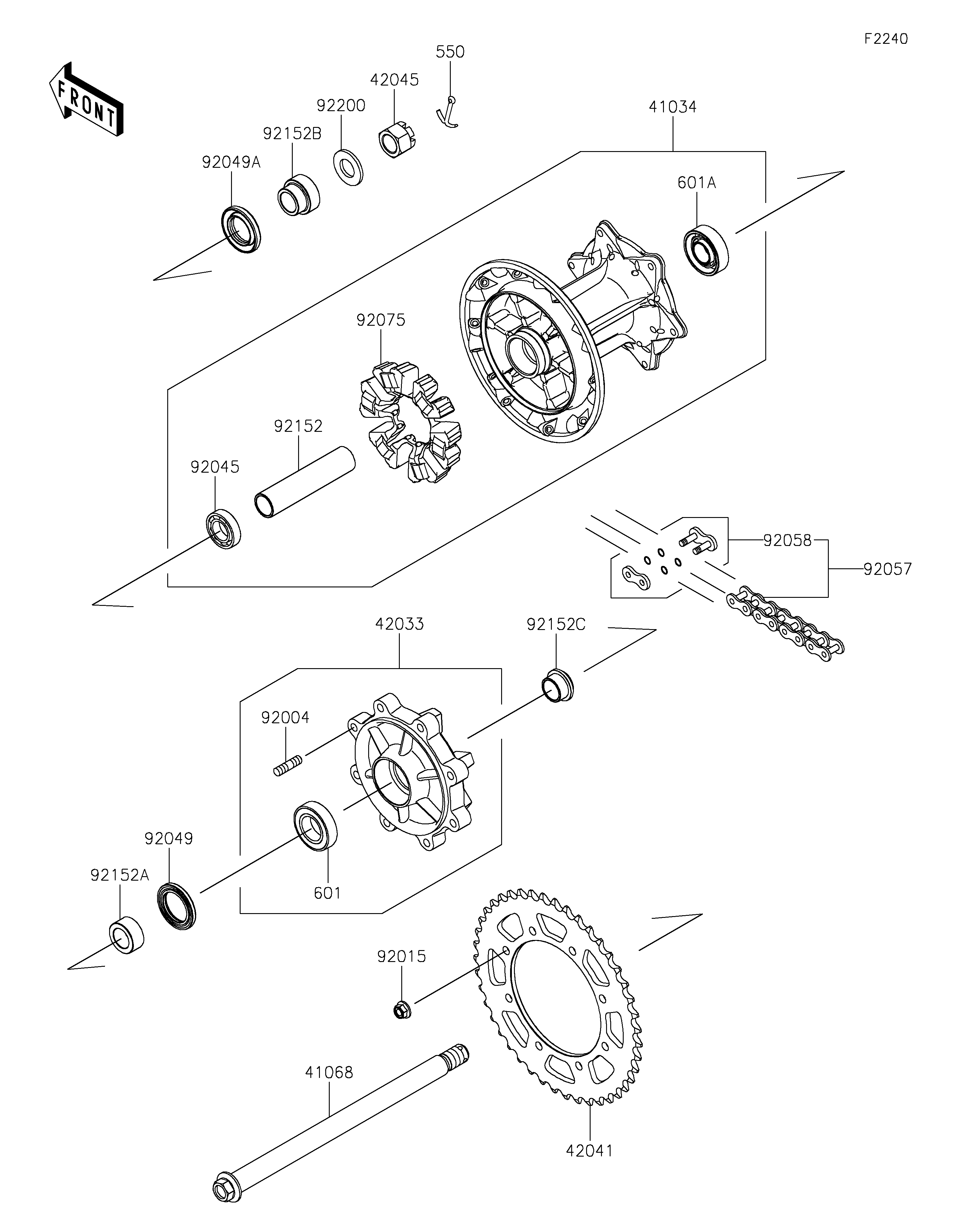

2022 KLR®650 Adventure - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
41034
41068
42033
42041
42045
92004
92015
92045
92049
92049A
92057
92058
92075
92152
92152A
92152B
92152C
92200
550
601
601A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,RR 41034 41034-0609 1
AXLE,RR 41068 41068-0659 1
COUPLING-ASSY,REAR HUB 42033 42033-0596 1
SPROCKET-HUB,43T 42041 42041-0185 1
NUT,CASTLE,18MM 42045 42045-018 1
STUD,8X16 92004 92004-1150 8
NUT,8MM 92015 92015-1432 8
BEARING-BALL,20X37X9 92045 92045-0942 1
SEAL-OIL,32X47X5 92049 92049-0795 1
SEAL-OIL,27X47X7 92049A 92049-0802 1
CHAIN,DRIVE,520VEX110L 92057 92057-0806 1
JOINT-CHAIN 92058 92058-0044 1
DAMPER,SHOCK,RR HUB 92075 92075-1068 1
COLLAR,20.2X28X110.5 92152 92152-2735 1
COLLAR,LH 92152A 92152-2736 1
COLLAR,RH 92152B 92152-2737 1
COLLAR,COUPLING 92152C 92152-2738 1
WASHER,19X36X3.2 92200 92200-0296 1
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL,#6005UU 601 601B6005UU 1
BEARING-BALL,#6204UG 601A 601B6204UG 1
