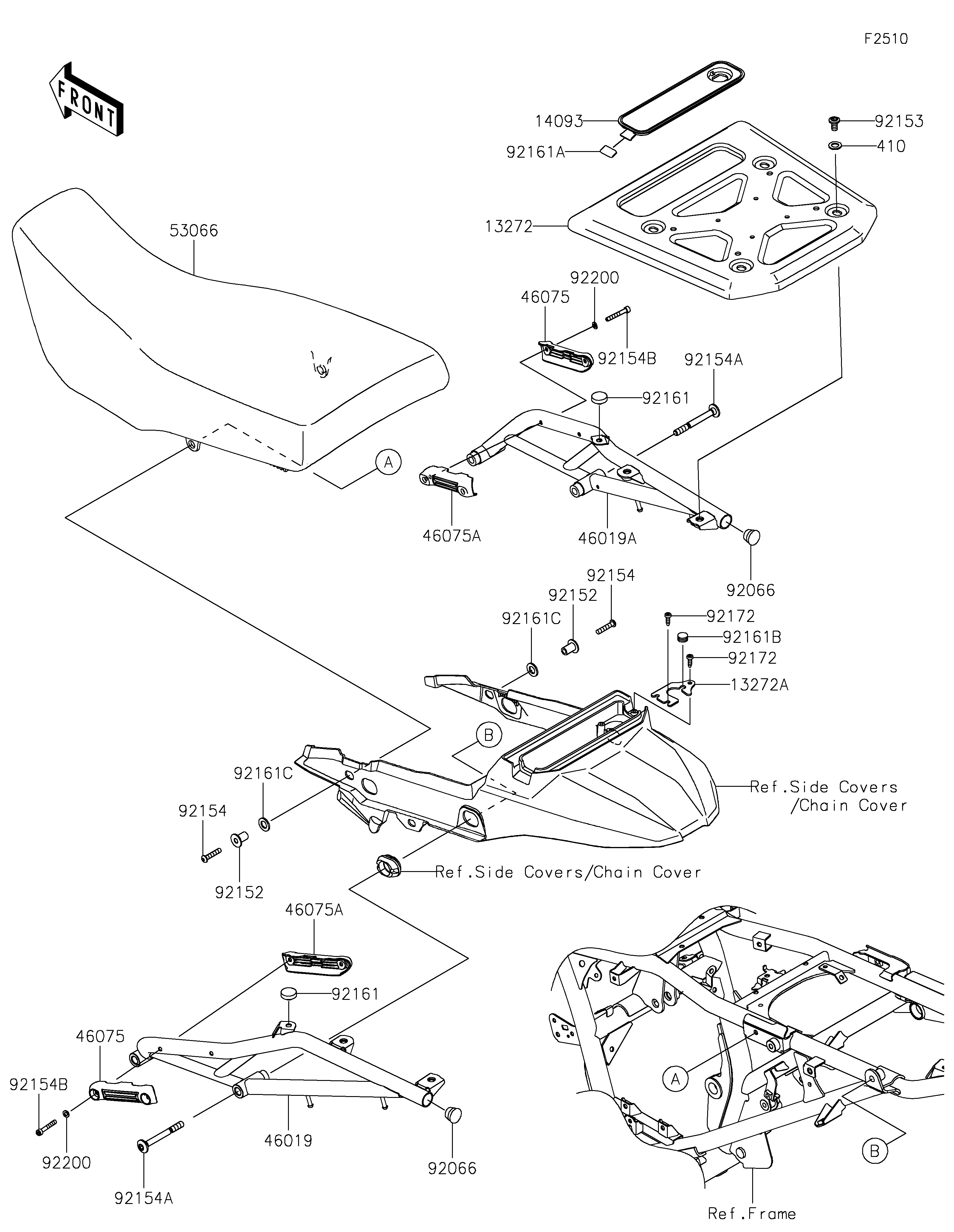

2022 KLR®650 Adventure - Seat

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
14093
46019
46019A
46075
46075
46075A
46075A
53066
92066
92066
92152
92152
92153
92154
92154
92154A
92154A
92154B
92154B
92161
92161
92161A
92161B
92161C
92161C
92172
92172
92200
92200
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,CARRIER 13272 13272-3763 1
PLATE 13272A 13272-3872 1
COVER,TOOL 14093 14093-1079 1
GRIP-ASSY,LH 46019 46019-0107 1
GRIP-ASSY,RH 46019A 46019-0108 1
GRIP,OUTSIDE 46075 46075-0659 2
GRIP,INSIDE 46075A 46075-0660 2
SEAT-ASSY,DUAL,BLACK+SIL 53066 53066-0703-64U 1
PLUG 92066 92066-1220 2
COLLAR 92152 92152-2823 2
BOLT,SOCKET,8X15 92153 92153-1810 4
BOLT,SOCKET,6X30 92154 92154-0206 2
BOLT,SOCKET,8X78 92154A 92154-4346 4
BOLT,SOCKET,5X35 92154B 92154-4350 4
DAMPER 92161 92161-0336 2
DAMPER,12X23 92161A 92161-1367 1
DAMPER,8X14X8.9 92161B 92161-1666 1
DAMPER 92161C 92161-2425 2
SCREW,TAPPING,5X16 92172 92172-1425 3
WASHER,5.5X10X1.2 92200 92200-2495 4
WASHER-PLAIN-SMALL,10MM 410 410AA1000 4
