54011
54012
54012A
92173
92173A
92173B
92173B
92173C
92173D
120
130
130A
130A

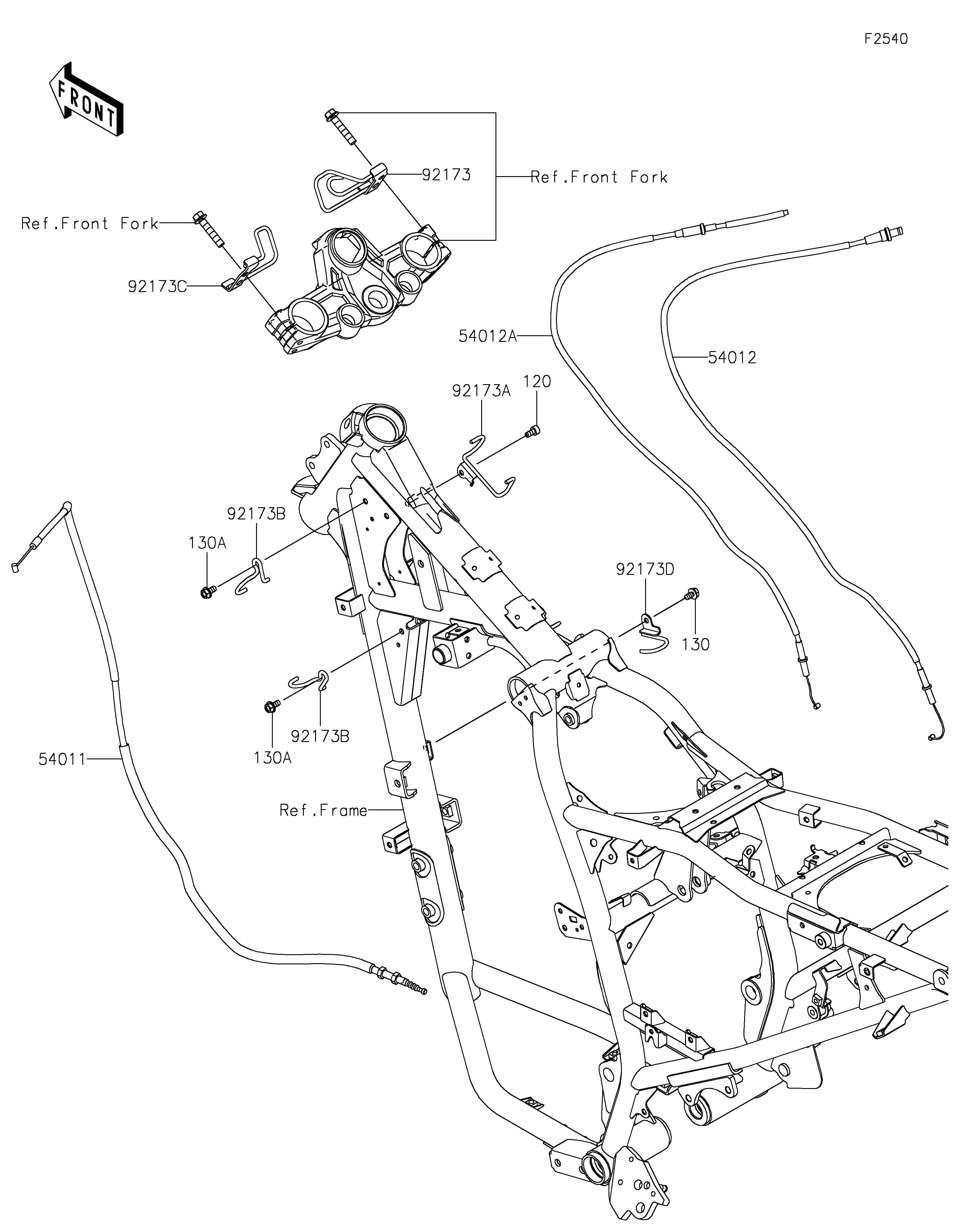

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-CLUTCH 54011 54011-0655 1
CABLE-THROTTLE,PULL 54012 54012-0717 1
CABLE-THROTTLE,RETURN 54012A 54012-0718 1
CLAMP,UPP BRACKET,RH 92173 92173-2354 1
CLAMP,THROTTLE CABLE 92173A 92173-2356 1
CLAMP,CLUTCH CABLE 92173B 92173-2358 2
CLAMP,UPP BRACKET,LH 92173C 92173-2396 1
CLAMP,CLUTCH CABLE 92173D 92173-2398 1
BOLT-SOCKET,6X12 120 120CA0612 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X12 130A 130BA0612 2
