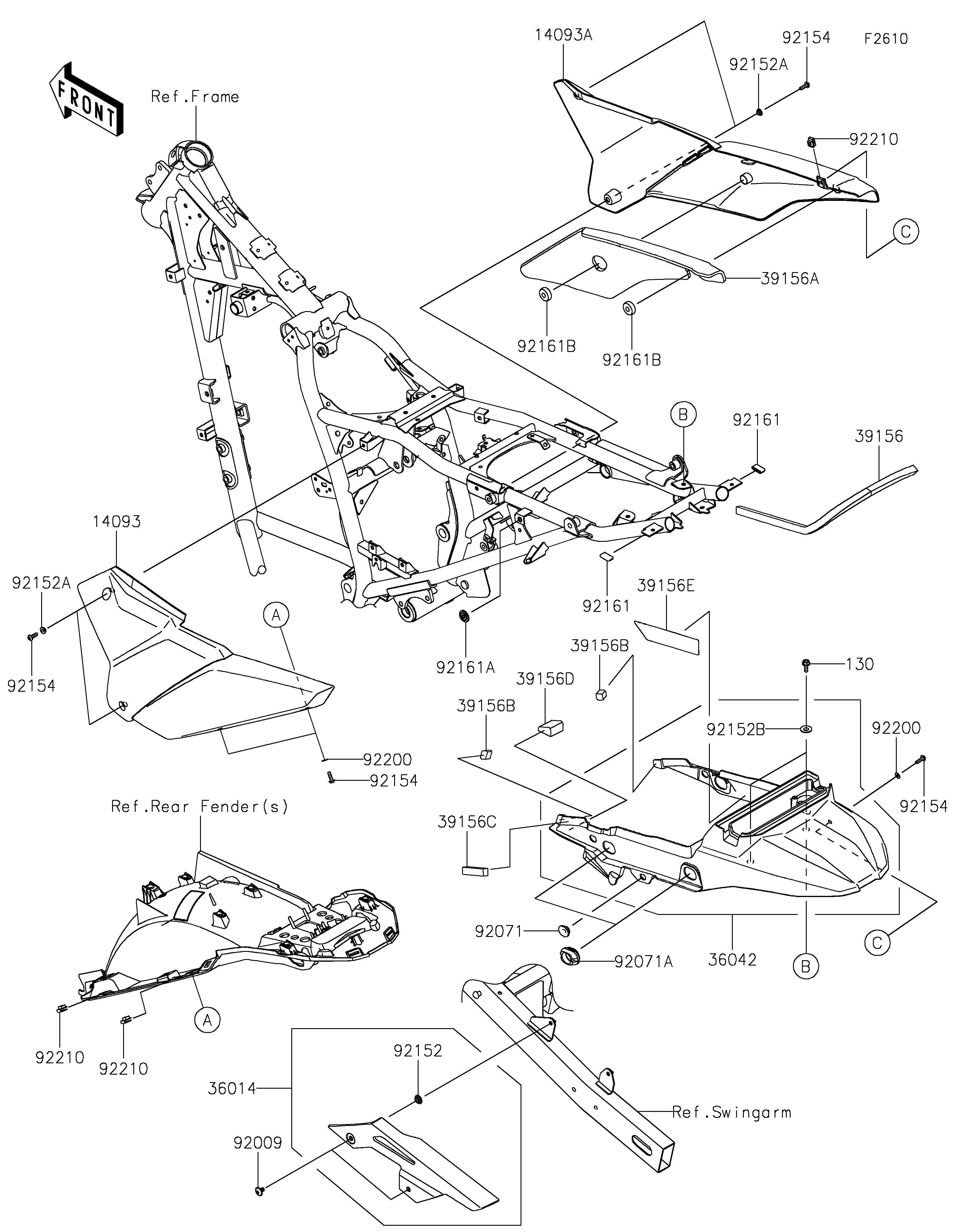

2022 KLR®650 Adventure - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
36014
36042
39156
39156A
39156B
39156B
39156C
39156D
39156E
92009
92071
92071A
92152
92152A
92152A
92152B
92154
92154
92154
92154
92161
92161
92161A
92161B
92161B
92200
92200
92210
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,LH,BLACK 14093 14093-1275-6Z 1
COVER,SIDE,RH,BLACK 14093A 14093-1276-6Z 1
CASE-CHAIN 36014 36014-0044 1
COVER-TAIL,BLACK 36042 36042-0015-6Z 1
PAD,10X13X440 39156 39156-2663 1
PAD,SIDE COVER,RH 39156A 39156-2682 1
PAD 39156B 39156-2750 2
PAD,10X13X62 39156C 39156-2763 1
PAD 39156D 39156-2764 1
PAD,TAIL COVER 39156E 39156-2780 1
SCREW,6X10 92009 92009-1729 2
GROMMET,20X24X7.5 92071 92071-0766 1
GROMMET,26.4X42.4X15.8 92071A 92071-0772 4
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR 92152A 92152-2903 4
COLLAR 92152B 92152-2907 2
BOLT,SOCKET,5X16 92154 92154-0182 7
DAMPER,12X23 92161 92161-1367 2
DAMPER,8X22X10 92161A 92161-1685 1
DAMPER 92161B 92161-2090 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 3
NUT,PLATE,5MM 92210 92210-0935 3
BOLT-FLANGED,6X16 130 130BA0616 2
